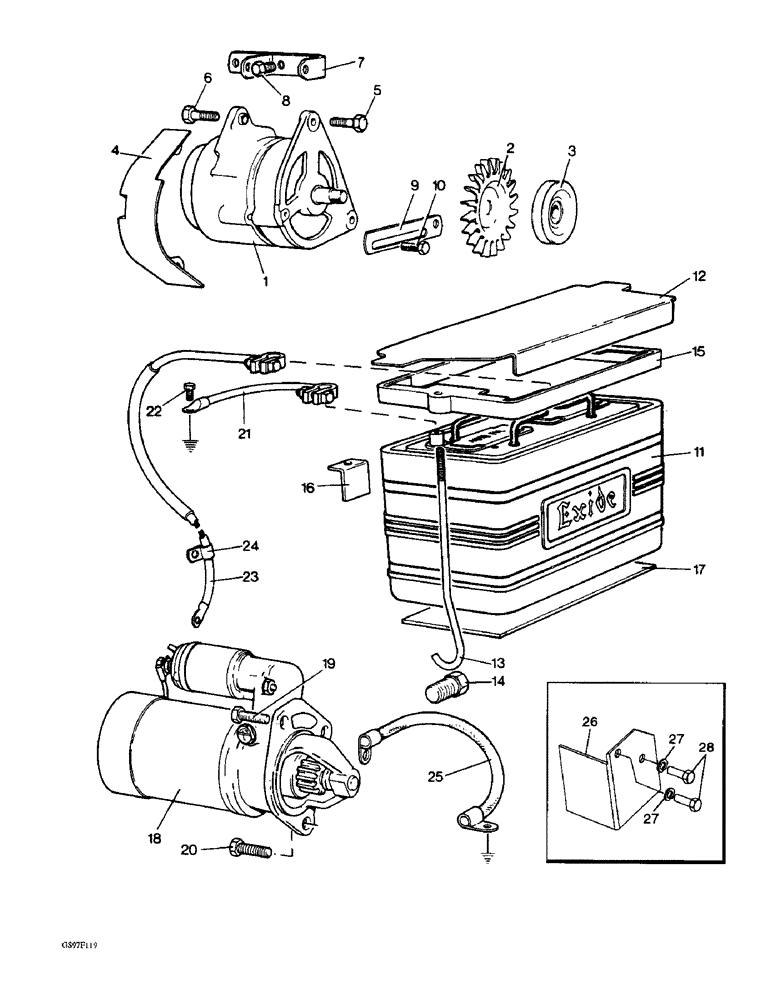

Запчасти Case IH 885 (4-22) - ALTERNATOR, BATTERY AND STARTER (04) - ELECTRICAL SYSTEMS

1

K925009

ALTERNATOR

ALTERNATOR - Lucas 23700F, no longer available, order alternator 92293C1, Ref. 1, pulley K311701, Ref. 3 and bolt 614-8020, Ref. 1A

1шт.

1

92293C1

ALTERNATOR

ALTERNATOR - Lucas (Replaces alternator K925009)

1шт.

1

92293C1R

REMAN-ALTERNATOR

Reman For New PN 92293C1

1шт.

1

92293C1C

CORE-ALTERNATOR

Return Number

1шт.

1

92293C1GV

ALTERNATOR

Value

1шт.

1

K953785

ALTERNATOR

ALTERNATOR ASSEMBLY - AC-Delco 7982952, parts list Fig. 4-24

1шт.

1

K956426

ALTERNATOR

Alternator

1шт.

1

104020A1GV

ALTERNATOR

Value, 12V, 26A

1шт.

1

104020A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 26 AMP Alternator

1шт.

1

104020A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 26 AMP Alternator

1шт.

1

104020A1RGV

ALTERNATOR

REMANUFACTURED 12 VOLT, 26 AMP ALTERNATOR

1шт.

1a

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

BOLT, , Not shown Hex, M8 x 20, 8.8

1шт.

2

K942129

FAN

FAN - Lucas alternator, if used

1шт.

2

K311704

FAN

FAN - alternator, Lucas, if used

1шт.

3

K311701

PULLEY

PULLEY - alternator, Lucas (Replaces pulley K952702)

1шт.

4

K307744

PROTECTIVE COVER

GUARD - alternator fan (Replaces guard K950496

1шт.

5

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

BOLT - hex, 5/16 NC x 1-1/4 inch, alternator to bracket (Replaces bolt K600359)

1шт.

6

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT - hex, 5/16 NC x 1-1/2 inch, alternator to bracket (Replaces bolt K600365)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , alternator to bracket (Replaces washer K19481) 5/16"

2шт.

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC, alternator to bracket (Replaces nut K607001)

2шт.

7

K947375

SUPPORT

BRACKET - support

1шт.

8

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

BOLT, , If used (Replaces bolt K602902) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex, 3/8 NC x 1 inch, if used (Replaces bolt K602904)

1шт.

492-11038

LOCK WASHER,3/8"

LOCK WASHER, (Replaces washer K19482) 3/8"

2шт.

9

K950495

ADJUSTER

STRAP - adjuster

1шт.

10

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

BOLT, (Replaces bolt K602804) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

K626916

WASHER

WASHER - special, 5/16 inch

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

1шт.

11

K907789

BATTERY

BATTERY - 12 volt, Exide 6/TXMZ15L, standard duty battery, no longer available, order battery BHC30 below

1шт.

11

BHC30

BATTERY, DRY

BATTERY DRY BATTERY - 12 volt, dry type

1шт.

12

K947398

COVER

COVER - battery, standard duty battery

1шт.

13

K948870

STUD

STUD - clamping, 1/4 NC x 6-1/2 inch, standard duty battery

2шт.

14

K948933

STUD

BOLT - special, 5/8 inch NC, standard duty battery, no longer available

2шт.

15

K947080

FRAME

CLAMP - battery, standard duty battery

1шт.

K626662

WASHER

WASHER - flat, 1/4 inch, standard duty battery (Replaces washer K19470)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Standard duty battery (Replaces washer K626341) 1/4"

2шт.

K607200

NUT

NUT - wing, 1/4 inch NC, standard duty battery, no longer available

2шт.

K952487

BATTERY

BATTERY - 12 volt, Exide 6/RMAZ17R, heavy duty battery, no longer available, order battery BHC30, Ref. 11

1шт.

K948699

COVER

COVER - battery, heavy duty battery, no longer available

1шт.

K948941

STUD

STUD - clamping, 1/4 NC x 9-5/8 inch, heavy duty battery, no longer available

2шт.

K948524

BUSHING

SPACER - distance, heavy duty battery, no longer available

2шт.

K626662

WASHER

WASHER - flat, 1/4 inch, heavy duty battery (Replaces washer K19470)

2шт.

425-104

NUT,1/4"-20, Cl 5

NUT - hex, 1/4 inch NC, heavy duty battery (Replaces nut K607043)

2шт.

16

K923772

PACKING

BRACKET - packing piece

2шт.

K603048

SCREW

PLUG - plastic, 7/16 inch NC (Replaces plug K628100)

2шт.

17

K908394

BUSHING

SPARE PART PAD - seating, no longer available

1шт.

18

140899A2

STARTING MOTOR

STARTER ASSEMBLY - Lucas 26301 (Replaces starter K913007)

2шт.

19

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - hex, 3/8 NC x 1-1/2 inch (Replaces bolt K602908)

1шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

BOLT - hex, 3/8 NC x 1-1/4 inch (Replaces bolt K602906)

2шт.

492-11038

LOCK WASHER,3/8"

LOCK WASHER, (Replaces washer K19482) 3/8"

3шт.

21

K913945

CABLE

CABLE -, Serial Range: battery-earth

1шт.

22

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

BOLT - hex, 5/16 NC x 1/2 inch (Replaces bolt K602840)

1шт.

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER - external tooth lock, 5/16 inch (Replaces washer K11517)

1шт.

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC (Replaces nut K607044)

1шт.

23

3145123R92

CABLE

CABLE - battery to starter (Replaces cable K947406)

1шт.

24

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

CLAMP - starter cable, P-type, 7/16 inch ID (Replaces clamp K15518)

1шт.

K87560

CONTACT HOUSING

COVER - rubber, starter terminal

1шт.

25

K947336

CABLE

CABLE - starter to earth (Replaces cable K918762)

1шт.

188598A1

KIT

KIT - service, starter shield, Meltham-built tractors, includes instructions, if used, Includes: Ref. 26 - 28 and Decal's

1шт.

26

187985A1

SHIELD

SHIELD - starter motor

1шт.

27

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

28

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

BOLT - hex, 1/4 NC x 3/4 inch

2шт.

321-7040

DANGER DECAL

DECAL, DANGER, Start instructions, See Ref. 1 on Fig. 9-92

1шт.

124279A1

DECAL

DECAL - start instructions, French, see Ref. 2 on Fig. 9-92

1шт.

321-6872

DECAL

DECAL - Warning, jump start, see Ref. 3 on Fig. 9-92

1шт.

321-6720

DECAL

DECAL - Warning, jump start, French, see Ref. 4 on Fig. 9-92

1шт.

188597A1

SOLENOID

KIT - solenoid and shield, Meltham-built tractors, includes Ref. 26 - 28 and Solenoid, if used

1шт.

K963825

SOLENOID

SOLENOID - starter

1шт.
