Запчасти Case IH 885 (4-16) - LAMPS, SIDE AND REAR, 885, 885H, 885N, 885Q AND 885QH TRACTORS (04) - ELECTRICAL SYSTEMS

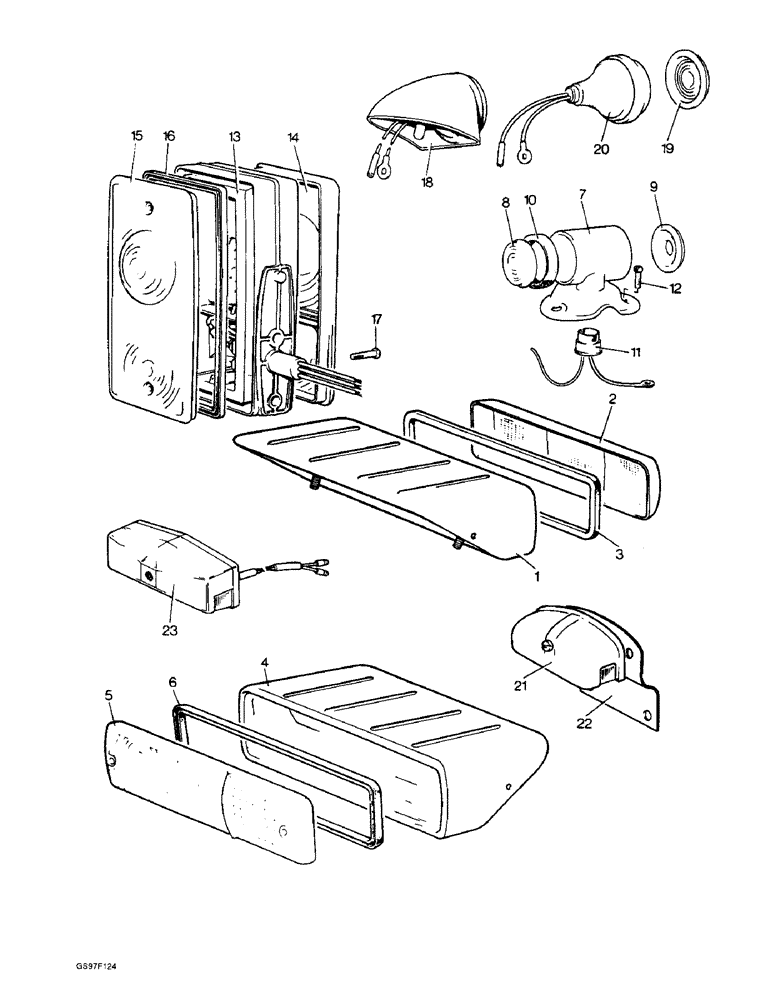

Схема запчастей Case IH 885 - (4-16) - LAMPS, SIDE AND REAR, 885, 885H, 885N, 885Q AND 885QH TRACTORS (04) - ELECTRICAL SYSTEMS
21
13
4
9
8
2
6
10
16
20
12
11
1
3
14
5
23
22
19
15
17
18
7

Артикул

Название

Примечание

Количество

1

3123163R91

LAMP, TAIL

LAMP ASSEMBLY - stop/tail flasher, left-hand, used with 885, 885H, 885Q and 885QH tractors, Includes: Ref. 2 - 3 and Adapter

1шт.

3123164R91

LAMP, TAIL

LAMP ASSEMBLY - stop/tail flasher, right-hand, used with 885, 885H, 885Q and 885QH tractors, Includes: Ref. 2 - 3 and Adapter

1шт.

2

K963517

LENS

- left-hand, with screw, used with 885, 885H, 885Q and 885QH tractors, no longer available, order lens K963511, washer K963504 and screw K963505

1шт.

K963516

LENS

- right-hand, with screw, used with 885, 885H, 885Q and 885QH tractors, no longer available, order lens K963510, washer K963504 and screw K963505

1шт.

K963510

LENS

- right-hand rear lamp

1шт.

K963511

LENS

- left-hand rear lamp

1шт.

K963504

WASHER

- fibre

1шт.

K963505

SCREW

- self-tapping, No. 8 x 3/4 inch

1шт.

3

K963507

GASKET

- lens, used with 885, 885H, 885Q and 885QH tractors

1шт.

K964768

HOLDER

ADAPTER - bulb holder, used with 885, 885H, 885Q and 885QH tractors, no longer available

2шт.

4

K954472

INDICATOR LIGHT

LAMP ASSEMBLY - side/flasher, left-hand, full fender, used with 885 and 885H tractors, no longer available, Includes: Ref. 5 and 6

1шт.

K954471

INDICATOR LIGHT

LAMP ASSEMBLY - side/flasher, right-hand, full fender, used with 885 and 885H tractors, no longer available, Includes: Ref. 5 and 6

1шт.

5

K963513

LENS

- left-hand, with screws, full fender, 885 and 885H tractors, no longer available, order lens K963512 (Replaces lens K963519)

1шт.

K963512

LENS

- right-hand, with screws, full fender, used with 885 and 885H tractors (Replaces lens K963518)

1шт.

6

K963506

GASKET - lens, full fender, used with 885 and 885H tractors, no longer available

1шт.

K626310

WASHER

- flat, 3/16 inch, lamps to fenders, eight used with 885 and 885H tractors, four used with 885Q and 885QH tractors, no longer used

1шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Lamps to fenders, 8 used with 885 and 885H tractors, 4 used with 885Q and 885QH tractors (Replaces washer K626340) #10

1шт.

225-14210

NUT,#10-32

Lamps to fenders, eight used with 885 and 885H tractors, four used with 885Q and 885QH tractors #10-32

1шт.

7

K921080

STOP LIGHT

LAMP ASSEMBLY - side/rear, shell fenders, left-hand, used with 885 and 885H tractors, no longer available, Includes: Ref. 8 - 11 and Mounting

1шт.

K921079

LAMP

ASSEMBLY - side/rear, right-hand, shell fenders, used with 885 and 885H tractors, no longer available, Includes: Ref. 8 - 11 and Mounting

1шт.

8

K960887

LENS

- clear, no longer available, order lamp assembly K921234 or K921236

1шт.

9

K960888

LENS

- red, no longer available, order lamp assembly K921233

1шт.

10

708419R1

GASKET

MOUNTING - rubber, lenses (Replaces mounting K960889)

1шт.

11

K961772

BULB

HOLDER - bulb

1шт.

K961827

MOUNTING - rubber, bulb holder, no longer available

1шт.

225-14210

NUT,#10-32

Used with 885 and 885H tractors (Replaces nut K617080) #10-32

4шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, , Used with 885 and 885H tractors (Replaces washer K11519) Ext Tooth, #10

4шт.

12

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch, used with 885 and 885H tractors (Replaces screw K615404)

4шт.

K950659

LIGHT ASSY.

LAMP ASSEMBLY - side/flasher, left-hand, used with 885Q and 885QH tractors, no longer available, Includes: Ref. 14 - 17, Lens, Bolt, Washer, and Grommet

1шт.

13

K950658

LIGHT ASSY.

LAMP ASSEMBLY - side/flasher, right-hand, used with 885Q and 885QH tractors, no longer available, Includes: Ref. 14 - 17, Lens, Bolt, Washer, and Grommet

1шт.

K964705

LENS

- left-hand rear, amber/black, no longer available

1шт.

14

K964704

LENS

- right-hand rear, amber/black, no longer available

1шт.

K964707

LENS

- left-hand front, amber/clear, no longer available

1шт.

15

K964706

LENS

- right-hand front, amber/clear, no longer available

1шт.

16

K964710

GASKET

- lamp, lens to body, no longer available

2шт.

17

K964712

SCREW

BOLT - hex, 1/8 x 1/2 inch, lens to body, no longer available

4шт.

K963504

WASHER

- hex, 1/8 inch, Serial Range: lens-body

4шт.

K964711

GROMMET

- lamp, includes sleeve, lens to body, no longer available

1шт.

K651001

SCREW

- hex, M5 x 3-5/8 inch, lamp to cab pillar, used with 885 and 885H tractors, no longer available

2шт.

K921236

INDICATOR LIGHT

LAMP ASSEMBLY - side, left-hand, used with 885N tractors, Includes: Ref. 19 - 20 and Lens

1шт.

K921234

INDICATOR LIGHT

LAMP ASSEMBLY - side, right-hand, used with 885N tractors, no longer available, Includes: Ref. 19 - 20 and Lens

1шт.

K921235

LAMP

ASSEMBLY - rear, left-hand, used with 885N tractors, Includes: Ref. 19 - 20 and Lens

1шт.

18

K921233

LAMP

ASSEMBLY - rear, right-hand, used with 885N tractors, Includes: Ref. 19 - 20 and Lens

1шт.

K960887

LENS

- clear, no longer available, order lamp assembly K921234 or K921236 above

1шт.

19

K960888

LENS

- red, no longer available, order lamp assembly K921235

1шт.

20

K962195

SPARE PART SET

MOUNTING - rubber, order lamp assembly

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Used with 885N tractors 1/4"

8шт.

425-114

NUT,1/4"-28, G5

Used with 885N tractors (Replaces nut K616980) 1/4"-28, G5

8шт.

21

K311863

INTERIOR LIGHT

LAMP - rear number plate, used with 885 and 885H tractors (Replaces lamp K943308)

1шт.

K12355

NUT

- dome, 2 BA, used with 885 and 885H tractors, no longer available

2шт.

22

K902460

SUPPORT

BRACKET - support, used with 885 and 885H tractors, no longer available

1шт.

K603924

SCREW

- hex, 1/4 NC x 1/2 inch, used with 885 and 885H tractors, no longer available

3шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, used with 885 and 885H tractors

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Used with 885 and 885H tractors 1/4"

3шт.

K621644

CLIP

- lead to seat, used with 885 and 885H tractors

1шт.

23

K311863

INTERIOR LIGHT

LAMP ASSEMBLY - rear number plate, used with 885Q and 885QH tractors (Replaces lamp assembly K956040), Includes: Cover, Holder, Screw, and Base

1шт.

K692044

COVER

- lamp, no longer available

1шт.

K962045

HOLDER - bulb, no longer available

1шт.

K19391

SCREW

- hex, no longer available

1шт.

K692046

BASE

- rubber, no longer available

1шт.

K627705

GROMMET

- 1/2 inch diameter, used with 885Q and 885QH tractors, no longer available

1шт.

K692034

STRAP

- used with 885Q and 885QH tractors, no longer available

3шт.

K692035

LINK

- used with 885Q and 885QH tractors, no longer available

3шт.

Выбрано товаров: 63
