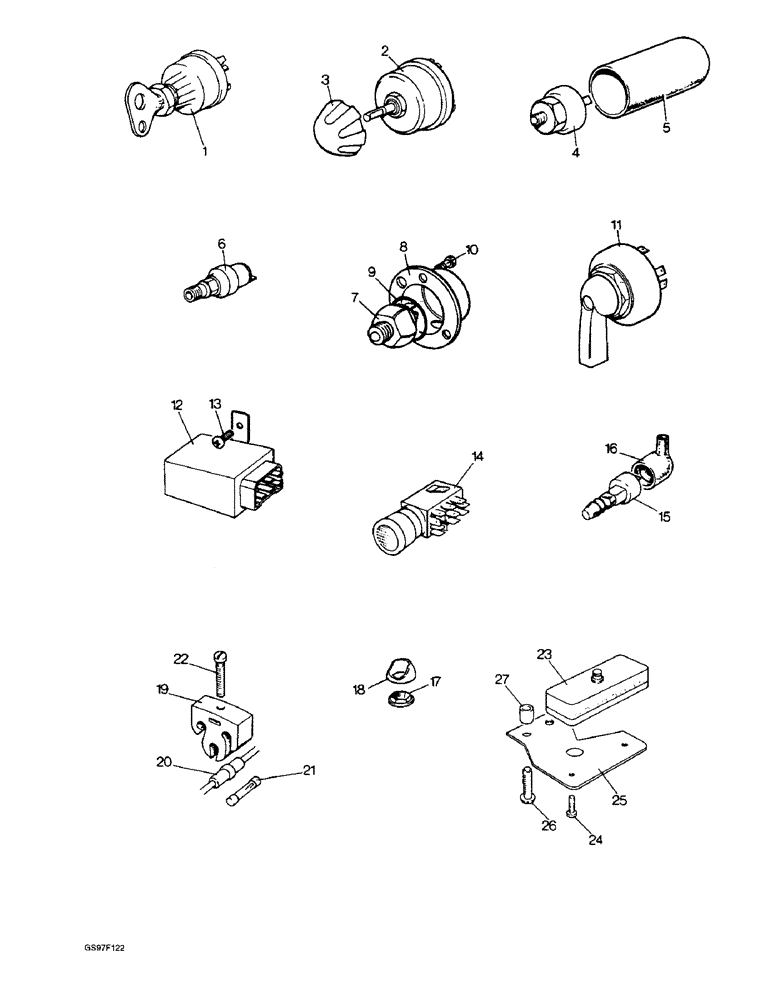

Запчасти Case IH 885 (4-12) - SWITCHES, WARNING LAMPS AND FUSE BOX, 885, 885G, 885H AND 885N TRACTORS (04) - ELECTRICAL SYSTEMS

1

3107556R92

SWITCH ASSY

SWITCH - isolating and starter, Lucas 30413 (Replaces switch K945294)

1шт.

K964147

COUPLING, BREAK AWAY

CONNECTOR - Lucas 54960661

1шт.

K961268

CONNECTOR,ELECTRIC

INSULATOR - Lucas 54190042

1шт.

K961269

INSULATOR

- Lucas 54190043

1шт.

1

K929365

IGNITION SWITCH

SWITCH - isolating, starter and thermostart, Lucas 35670, no longer available, order switch 3107556R92, connector K964147, insulator K961268 and insulator K961269

1шт.

K962338

KEY

KEY - isolating and starter switch (Replaces key K920929)

2шт.

2

K914091

LIGHT SWITCH

SWITCH - side/headlamps, Lucas 54033370, no longer available, order switch 1502378C1, Ref. 2, knob, Ref. 3, and washer 406579R1

1шт.

2

1502378C1

LIGHT SWITCH

SWITCH - lamp, four position

1шт.

3

K262015

KNOB

- lighting switch (Replaces knob K901981)

1шт.

3

406579R1

WASHER

- flat, 17/32 x 7/8 x 1/16 inch, used with switch 1502378C1

1шт.

4

K311686

SWITCH, PRESSURE

SWITCH - oil pressure warning, AC-Delco 7954181 (Replaces switch K903851)

1шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

- fibre, 3/8 inch

1шт.

5

K947518

COVER

- oil pressure switch

1шт.

6

K921317

SENDER UNIT

SWITCH - oil filter lamp, AC-Delco 7954473

1шт.

7

K262714

SWITCH

- safety starter, Lucas 39686 (Replaces switch K940288)

1шт.

K626895

SHIM,.002" Thk

1шт.

K626858

SHIM,.005" Thk

1шт.

K626894

SHIM,.010" Thk

1шт.

8

K940284

COVER

- safety switch

1шт.

248-1140

GROMMET,3/8" ID x 5/8" Groove Dia

- rubber, 3/8 inch

1шт.

9

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

(Replaces O-ring K15535) -222, 70 Duro, 1.484" ID x .139" Thk

1шт.

10

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch (Replaces bolt K602734)

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

3шт.

11

K300781

FLASHER SWITCH

SWITCH - direction indicators, Hella 6RB00159502

1шт.

12

1536091C2

FLASHER UNIT

FLASHER- six pin (Replaces flasher K948611)

1шт.

13

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

- hex, 1/4 NC x 5/8 inch, no longer available

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

1шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut K607043)

1шт.

14

3118917R93

FLASHER SWITCH

SWITCH ASSEMBLY - hazard warning, Hella, 11/41, Includes: Knob, Lens, Washer, and Mounting

1шт.

K964913

KNOB

- switch

1шт.

K964914

LENS

- switch

1шт.

K950592

WASHER

- hex

1шт.

K950593

COVER

MOUNTING - rubber, order switch assembly

1шт.

15

K929737

SWITCH ASSY

SWITCH - stop lamps, AC-Delco 1533840, 885, 885N and 885G tractors

1шт.

15

K920206

LIGHT SWITCH

SWITCH - stop lamps, Lucas 54337405, 885H tractors, no longer available

1шт.

16

K943744

COVER

- stop lamp switch, used with 885, 885N and 885G tractors

1шт.

17

K917371

SIGHTGLASS

LENS - warning lamp, green

1шт.

17

K921367

SIGHTGLASS

LENS - warning lamp, amber, two used with 885, 885N and 885H tractors, one used with 885G tractors (Replaces lens K917370)

1шт.

17

K943929

INTERIOR LIGHT

LENS - warning lamp, blue, used with 885G tractors, no longer available

1шт.

18

K919304

GUARD

HOOD - warning lamps, used with 885, 885H and 885G tractors

4шт.

K913567

INDICATOR

LAMP - warning, direction indicators, used with 885G tractors, no longer available

1шт.

19

K944904

RETAINER

fuse holder, used with 885, 885N and 885H tractors, no longer available

1шт.

20

K962358

FUSE

HOLDER - fuse, part of wiring harness, used with 885, 885N and 885H tractors

2шт.

21

K947431

FUSE

- 35 amp, used with 885, 885N and 885H tractors

2шт.

22

K624523

SCREW

- hex, No. 10 x 7/8 inch, used with 885, 885N and 885H tractors, no longer available

1шт.

K624586

NUT

- Spire, No. 10, used with 885, 885N and 885H tractors, no longer available

1шт.

K626572

WASHER

- Seloc, 3/16 inch, used with 885, 885N and 885H tractors

1шт.

23

K913584

FUSE

BOX ASSEMBLY - fuse, used with 885G tractors, no longer available, Includes: Fuse

1шт.

24

490-11010

SCREW,Cross Pan Hd, #10-32 x 5/8"

- machine, pan Phillips, No. 10 NF x 5/8 inch, box to bracket, used with 885G tractors (Replaces screw K614945)

2шт.

K913585

FUSE

- 8 amp, used with 885G tractors, no longer available

8шт.

225-14210

NUT,#10-32

Box to bracket, used with 885G tractors (Replaces nut K617080) #10-32

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Box to bracket, used with 885G tractors (Replaces washer K626340) #10

2шт.

25

K948500

BRACKET

- support, fuse box, used with 885G tractors, no longer available

1шт.

26

K603929

SCREW

- 1/4 NC x 1-1/2 inch, bracket to instrument panel, used with 885G tractors, no longer available

2шт.

K626573

WASHER

- Selco, 1/4 inch, bracket to instrument panel, used with 885G tractors, no longer available

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Bracket to instrument panel, used with 885G tractors (Replaces washer K626341) 1/4"

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch, bracket to instrument panel, used with 885G tractors (Replaces nut K607043)

2шт.

27

K948500

BRACKET

SPACER - distance, bracket to instrument panel, used with 885G tractors, no longer available

2шт.

248-1140

GROMMET,3/8" ID x 5/8" Groove Dia

- fuse box bracket, rubber, 3/8 inch

1шт.
