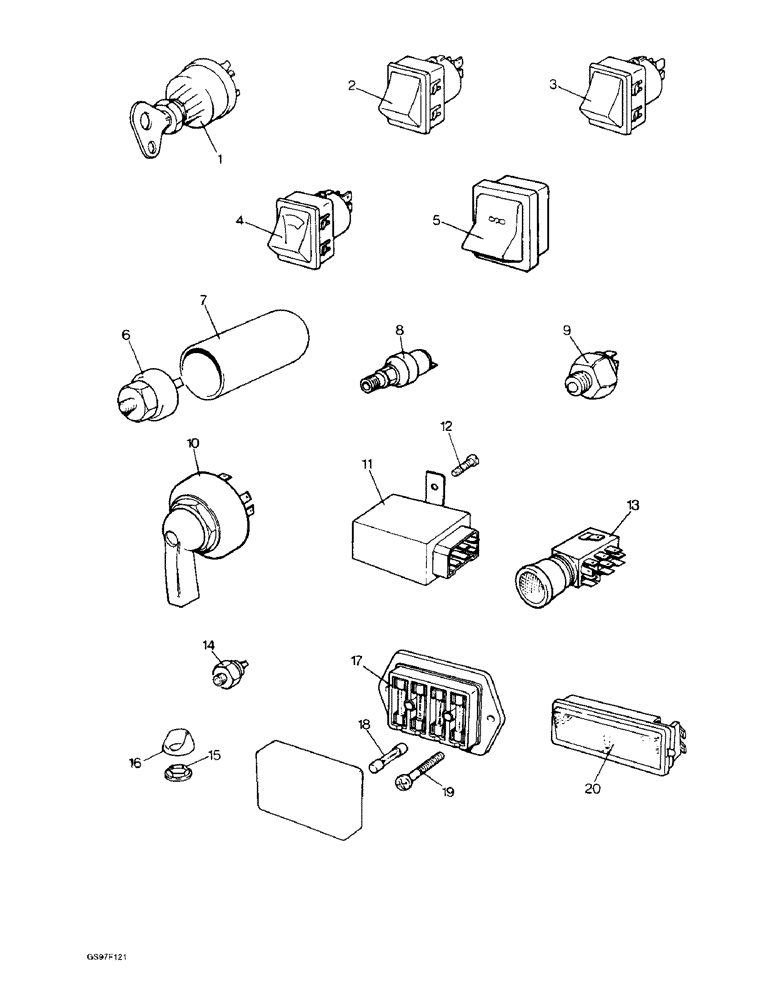

Запчасти Case IH 885 (4-10) - SWITCHES, WARNING LAMPS AND FUSE BOX, 885Q, 885QH AND 885SK TRACTORS (04) - ELECTRICAL SYSTEMS

1

3107556R92

SWITCH ASSY

SWITCH - isolating and starter, Lucas 30413, used with 885Q and 885QH tractors (Replaces switch K945294)

1шт.

K964147

COUPLING, BREAK AWAY

CONNECTOR - Lucas 54960661

1шт.

K961268

CONNECTOR,ELECTRIC

INSULATOR - Lucas 54190042

1шт.

K961269

INSULATOR

- Lucas 54190043

1шт.

1

K929365

IGNITION SWITCH

SWITCH - isolating, starter and thermostart, Lucas 35670, no longer available, order switch 3107556R92, connector K964147, insulator K961268 and insulator K961269

1шт.

K962338

KEY

KEY - isolating and starter switch (Replaces key K920929)

2шт.

2

K949234

LIGHT SWITCH

SWITCH - side/headlamps, Lucas 30875, no longer available

1шт.

3

K949235

LIGHT SWITCH

SWITCH - headlamp dip, Lucas 30876, no longer available

1шт.

4

K954506

SWITCH

- windscreen wiper/washer, Lucas 54340801, used with 885Q and 885QH tractors with serial number 11010300 and after, no longer available

1шт.

4

K691923

SWITCH

- windscreen wiper, Lucas 39299, 885Q and 885QH tractors with serial numbers prior to 11010300, no longer available

1шт.

5

K200023

SWITCH

- heater, two speed, Lucas 30624, used with 885Q and 885QH tractors with serial number 11010300 and after, no longer available

1шт.

5

K953351

SWITCH

- heater, single speed, Lucas 54340620, 885Q and 885QH tractors with serial numbers prior to 11010300, no longer available

1шт.

6

K311686

SWITCH, PRESSURE

SWITCH - oil pressure warning, AC-Delco 7954181 (Replaces switch K903851)

1шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

- fibre, 3/8 inch

1шт.

7

K947518

COVER

- oil pressure switch

1шт.

8

K921317

SENDER UNIT

SWITCH - oil filter lamp, AC-Delco 7954473

1шт.

K262714

SWITCH

- safety starter, Lucas 39686 (Replaces switch K940288)

1шт.

K626895

SHIM,.002" Thk

1шт.

K626858

SHIM,.005" Thk

1шт.

K626894

SHIM,.010" Thk

1шт.

10

K300781

FLASHER SWITCH

SWITCH - direction indicator, Hella 6RB00159502 (Replaces switch K946374)

1шт.

11

1536091C2

FLASHER UNIT

FLASHER - six pin (Replaces flasher K948611)

1шт.

12

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

- hex, 1/4 NC x 5/8 inch, no longer available

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

1шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut K607043)

1шт.

13

3118917R93

FLASHER SWITCH

SWITCH ASSEMBLY - hazard warning, Hella 11/41 (Replaces switch K947482), Includes: Knob, Lens, Washer, and Mounting

1шт.

K964913

KNOB

- switch

1шт.

K964914

LENS

- switch

1шт.

K950592

WASHER

- hex

1шт.

K950593

COVER

MOUNTING - rubber, order switch assembly

1шт.

14

K951976

LIGHT SWITCH

SWITCH - stop lamps, M10, Lucas 30874A, 885Q and 885Sk tractors

1шт.

14

K954921

LIGHT SWITCH

SWITCH - stop lamps, 3/8 inch NF, Lucas 34619B, 885QH tractors

1шт.

15

K917371

SIGHTGLASS

LENS - warning lamp, green

1шт.

15

K921367

SIGHTGLASS

LENS - warning lamp, amber (Replaces lens K917370)

3шт.

16

K919303

COIL

HOOD - warning lamps, no longer available

4шт.

17

K950652

BOX ASSEMBLY - fuse, no longer available, Includes: Ref. 18

1шт.

18

K947431

FUSE

- 35 amp

3шт.

18

K904459

FUSE

- 25 amp

2шт.

18

9426333

FUSE,15 Amp, Type 3AG

- 15 amp (Replaces fuse K951395)

1шт.

19

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch, box to panel

2шт.

225-14210

NUT,#10-32

(Replaces nut K617080) #10-32

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer K626340) #10

2шт.

20

K952776

INTERIOR LIGHT

LAMP - interior, used with 885Q and 885QH tractors, no longer available

1шт.
