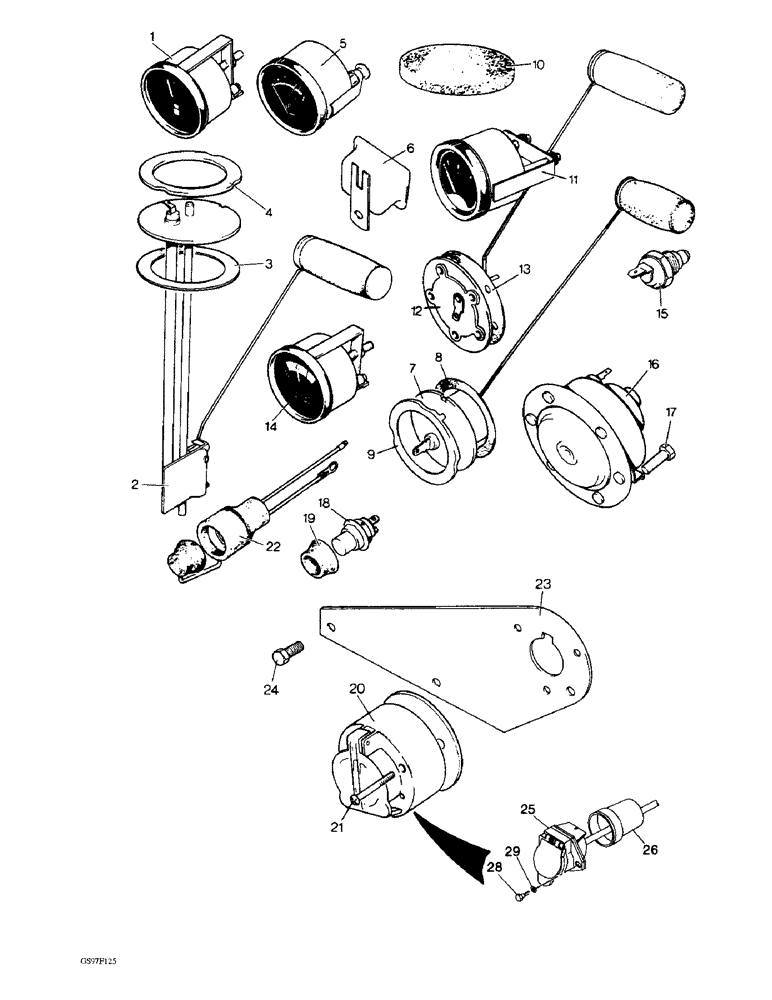

Запчасти Case IH 885 (4-08) - GAUGES, HORN AND TRAILER SOCKET (04) - ELECTRICAL SYSTEMS

1

K949236

ELECTRICAL GAUGE

GAUGE - fuel, Smiths AF2204/00, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

2

K948994

FLOAT

UNIT - tank, Smiths TSB 5514/014, used with 885Q, 885QH and 885Sk tractors

1шт.

3

K942450

RING

- sealing, unit to fuel tank, used with 885Q, 885QH and 885Sk tractors

1шт.

4

K942451

RING

- locking, unit to fuel tank, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

5

K942442

ELECTRICAL GAUGE

GAUGE - fuel, Smiths BF2100/02, used with 885 and 885H tractors, no longer available

1шт.

6

K942740

STABILIZER

- voltage, Smiths BR1300/01A, used with 885 and 885H tractors, no longer available, order K262539 and adapt to fit instrument lead

1шт.

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

- machine, pan head Phillips, No. 8 NC x 3/8", Used with 885 and 885H tractors (Replaces screw K603910)

1шт.

K626572

WASHER

- Seloc, 2 BA, used with 885 and 885H tractors

1шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Used with 885 and 885H tractors #10

1шт.

225-14108

NUT,#8-32

- hex, No. 10 NC, used with 885 and 885H tractors

1шт.

7

K946184

FUEL GAUGE

UNIT - tank, Smiths BR1300/01A, used with 885 and 885H tractors

1шт.

8

K942450

RING

- sealing, unit to fuel tank, used with 885 and 885H tractors

1шт.

9

K942451

RING

- locking, unit to fuel tank, used with 885 and 885H tractors, no longer available

1шт.

10

K946256

PLUG

DISC - plastic, unit to fuel tank, used with 885 and 885H tractors

1шт.

11

K262707

ELECTRICAL GAUGE

GAUGE - fuel, AC-Delco 7974119, used with 885N tractors

1шт.

12

K916635

SENDER UNIT

UNIT - tank, AC-Delco E/PG162905, used with 885N tractors

1шт.

Order sensor K262713 and connect earth wire to chassis. Also order gauge 3129840R2.

1шт.

13

K916485

GASKET

- unit to fuel tank, used with 885N tractors

1шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Unit to fuel tank, used with 885N tractors #10

5шт.

225-14210

NUT,#10-32

Unit to fuel tank, used with 885N tractors #10-32

5шт.

14

K949237

ELECTRICAL GAUGE

GAUGE - temperature, Smiths ACT 2206/00, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

14

K921148

ELECTRICAL GAUGE

GAUGE - temperature, AC-Delco 7966282, used with 885, 885H and 885N tractors, no longer available, order gauge 3127959R3, Ref. 14

1шт.

14

3127959R3

GAUGE

- temperature

1шт.

15

K952332

TRANSMITTER

SENDER - Smiths TT4803/01, used with 885Q, 885QH and 885Sk tractors

1шт.

15

K300297

TEMPERATURE SENDER

SENDER - AC-Delco 7966281, used with 885, 885H and 885N tractors (Replaces sender K921149)

1шт.

K626444

WASHER

- copper, used with 885, 885H and 885N tractors, no longer available

1шт.

16

K311359

HORN

- includes bracket (Replaces horn K950098)

1шт.

17

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch, horn to air cleaner support

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Horn to air cleaner support 1/4"

2шт.

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4 inch, horn to air cleaner support (Replaces washer K11524)

1шт.

18

K928180

SWITCH

PUSH - horn, Lucas 31872

1шт.

19

K928150

BOOT

COVER - rubber, no longer available

1шт.

K25949

WASHER

- special, 3/4 inch, no longer available

1шт.

K928148

SPRING

WASHER - spring, special, 3/4 inch, no longer available

1шт.

K928147

NUT - special, 3/4 inch NF, no longer available

1шт.

20

K913566

POINT

SOCKET - trailer connection, 7-pin, used with 885Q, 885QH, 885 and 885H tractors, no longer available, order Ref. 25-29 below

1шт.

3118929R1

SOCKET/RECEPTACLE

PLUG - trailer connection, used with 885Q, 885QH, 885 and 885H tractors (Replaces plug K963625)

1шт.

21

K614950

SCREW

- No. 10 NF x 1-1/4 inch, used with 885Q, 885QH, 885 and 885H tractors, no longer available

3шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Used with 885Q, 885QH, 885 and 885H tractors (Replaces washer K626340) #10

3шт.

225-14210

NUT,#10-32

Used with 885Q, 885QH, 885 and 885H tractors (Replaces nut K617080) #10-32

3шт.

K627724

GROMMET

- 1-3/16 inch, used with 885 and 885H tractors

1шт.

22

705271R91

SOCKET/RECEPTACLE

SOCKET - trailer connection, 2-pin, used with 885 and 885H tractors (Replaces socket K948076)

1шт.

23

K948022

BRACKET

- trailer connection, used with 885 and 885H tractors, no longer available

1шт.

24

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch, used with 885 and 885H tractors (Replaces bolt K602730)

2шт.

K605633

SCREW

- hex, 1/4 NC x 1/2 inch, used with 885 and 885H tractors

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Used with 885 and 885H tractors (Replaces washer K626341) 1/4"

3шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, used with 885 and 885H tractors (Replaces nut K607043)

1шт.

25

121645C1

MULTIPOLE CONNECTOR,7 Pin

CONNECTOR - trailer, seven pin

1шт.

26

481849C1

PROTECTIVE COVER

BOOT - rubber

1шт.

27

A143370

HARNESS

- auxilirary outlet, not shown

1шт.

28

281-34812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 3/4 inch

2шт.

29

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.
