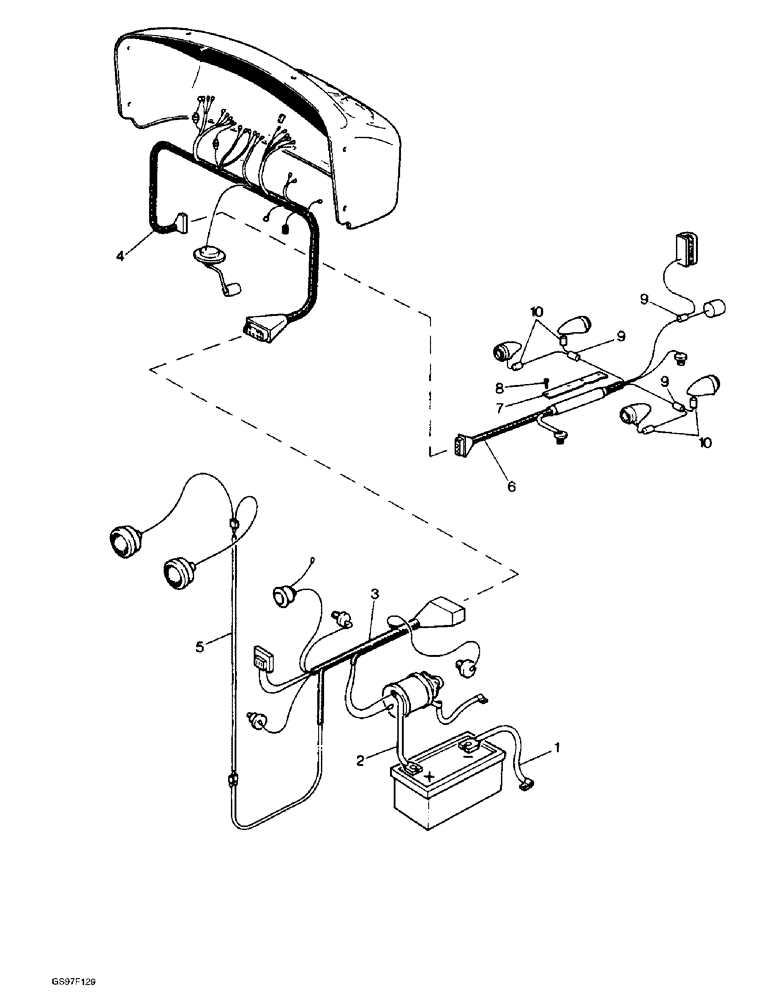

Запчасти Case IH 885 (4-06) - ELECTRICAL WIRING, 885 AND 885N TRACTORS (04) - ELECTRICAL SYSTEMS

1

K913945

CABLE

-, Serial Range: battery-earth

1шт.

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/6 NC x 1/2 inch (Replaces bolt K602840)

1шт.

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER - external tooth lock, 5/16 inch (Replaces washer K11517)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut K607044)

1шт.

2

3145123R92

CABLE

- battery to starter (Replaces cable K947406)

1шт.

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

- P-type, 7/16 inch ID, electrical wiring (Replaces clamp K15518)

1шт.

K87560

CONTACT HOUSING

COVER - rubber, starter terminal

1шт.

K947336

CABLE

- starter to earth (Replaces cable K918762)

1шт.

3

K948448

HARNESS

- wiring, engine auxiliaries, no longer available

1шт.

K621675

CLIP

CLAMP - harness to engine, no longer available

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch (Replaces bolt K602734)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

K948449

HARNESS

- wiring, instrument panel, no longer available

1шт.

K925268

BLADE

CONNECTOR - blade, 25 amp

1шт.

K10518

BUCKLE

CLIP - buckle

1шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch, connector and clip to tank support, used with 885 tractors (Replaces screw K614944)

1шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Connector and clip to tank support, used with 885 tractors (Replaces washer K626340) #10

1шт.

225-14210

NUT,#10-32

Connector and clip to tank support, used with 885 tractors (Replaces nut K617080) #10-32

1шт.

K11109

NUT

- connector and clip to tank support, used with 885N tractors

1шт.

5

K948467

ELECTRICAL WIRE

LEAD - connector to outboard headlamps

1шт.

5

K948468

ELECTRICAL WIRE

LEAD - connector to inboard headlamps

1шт.

K625006

CLIP

- leads to bonnet, no longer available

11шт.

6

K948074

HARNESS

- rear wiring

1шт.

7

K945688

COVER

PLATE - plate, rear harness

1шт.

8

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch, plate to gearbox cover, three used with 885 and four used with 885N tractors (Replaces bolt K602734)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Plate to gearbox cover (Replaces washer K626341) 1/4"

4шт.

K625005

CLIP

- Kwik, 1/8 inch diameter, two used with 885 tractors and four used with 885N tractors, no longer available

1шт.

K625006

CLIP

- Kwik, 1/8 inch diameter, used with 885 tractors

2шт.

K621665

CLIP

- filter switch lead, no longer available

2шт.

K627727

GROMMET

- 5/8 inch diameter, no longer available

1шт.

K627709

GROMMET

- 5/8 inch diameter, no longer available

2шт.

K627715

GROMMET

- rear axle housing, 3/16 inch diameter, used with 885N tractors, no longer available

1шт.

705896R1

CONNECTOR, ELEC

CONNECTOR - double (Replaces connector K86230)

2шт.

10

K67916

ELEC CONNECTOR

CONNECTOR - single

2шт.
