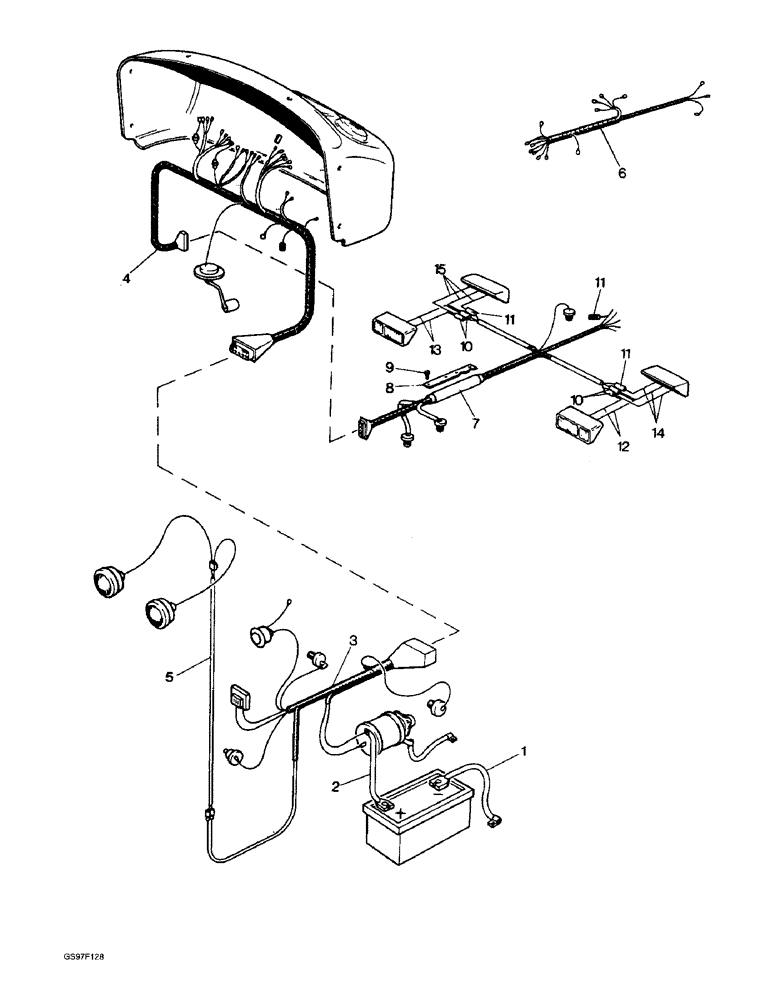

Запчасти Case IH 885 (4-04) - ELECTRICAL WIRING, 885, 885H AND 885G TRACTORS (04) - ELECTRICAL SYSTEMS

1

K913945

CABLE

-, Serial Range: battery-earth

1шт.

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch (Replaces bolt K602840)

1шт.

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER - external-tooth lock, 5/16 inch (Replaces washer K11517)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut K607044)

1шт.

2

3145123R92

CABLE

- battery to starter (Replaces cable K947406)

1шт.

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

- P-type, 7/16 inch ID (Replaces clamp K15518)

1шт.

K87560

CONTACT HOUSING

COVER - rubber, starter terminal

1шт.

K947336

CABLE

- starter to earth (Replaces cable K918762)

1шт.

3

K948448

HARNESS

ASSEMBLY - wiring, engine auxiliaries, used with 885 and 885H tractors, no longer available

1шт.

3

K950402

HARNESS

ASSEMBLY - wiring, engine auxiliaries, used with 885G tractors, no longer available

1шт.

K942603

PEDESTAL

SOCKET - alternator, includes lead, used with 885G tractors, no longer available, order socket 3123158R1 and purchase 2 inch (51 mm) and 16 inch (406 mm) cables locally

1шт.

3123158R1

PACKAGE

SOCKET - alternator

1шт.

K621675

CLIP

CLAMP - harness to engine, no longer available (Replaces clamp K621709)

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch (Replaces bolt K602734)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K19480) 1/4"

1шт.

4

K948450

HARNESS

ASSEMBLY - wiring, instrument panel, used with 885 and 885H tractors, no longer available

1шт.

4

K954519

HARNESS

ASSEMBLY - wiring, instrument panel, used with 885G tractors, no longer available

1шт.

K952506

DIODE

- part of panel harness

1шт.

K625003

CLIP

- Kwik, 3/8 inch diameter

1шт.

K625004

CLIP

- Kwik, 1/2 inch diameter

1шт.

K625006

CLIP

- Kwik, 1/4 inch diameter, no longer available

1шт.

K925268

BLADE

CONNECTOR - blade, 25 amp, two used with 885 and 885H tractors, one used with 885G tractors

1шт.

K929754

SOCKET/RECEPTACLE

SOCKET - auxiliary feed, used with 885G tractors, no longer available

1шт.

K10518

BUCKLE

CLIP - buckle

1шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch, connector and clip to tank support (Replaces screw K614944)

1шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Connector and clip to tank support #10

1шт.

225-14210

NUT,#10-32

Connector and clip to tank support #10-32

1шт.

5

K948468

ELECTRICAL WIRE

LEAD - connector to inboard headlamps, used with 885 and 885H tractors

1шт.

5

K948467

ELECTRICAL WIRE

LEAD - connector to outboard headlamps, used with 885 and 885H tractors

1шт.

5

K950401

ELECTRICAL WIRE

LEAD - connector to inboard feed, used with 885G tractors, no longer available

1шт.

K625006

CLIP

-, Serial Range: lead-bonnet

9шт.

6

K947483

HARNESS

- hazard warning, used with 885 and 885H tractors

1шт.

7

K948072

HARNESS

- rear wiring, with 7-way connector, no longer available

1шт.

8

K945688

COVER

PLATE - cover, rear harness

1шт.

9

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch, plate to gearbox cover (Replaces bolt K602734)

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Plate to gearbox cover 1/4"

4шт.

10

705896R1

CONNECTOR, ELEC

CONNECTOR - double (Replaces connector K86230)

6шт.

11

K67916

ELEC CONNECTOR

CONNECTOR - single

2шт.

K627725

GROMMET

- 1-1/4 inch, no longer available

2шт.

K627726

GROMMET

- 1 inch , no longer available

2шт.

K625003

CLIP

- Kwik, 3/8 inch, harness to axle housing

2шт.

K621633

CABLE

CLIP - stop lamp, Serial Range: leads-platform

3шт.

12

K945589

HARNESS

- side/flasher lamp, left-hand, no longer available

1шт.

13

K945591

HARNESS

- side/flasher lamp, right-hand

1шт.

14

K945590

HARNESS

- stop/rear lamp, left-hand, no longer available

1шт.

15

K945592

HARNESS

- stop/rear lamp, right-hand

1шт.

K625000

CLIP

- cable, 3/8 inch, harness to full fenders, no longer available

14шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Harness to full fenders (Replaces washer K626341) 1/4"

12шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, harness to full fenders (Replaces nut K607043)

12шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch, harness to full fenders (Replaces screw K614944)

2шт.

K626310

WASHER

- flat, 3/16 inch, harness to full fenders, no longer used

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Harness to full fenders (Replaces washer K626340) #10

2шт.

225-14210

NUT,#10-32

WASHER - lock, No. 10 NF, harness to full fenders (Replaces washer K617080)

2шт.

248-1140

GROMMET,3/8" ID x 5/8" Groove Dia

- rubber, 3/8 inch diameter, harness to full fenders

8шт.
