Запчасти Case IH 885 (4-03C) - WIRING HARNESSES, 885LP TRACTORS (04) - ELECTRICAL SYSTEMS

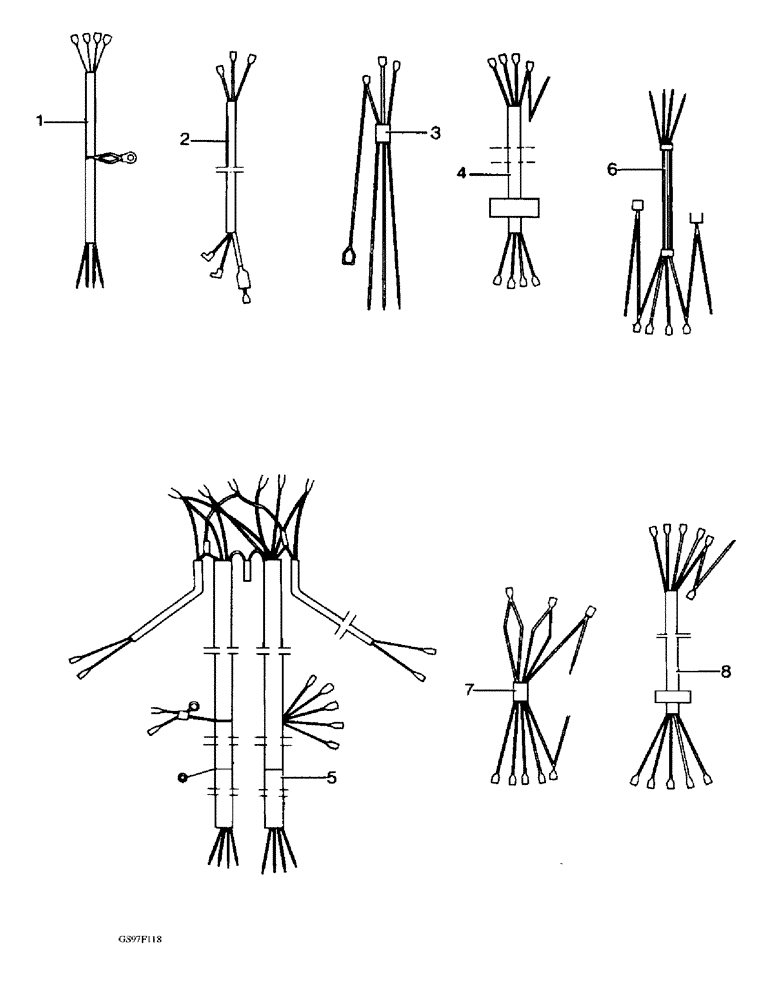

Схема запчастей Case IH 885 - (4-03C) - WIRING HARNESSES, 885LP TRACTORS (04) - ELECTRICAL SYSTEMS
1
5
4
6
7
3
2
8

Артикул

Название

Примечание

Количество

1

K260101

HARNESS

- rear lamp, 414.092, no longer available

1шт.

2

K965521

HARNESS

- vacuum, 40.938, no longer available

1шт.

3

K260102

HARNESS

- wiper housing, 414.073, no longer available

1шт.

4

K260103

HARNESS

ASSEMBLY - cab roof, 414.072, no longer available, Includes: Bushing and Plug

1шт.

K260104

BUSHING

- 946.812, no longer available

1шт.

K260105

PLUG

- 4-pin, 946.528, no longer available

1шт.

5

K260106

HARNESS

ASSEMBLY - 414.081, no longer available, Includes: Plug

1шт.

K260107

PLUG

- 4-pin, 946.527, no longer available

1шт.

6

K260108

HARNESS

- wiper, 41.617, no longer available

1шт.

7

K260109

HARNESS

- blower, 41.616, no longer available

1шт.

8

K260110

HARNESS

- cab roof, 414.124, no longer available

1шт.

Выбрано товаров: 11
