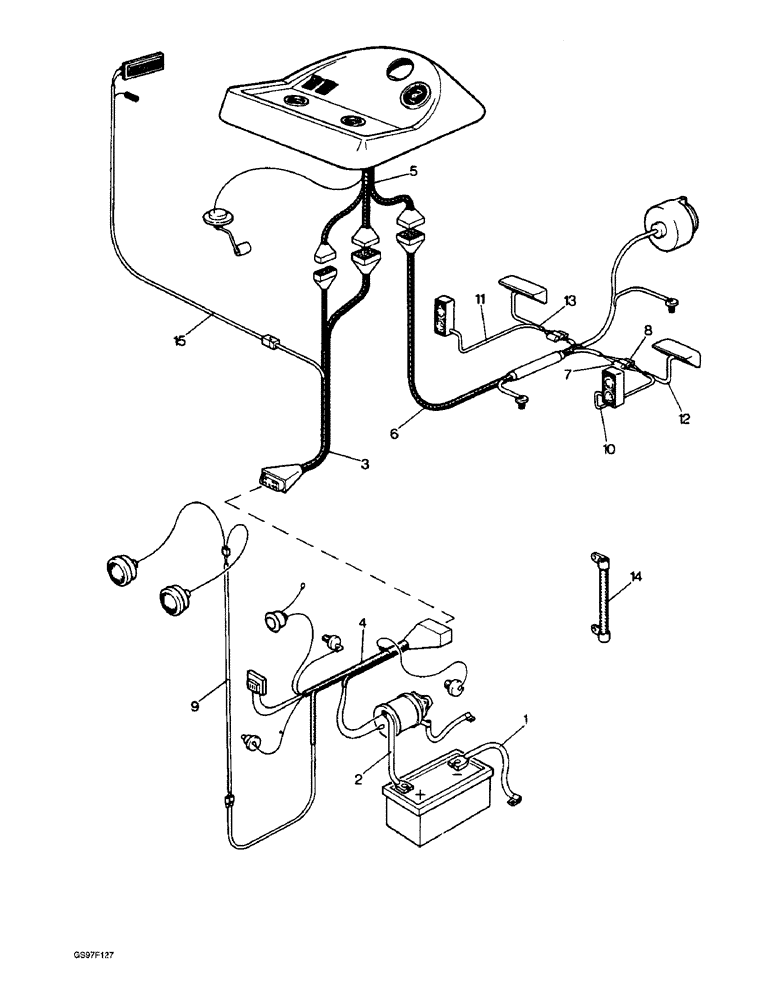

Запчасти Case IH 885 (4-02) - ELECTRICAL WIRING, 885Q, 885QH AND 885SK TRACTORS (04) - ELECTRICAL SYSTEMS

1

K913945

CABLE

-, Serial Range: battery-earth

1шт.

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch (Replaces bolt K602840)

1шт.

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER - external-tooth lock, 5/16 inch (Replaces washer K11517)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut K607044)

1шт.

2

3145123R92

CABLE

- battery to starter (Replaces cable K947406)

1шт.

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

- P-type, 7/16 inch ID (Replaces clip K15518)

1шт.

K87560

CONTACT HOUSING

COVER - rubber, starter terminal

1шт.

3

K954904

HARNESS

- wiring, front bulkhead, used with 885Q and 885QH tractors, no longer available

1шт.

3

K951483

RETAINER

HARNESS - wiring, front bulkhead, used with 885Q and 885QH tractors, no longer available

1шт.

3

K953956

HARNESS

- wiring, front bulkhead, used with 885Sk tractors, no longer available

1шт.

K625006

CLIP

- Kwik, 1/4 inch

1шт.

K951483

RETAINER

PLATE - retainer, harness to instrument panel, no longer available

1шт.

K11885

SPRING

WASHER - spring, 9/64 inch, no longer available

4шт.

K607039

NUT

- hex, 6 inch NF , no longer available

4шт.

4

K951377

HARNESS

- wiring, engine auxiliaries, no longer available

1шт.

K621675

CLIP

CLAMP - wiring harness, no longer available

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch (Replaces bolt K602734)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K19480) 1/4"

1шт.

5

K951381

HARNESS

ASSEMBLY - wiring, instrument panel, no longer available

1шт.

K952506

DIODE

- part of panel harness

1шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch (Replaces screw K614944)

1шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer K626340) #10

1шт.

225-14210

NUT,#10-32

(Replaces nut K617080) #10-32

1шт.

K953731

ELEC CONNECTOR

CONNECTOR - double blade, used with 885Q and 885QH tractors, no longer available

1шт.

K946869

CONNECTOR, ELEC

CONNECTOR - blade type, used with 885Sk tractors, no longer available

1шт.

6

K954905

HARNESS

- rear wiring, used with 885Q and 885QH tractors, no longer available

1шт.

K625010

CLIP

- wiring, used with 885Q and 885QH tractors, no longer available

3шт.

K947474

TUBE

- plastic, 5/16 inch, order in meters, used with 885Q and 885QH tractors, no longer available

1шт.

6

K951382

HARNESS

- rear wiring, used with 885Q and 885QH tractors, no longer available

1шт.

K621665

CLIP

- oil filter switch lead, no longer available

2шт.

K627725

GROMMET

- 1-1/4 inch diameter, used with 885Q and 885QH tractors, no longer available

2шт.

7

K862230

CONNECTOR - double, used with 885Q and 885QH tractors

4шт.

8

K67916

ELEC CONNECTOR

CONNECTOR - single, used with 885Q and 885QH tractors, no longer available

2шт.

9

K948468

ELECTRICAL WIRE

HARNESS - headlamp

1шт.

K625006

CLIP

- Kwik, leads to bonnet, 1/4 inch diameter, used with 885Q and 885QH tractors, no longer available

9шт.

10

K950656

WIRE HARNESS

HARNESS - side/flasher lamp, left-hand, used with 885Q and 885QH tractors, no longer available

1шт.

11

K950657

WIRE HARNESS

HARNESS - side/flasher lamp, right-hand, used with 885Q and 885QH tractors, no longer available

1шт.

12

K951406

HARNESS

- stop/rear lamp, left-hand, used with 885Q and 885QH tractors, no longer available

1шт.

13

K951407

HARNESS

- stop/rear lamp, right-hand, used with 885Q and 885QH tractors, no longer available

1шт.

K625004

CLIP

- Kwik, 1/2 inch diameter, lamp leads to fenders, used with 885Q and 885QH tractors

5шт.

K625000

CLIP

- cable, 3/8 inch diameter, lamp leads to fenders, used with 885Q and 885QH tractors, no longer available

14шт.

K625006

CLIP

- Kwik, 1/4 inch diameter, lamp leads to fenders, used with 885Q and 885QH tractors, no longer available

4шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch, lamp leads to fenders, used with 885Q and 885QH tractors (Replaces screw K614944)

2шт.

K626310

WASHER

- flat, 3/16 inch, lamp leads to fenders, used with 885Q and 885QH tractors, no longer used

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Lamp leads to fenders, used with 885Q and 885QH tractors (Replaces washer K626340) #10

2шт.

225-14210

NUT,#10-32

Lamp leads to fenders, used with 885Q and 885QH tractors (Replaces nut K617080) #10-32

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Lamp leads to fenders, used with 885Q and 885QH tractors (Replaces washer K626341) 1/4"

7шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, used with 885Q and 885QH tractors (Replaces nut K607043)

7шт.

248-1140

GROMMET,3/8" ID x 5/8" Groove Dia

- rubber, 3/8 inch diameter, used with 885Q and 885QH tractors

8шт.

14

K947336

CABLE

- earth, cab to frame, used with 885Q and 885QH tractors

1шт.

15

K951384

ELECTRICAL WIRE

LEAD - cab accessories, used with 885Q and 885QH tractors, no longer available

1шт.
