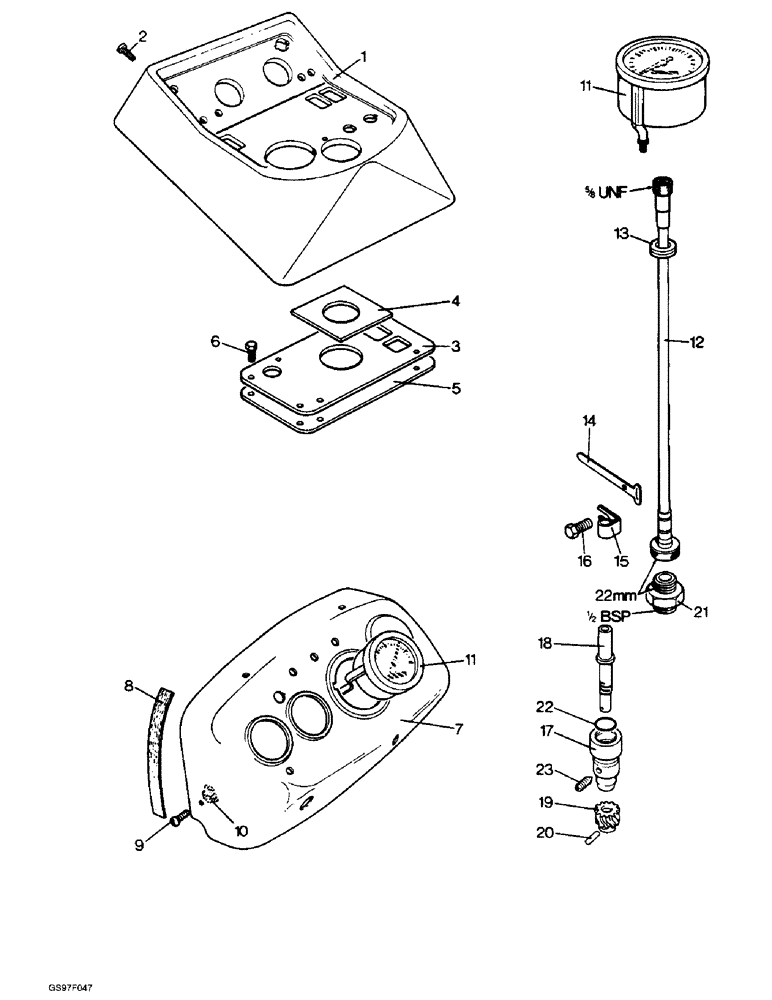

Запчасти Case IH 885 (3-18) - INSTRUMENT PANEL AND ENGINE SPEED INDICATOR (03) - FUEL SYSTEM

1

K950368

PANEL

- instrument, used with 885Q and 885QH tractors, no longer available

1шт.

1

K956302

PANEL

- instrument, used with 885Sk tractors, no longer available

1шт.

2

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch, panel to console, used with 885Q, 885QH and 885Sk tractors (Replaces screw K614944)

4шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Panel to console, used with 885Q, 885QH and 885Sk tractors (Replaces washer K626340) #10

4шт.

3

K949467

COVER

PLATE - cover, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

4

K952780

SEAL

- cover plate, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

5

K949468

GASKET

- plate to console, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

6

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, plate to console, used with 885Q, 885QH and 885Sk tractors (Replaces bolt K602735)

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Plate to console, used with 885Q, 885QH and 885Sk tractors (Replaces washer K626341) 1/4"

6шт.

7

K948451

PANEL

- instrument, used with 885 and 885H tractors, no longer available, order panel K948452 and grommet K961959

1шт.

7

K954515

PANEL

- instrument, used with 885G tractors, no longer available

1шт.

7

K964851

PANEL

- instrument, used with 885N tractors, no longer available

1шт.

7

K948452

PANEL

- instrument (Replaces panel K948451)

1шт.

K961959

GROMMET

- blind

1шт.

8

K913391

STRIP

- seating, 9 inch (229 mm) long, used with 885, 885H and 885G tractors

2шт.

8

K946160

STRIP

- seating, 4 inch (102 mm) long, used with 885, 885H and 885G tractors, no longer available

2шт.

8

K913391

STRIP

- seating, 9 inch (229 mm) long, used with 885N tractors

3шт.

9

K615403

SCREW

- hex, No. 10 NF x 3/8 inch, used with 885, 885H and 885G tractors

2шт.

9

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch, used with 885, 885H and 885G tractors (Replaces screw K615404)

2шт.

10

K624583

NUT

- captive, No. 10 NF, used with 885, 885H, 885N and 885G tractors

4шт.

11

K952148

GAUGE

INDICATOR - engine speed, Smiths 8291/00, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

11

K942227

SPEEDOMETER

INDICATOR - engine speed, Smiths RN 8272/73, used with 885, 885H, 885N and 885G tractors, no longer available

1шт.

11

K945205

SPEEDOMETER - Smiths, highway tractors, used with 885Q and 885QH tractors, no longer available

1шт.

11

K925101

ELECTRICAL GAUGE

SPEEDOMETER - AC-Delco, highway tractors, used with 885 and 885H tractors, no longer available

1шт.

12

K954955

FLEXIBLE DRIVE SHAFT

CABLE ASSEMBLY - complete, Smiths, 49 inch (1250 mm) long (Replaces cable assembly K951522)

1шт.

K951523

CABLE

- inner, Smiths, 50-1/4 inch, order cable assembly

1шт.

13

K627704

GROMMET

- cable to cover plate, used with 885Q, 885QH and 885Sk tractors

1шт.

14

K10518

BUCKLE

CLIP - buckle, used with 885, 885H 885N and 885G tractors

1шт.

15

K917954

CLIP

- cable to cylinder block, used with 885, 885H, 885N and 885G tractors

1шт.

16

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Cable to cylinder block, used with 885, 885H 885N and 885G tractors (Replaces bolt K602982) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

K19472

WASHER

- flat, 3/8 inch, cable to cylinder block, used with 885, 885H 885N and 885G tractors

1шт.

492-11038

LOCK WASHER,3/8"

cable to cylinder block, used with 885, 885H 885N and 885G tractors (Replaces washer K19482) 3/8"

1шт.

17

K908181

HOUSING

- speed indicator

1шт.

18

K908182

DRIVE

SPINDLE - speed indicator

1шт.

19

K908183

DRIVE

GEAR - driven, 13 teeth

1шт.

20

138-317

LOCK PIN,1/8" x 5/8", Slotted

PIN, (Replaces pin K623933) 1/8" x 5/8", Slotted

1шт.

21

K948532

ADAPTER

- speed indicator, 1/2 BSP-22mm

1шт.

K626957

WASHER

- fibre, 7/8 inch

1шт.

22

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

Speed indicator (Replaces O-ring K24556) -210, 70 Duro, .734" ID x .139" Thk

1шт.

23

K928265

SCREW,5/16" - 18 x 1-1/16"

- special, 5/16 inch NC

1шт.

B90396

HARDWARE

NUT - lock, 5/16 inch NC, no longer available

1шт.
