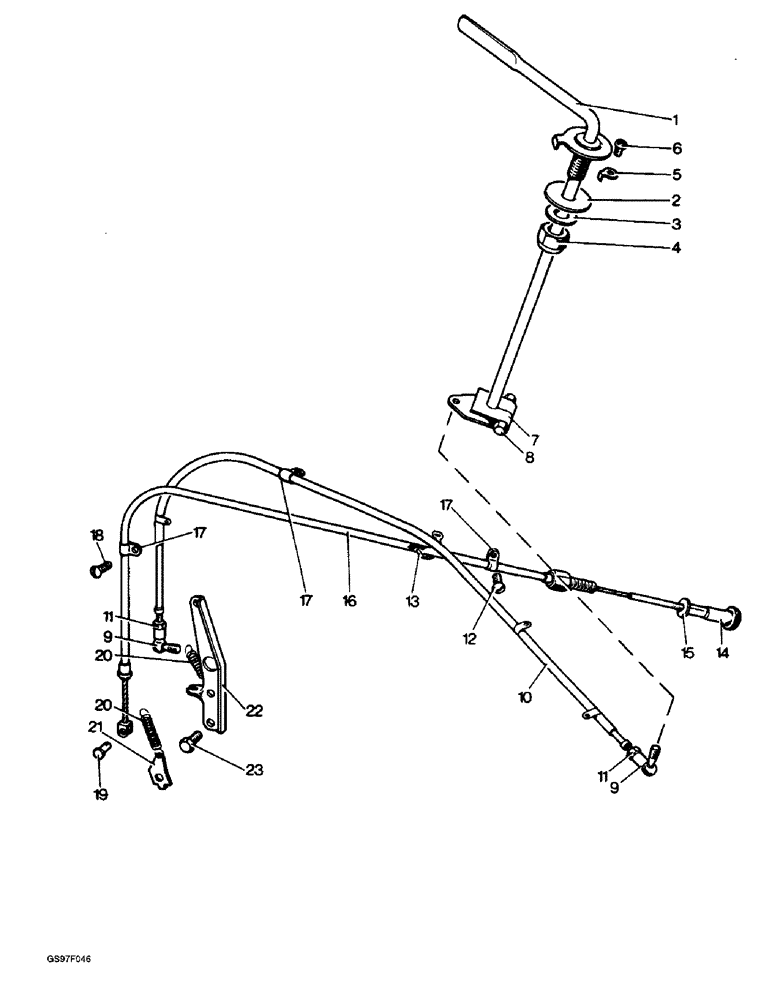

Запчасти Case IH 885 (3-16) - ENGINE THROTTLE AND STOP CONTROLS, 885 NARROW TRACTORS (03) - FUEL SYSTEM

1

K926418

LEVER

- hand, no longer available

1шт.

2

K85546

DISC

- friction

1шт.

3

K626740

WASHER

- flat, Belleville, 5/8 inch

1шт.

K19475

WASHER

- flat, 5/8 inch

1шт.

4

K623003

NUT

- Nyloc, 5/8 inch BSF, no longer available

1шт.

5

K910157

WASHER

PAD - stop

2шт.

6

K603924

SCREW

- hex, 1/4 NC x 1/2 inch, no longer available

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut K607043)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

2шт.

7

K89255

LEVER

- throttle control

1шт.

8

413-422

BOLT,Hex, 1/4" - 20 x 1-3/8", Gr 5

- hex, 1/4 NC x 1-3/8 inch (Replaces bolt K600144)

1шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut K607000)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K19480) 1/4"

1шт.

9

K621900

UNIVERSAL JOINT

BALL - joint

2шт.

K19401

NUT

- hex, 1/4 inch BSF

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K19480) 1/4"

2шт.

10

K923229

BOWDEN CONTROL

CABLE - inner and outer, throttle control

1шт.

11

225-14210

NUT,#10-32

(Replaces nut K617080) #10-32

2шт.

12

K12189

SCREW

- hex, 2 BA x 1/2 inch

1шт.

K11109

NUT

- hex, 2 BA

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer K19488) #10

2шт.

13

702093C1

CABLE TIE

CLIP - buckle

4шт.

14

K916844

KNOB

- engine stop

1шт.

15

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

- flat, 13/64 x 3/4 x 1/16 inch (Replaces washer K12939)

1шт.

225-14210

NUT,#10-32

(Replaces nut K617080) #10-32

1шт.

16

K918845

CABLE

- inner and outer, stop control

1шт.

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex jam, 1/4 inch NF (Replaces nut K617050)

2шт.

17

K621638

CLIP

- cable

2шт.

18

K12189

SCREW

- hex, 2 BA x 1/2 inch

1шт.

K11109

NUT

- hex, 2 BA

1шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer K19488) #10

1шт.

19

K913180

PIN

- pump lever

1шт.

20

K624938

SPRING

- return

2шт.

21

K913184

ANCHOR

- throttle control

1шт.

K626682

WASHER

- flat, 5/16 inch (Replaces washer K19471)

1шт.

22

K947353

BRACKET

- throttle and stop cables

1шт.

23

K612700

SET SCREW,1/4" - 28 x 3/8"

- hex, 1/4 NC x 3/8 inch, bracket to injection pump, no longer available

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Bracket to injection pump (Replaces washer K19480) 1/4"

2шт.

K617500

NUT

- special, 1/4 inch NF, spring anchor, no longer available

1шт.
