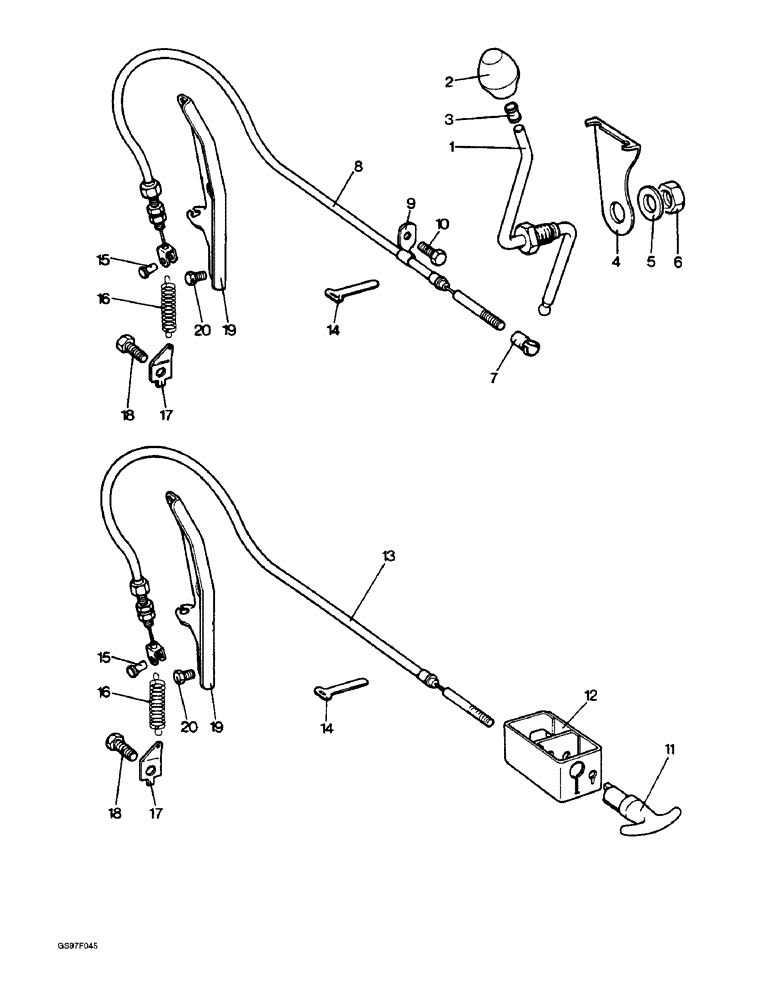

Запчасти Case IH 885 (3-14) - ENGINE STOP CONTROL, 885, 885G, 885H, 885Q, 885QH AND 885SK TRACTORS (03) - FUEL SYSTEM

1

K950709

LEVER ASSY.

LEVER - hand, stop control, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

2

K951154

KNOB

- stop control, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

3

K628473

RING

- retaining, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

4

K950713

QUADRANT

- stop lever, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

5

K626759

WASHER

- special, 5/8 inch, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

6

425-1510

JAM NUT,Jam, 5/8"-18, G5

hex jam, 5/8 inch NF, Used with 885Q, 885QH and 885Sk tractors (Replaces nut K622810)

1шт.

7

K621901

BALL JOINT

SOCKET - end, used with 885Q, 885QH and 885Sk tractors

1шт.

225-14210

NUT,#10-32

Used with 885Q, 885QH and 885Sk tractors (Replaces nut K617080) #10-32

1шт.

8

K950873

CABLE

- inner and outer, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

9

K621714

CLIP

- stop control, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

10

K603924

SCREW

- hex, 1/4 NC x 1/2 inch, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Used with 885Q, 885QH and 885Sk tractors (Replaces washer K626341) 1/4"

1шт.

11

K947418

HANDLE

KNOB - stop control, used with 885, 885H and 885G tractors

1шт.

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

- flat, 13/64 x 3/4 x 1/16 inch, used with 885, 885H and 885G tractors (Replaces washer K12939)

1шт.

225-14210

NUT,#10-32

Used with 885, 885H and 885G tractors (Replaces nut K617080) #10-32

1шт.

12

K943270

BRACKET

- stop control, used with 885, 885H and 885G tractors

1шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Bracket to tank support, used with 885, 885H and 885G tractors (Replaces washer K626340) #10

2шт.

225-14108

NUT,#8-32

- hex, No. 10 NC, bracket to tank support, used with 885, 885H and 885G tractors (Replaces nut K607040)

2шт.

13

K918846

CABLE

- inner and outer, used with 885, 885H and 885G tractors

1шт.

14

702093C1

CABLE TIE

CLIP - buckle

4шт.

15

K913180

PIN

- clevis, 1/4 x 1/2 inch

1шт.

16

K624938

SPRING

- return

1шт.

17

K913184

ANCHOR

- return spring

1шт.

K626682

WASHER

- flat, 5/16 inch (Replaces washer K19471)

1шт.

18

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Replaces bolt K602804) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

19

K947353

BRACKET

- injection pump controls

1шт.

20

K612700

SET SCREW,1/4" - 28 x 3/8"

- hex, 1/4 NF x 3/8 inch, bracket to pump, no longer available

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Bracket to pump (Replaces washer K19480) 1/4"

2шт.
