Запчасти Case IH 885 (3-06) - FUEL TANK (03) - FUEL SYSTEM

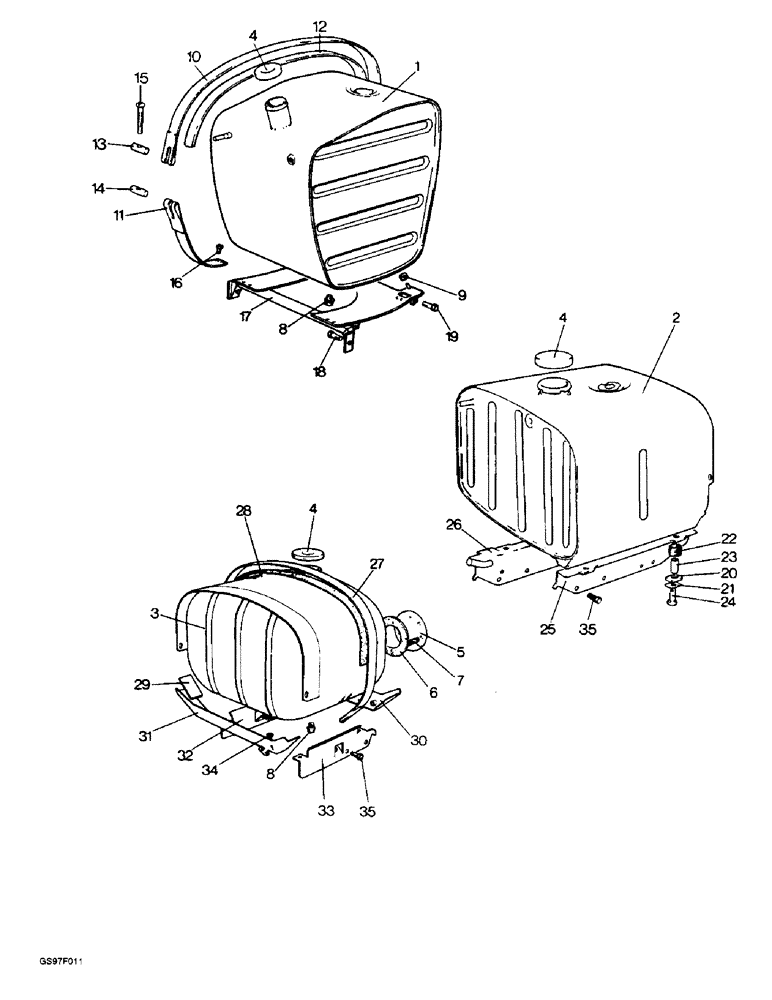

Схема запчастей Case IH 885 - (3-06) - FUEL TANK (03) - FUEL SYSTEM
3
33
1
22
28
11
4
13
16
14
5
35
4
31
20
35
8
30
25
24
7
2
19
21
12
29
34
23
17
4
18
6
8
10
32
27
9
26
15

Артикул

Название

Примечание

Количество

1

K949390

TANK

ASSEMBLY - fuel, with filler cap, used with 885Q, 885QH, 885Sk and 885LP tractors, no longer available, Includes: Ref. 4 - 7, Washer, and Nut

1шт.

2

K963616

TANK

ASSEMBLY - fuel, with filler cap, used with 885, 885H and 885G tractors (Replaces tank assembly), Includes: Ref. 4 - 7, Washer, and Nut

1шт.

3

K962380

TANK

ASSEMBLY - fuel, with filler cap, used with 885N tractors, no longer available as an assembly, order components, Includes: Ref. 4 - 7, Washer, and Nut

1шт.

4

K304590

CAP

- filler (Replaces cap K901983)

1шт.

5

K962140

PLATE

- blanking, fuel gauge aperture, used with 885N tractors

1шт.

6

K916485

GASKET

- fuel gauge aperture, used with 885N tractors

1шт.

7

K617980

STUD

- No. 10 NF x 11/16 inch, fuel gauge aperture, used with 885N tractors, no longer available

5шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Fuel gauge aperture, used with 885N tractors #10

5шт.

225-14210

NUT,#10-32

Fuel gauge aperture, used with 885N tractors #10-32

5шт.

8

K19591

PLUG

- drain, 1/8 BSP

1шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

- fibre, 3/8 inch

1шт.

9

K627718

GROMMET,3/8" ID x 5/8" Groove Dia

- fuel tank, 5/8 inch diameter, used with 885Q, 885QH, 885Sk and 885LP tractors

2шт.

10

K951472

STRAP

- upper, used with 885Q, 885QH, 885Sk and 885LP tractors, no longer available

2шт.

11

K951474

STRAP

- lower, used with 885Q, 885QH, 885Sk and 885LP tractors, no longer available

2шт.

12

K953479

TAPE

STRIP - packing, used with 885Q, 885QH, 885Sk and 885LP tractors, cut from bulk roll RK953479 below (Replaces strip K953479)

1шт.

13

K951540

TRUNNION

- plain, strap to strap, used with 885Q, 885QH, 885Sk and 885LP tractors, no longer available

2шт.

14

K951539

TRUNNION

- fuel tank, 1/4 inch NC, strap to strap, used with 885Q, 885QH, 885Sk and 885LP tractors

2шт.

15

K602744

BOLT

- fuel tank, 1/4 NC x 3 inch, strap to strap, used with 885Q, 885QH, 885Sk and 885LP tractors, no longer available

2шт.

16

K604094

SCREW

- hex, 1/4 NC x 5/8 inch, straps to support, used with 885Q, 885QH, 885Sk and 885LP tractors

8шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, straps to support, used with 885Q, 885QH, 885Sk and 885LP tractors (Replaces nut K607043)

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Straps to support, used with 885Q, 885QH, 885Sk and 885LP tractors (Replaces washer K626341) 1/4"

8шт.

17

K955749

CONTACT

SUPPORT - bridge and tank, used with 885Q and 885QH tractors, tractor serial number 11010300 and after, no longer available

1шт.

17

K951431

TANK

SUPPORT - bridge and tank, used with 885Q and 885QH tractors, tractor serial numbers prior to 11010300, no longer available

1шт.

17

K953831

TANK

SUPPORT - bridge and tank, used with 885Sk tractors, no longer available

1шт.

17

K965748

PUMP

SUPPORT - bridge and tank, used with 885LP tractors

1шт.

18

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

- hex, 7/16 NC x 2 inch, bridge piece to cab, used with 885Q and 885QH tractors (Replaces bolt K600714)

2шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Bridge piece to cab, used with 885Q and 885QH tractors (Replaces washer K626344) 7/16"

2шт.

RK953479

TAPE

STRIP - bulk, 590 inch (15 meters) long

1шт.

19

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Bridge piece to cab, four used with 885Q and 885QH tractors, six used with 885Sk and 885LP tractors Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

492-11038

LOCK WASHER,3/8"

bridge piece to cab, four used with 885Q and 885QH tractors, six used with 885Sk and 885LP tractors 3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

Bridge piece to cab, four used with 885Q and 885QH tractors, six used with 885Sk and 885LP tractors (Replaces nut K607045) 3/8"-16, G5

1шт.

K19472

WASHER

- flat, 3/8 inch, bridge piece to cab, four used with 885Q and 885QH tractors, six used with 885Sk and 885LP tractors

1шт.

20

K915725

WASHER

- rubber, tank to support brackets, used with 885, 885H and 885G tractors

4шт.

21

K915726

PLATE

- clamping, tank to support brackets, used with 885, 885H and 885G tractors

4шт.

22

K626462

DAMPER

BUSHING - rubber, tank to support brackets, used with 885, 885H and 885G tractors

4шт.

23

K627006

TUBE

- distance, tank to support brackets, used with 885, 885H and 885G tractors, no longer available

4шт.

24

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Tank to support brackets, Used with 885, 885H and 885G tractors (Replaces bolt K600150) Hex, 1/4"-20 x 1 1/2", G5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Tank to support brackets, used with 885, 885H and 885G tractors (Replaces washer K626341) 1/4"

4шт.

25

K945965

SUPPORT

BRACKET - support, left-hand, used with 885, 885H and 885G tractors, no longer available

1шт.

26

K945994

TANK

BRACKET - support, right-hand, used with 885, 885H and 885G tractors, no longer available

1шт.

27

K919349

STRAP - used with 885N tractors, no longer available

1шт.

28

K17721

PAD

STRIP - seating, used with 885N tractors, no longer available

1шт.

29

K98449

PAD - seating, used with 885N tractors, no longer available

4шт.

425-106

NUT,3/8"-16, Cl 5

Used with 885N tractors (Replaces nut K607002) 3/8"-16, G5

2шт.

492- 11038

WASHER - lock, 3/8 inch, used with 885N tractors (Replaces washer K19482)

2шт.

30

K913336

TANK

SUPPORT - tank, front, used with 885N tractors, no longer available

1шт.

31

K920919

SUPPORT - tank, rear, used with 885N tractors, no longer available

1шт.

32

K913341

BRACKET

SUPPORT - tank, left-hand, used with 885N tractors, no longer available

1шт.

33

K913342

TANK

SUPPORT - tank, right-hand, used with 885N tractors

1шт.

34

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch, supports to brackets, used with 885N tractors (Replaces bolt K602702)

4шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, supports to brackets, used with 885N tractors (Replaces nut K607000)

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Supports to brackets, used with 885N tractors (Replaces washer K19480) 1/4"

4шт.

K626662

WASHER

- flat, 1/4 inch, supports to brackets, used with 885N tractors (Replaces washer K19470)

4шт.

35

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Brackets to clutch housing, used with 885, 885H, 885G and 885N tractors (Replaces bolt K602982) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

492-11038

LOCK WASHER,3/8"

brackets to clutch housing, used with 885, 885H, 885G and 885N tractors (Replaces washer K19482) 3/8"

4шт.

Выбрано товаров: 55
