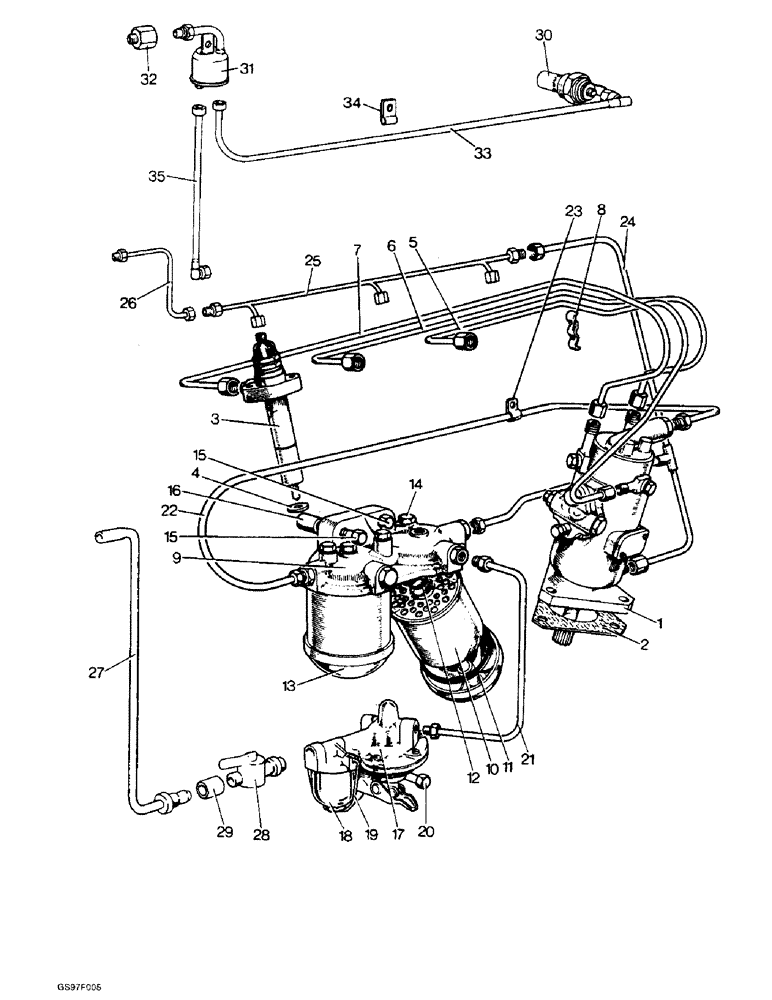

Запчасти Case IH 885 (3-02) - INJECTION PUMP AND FUEL SYSTEM (03) - FUEL SYSTEM

1

K916784

PUMP

- fuel injection, CAV 3233000, no longer available

1шт.

2

K68349

GASKET

- fuel injection pump

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut K607001)

3шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

3шт.

K626682

WASHER

- flat, 5/16 inch (Replaces washer K19471)

3шт.

3

K954826

INJECTOR ASSY.

INJECTOR ASSEMBLY - engine serial number E43947 and after, no longer available, Includes: Holder and Nozzle

3шт.

K942175

NOZZLE CAP

HOLDER - injector, CAV BKBL 97S5153, engine serial number E43947 and after, no longer available (Replaces holder K954827)

1шт.

K942176

NOZZLE CAP

NOZZLE - injection, CAV BDLL 140S6592

1шт.

K620460

ADAPTER

- injector leak-off, 8mm - 1/8 BSP, engine serial number E43947 and after

3шт.

3

K942175

NOZZLE CAP

INJECTOR ASSEMBLY - engine serial numbers prior to E43947, no longer available, Includes: Ref. 4, Holder, and Nozzle

3шт.

K942175

NOZZLE CAP

HOLDER - injector, CAV BKBL 97S5152, engine serial numbers prior to E43947, no longer available (Replaces holder K904261)

1шт.

K942176

NOZZLE CAP

NOZZLE - injector, CAV BDLL 140S6592

1шт.

4

F62390

WASHER,10mm ID x 21.01mm OD x 2.08mm Thk

- copper (Replaces washer K901092)

1шт.

5

K908162

PIPE

- fuel, injection pump to No. 1 cylinder

1шт.

6

K908164

PIPE

- fuel, injection pump to No. 2 cylinder

1шт.

7

K908166

PIPE

- fuel, injection pump to No. 3 cylinder

1шт.

K900845

NUT

NUT - union, injector pipes

6шт.

K947203

FERRULE

OLIVE - injector pipe, 7/32 inch ID

6шт.

K900846

FERRULE

OLIVE - injector pipe, 9/32 inch ID

6шт.

8

K908168

WASHER

CLIP - injector pipes

2шт.

K12217

SCREW,0.185" x 5/8"

- 2 BA x 5/8 inch, injector pipes

2шт.

K11109

NUT

- injector pipes, 2 BA

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer K19488) #10

2шт.

9

B506443

HEAD

FILTER HEAD - fuel

1шт.

REF. 9 B506443 IS A DUAL FILTER COVER WITH ALL THE CONNECTION HOLES. NO BLEED SCREWS COME WITH IT. FILTR HEAD IS THE DESCRIPTION.

1шт.

10

K960911

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order K960911MP

ELEMENT - fuel filter, no longer available, order kit 3044506R93

2шт.

11

K960936

RING

WASHER - sealing, supplied with element, no longer available

4шт.

12

K960937

O-RING

- small

2шт.

13

K962264

COVER

BASE - fuel filter

2шт.

413-576

BOLT,Hex, 5/16" - 18 x 4-3/4", Gr 5

- hex, 5/16 NC x 4-3/4 inch, body to base (Replaces bolt K600360)

2шт.

K963409

RING

SEAL - ring, Serial Range: body-base

2шт.

14

K965010

PLUG

- event, 5/16 NC

1шт.

K963853

WASHER

- flat, 5/16 inch (Replaces washer K14734)

1шт.

15

113-2240

BOLT,Hex, 3/8" - 16 x 2-1/8", Gr 5

Filter to cylinder block Hex, 3/8"-16 x 2 1/8", G5

2шт.

492-11038

LOCK WASHER,3/8"

filter to cylinder block (Replaces washer K19482) 3/8"

2шт.

K11762

COPPER WASHER

- copper-asbestos, 3/8 inch, filter to cylinder block

2шт.

16

K627041

BUSHING

SPACER - distance, filter to cylinder block

2шт.

17

K311938

FEED PUMP

PUMP ASSEMBLY - fuel feed (Replaces pump assembly K908819), Includes: Ref. 18 - 19, Diaphragm, and Screen

1шт.

K911917

DIAPHRAGM

- fuel feed pump

1шт.

K961732

FILTER

SCREEN - filter, no longer available

1шт.

18

K961733

BOWL

- filter

1шт.

K34065

SEAL

GASKET - fuel feed pump (Replaces gasket K961734)

1шт.

19

K262805

BOWL

STIRRUP - fuel feed pump, includes screw (Replaces stirrup K961735)

1шт.

K902136

GASKET

- feed pump to cylinder block

1шт.

3044506R93

FILTER, FUEL

KIT - service, fuel filter element

1шт.

20

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch, feed pump to cylinder block (Replaces bolt K602807)

2шт.

K626682

WASHER

- flat, 5/16 inch, feed pump to cylinder block (Replaces washer K19471)

2шт.

K626653

WASHER,8.33mm ID x 14.29mm OD x 2.38mm Thk

- flat, 5/16 inch

2шт.

K911928

PUSH ROD,9.51mm OD x 35.99mm L

- push, feed pump

1шт.

21

K908169

PIPE,0.25" OD x 5.594, 1.641" L

- fuel, feed pump to filter

1шт.

22

K908171

PIPE,0.25" OD

- filter to injection pump

1шт.

23

K621619

CLIP

- fuel pipe , no longer available

1шт.

K621646

CLIP

- fuel pipe

1шт.

24

K204094

PIPE

- fuel, filter to leak-off pipe (Replaces pipe K908173)

1шт.

25

K947325

PIPE

- leak-off

1шт.

26

K204385

FUEL TUBE,0.187" OD x 10" L

PIPE - leak-off to tank, used with 885Q, 885QH and 885Sk tractors (Replaces pipe K948999)

1шт.

26

K948150

PIPE,0.187" OD x 4.062, 2.625" L

- leak-off to tank, used with 885, 885H, 885G and 885N tractors

1шт.

27

K948995

PIPE

- fuel, tank to feed pump, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

27

K943320

HOSE,0.312" OD x 22" L

PIPE - fuel, tank to feed pump, used with 885, 885H, 885G and 885N tractors

1шт.

27

K913388

PIPE

- fuel, tank to feed pump, used with 885N tractor, no longer available

1шт.

28

K622061

VALVE

TAP - fuel, used with 885, 885H and 885G tractors for Denmark only

1шт.

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Fuel tap, used with 885, 885H and 885G tractors for Denmark only (Replaces O-ring K14573) -011, 90 Duro, .301" ID x .070" Thk

1шт.

29

K626076

FITTING

UNION - fuel tap, 1/2 NF x 1/2 inch NF, used with 885, 885H and 885G tractors for Denmark only

1шт.

K626950

WASHER

- fibre, 7/16 inch ID, used with 885, 885H and 885G tractors for Denmark only, no longer available

1шт.

K951062

EXTENSION

- fuel tap, used with 885, 885H and 885G tractors for Denmark only

1шт.

30

K179600

THERMOSTAT

THERMOSTART ASSEMBLY - U1796, no longer available as an assembly, order components (Replaces thermostart assembly K931338), Includes: Ref. 30 - 39

1шт.

30

K928523

GLOW PLUG

THERMOSTART - CAV 1854102

1шт.

K626957

WASHER

- fibre, 7/8 inch

1шт.

31

K944744

RESERVOIR

- thermostart

1шт.

32

K618900

ADAPTER

- thermostart, 1/2 - 3/8 inch NF

1шт.

33

K205364

HOSE,0.187" OD x 19" L

PIPE - reservoir to thermostart (Replaces pipe K947314)

1шт.

34

K621681

CLIP

- thermostart

2шт.

35

K947316

PIPE

- leak-off to reservoir, no longer available

1шт.

36

K626521

SEALING WASHER

WASHER - lock, 3/8 inch, not shown

1шт.

37

K950194

DECAL

- ignition switch, not shown

1шт.

38

3107556R92

SWITCH ASSY

SWITCH - ignition, not shown

1шт.

39

534211R1

SPRING WASHER

- lock, 21/32 OD, not shown

1шт.
