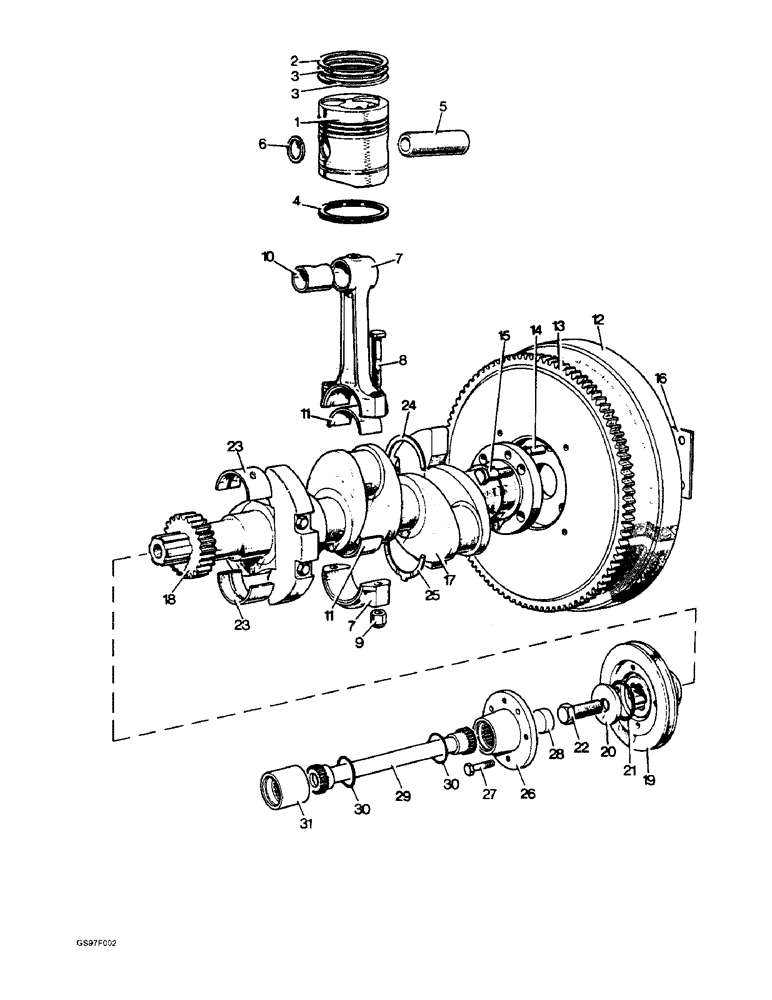

Запчасти Case IH 885 (2-18) - CRANKSHAFT AND PISTONS (02) - ENGINE

K949474

PISTON & RINGS KIT

PISTON ASSEMBLY - standard, Includes: Ref. 1 - 6

3шт.

1

NSS

NOT SOLD SEPARAT

PISTON - standard, order piston assembly

1шт.

K261069

SET OF RINGS

KIT - piston ring, Includes: Ref. 2 - 4

1шт.

2

K943881

RING, PISTON

RING - piston, No. 1 compression, order kit

1шт.

3

K943882

RING, PISTON

RING - piston, No. 2 and 3 compression, order kit

2шт.

4

K206956

RING, PISTON

RING - piston, scraper, order kit (Replaces ring K917409)

1шт.

5

K904370

PIN

- gudgeon

1шт.

6

K34501

RING, SNAP

RING - snap, 1-1/4 inch ID, piston

2шт.

7

K80043

ROD, CONNECTING

ROD ASSEMBLY - connecting, Includes: Ref. 8 - 10

3шт.

8

K207581

STEP BOLT

- special, connecting rod, 7/16 BSP (Replaces bolt K905198)

2шт.

9

K623151

LOCK NUT

- self-locking, 7/16 inch BSP

2шт.

10

K31669

BEARING

BUSHING - small end

1шт.

11

K207436

HALF-BEARING, CRANKS

BEARING - standard, large end, two halves (Replaces bearing K911904)

6шт.

12

K910150

FLYWHEEL

ASSEMBLY - includes starter ring , no longer available, Includes: Ref. 13

1шт.

13

K36134

GEAR

RING - starter

1шт.

14

K10629

PIN

- dowel, 1/2 x 15/16 inch, flywheel

1шт.

15

K903431

STEP BOLT

- special, 7/16 NF x 1-11/16 inch, flywheel

4шт.

B88353

NUT - hex, 7/16 inch NF (Replaces nut K616988)

4шт.

16

K910883

WASHER

- tap

1шт.

K912323

HOUSING

DISC - locating

1шт.

17

K961726

CRANKSHAFT

- includes bearings and thrust washer, no longer available, order crankshaft K912017, bearing K207436, Ref. 11, bearing K928540, Ref. 23 and washers K928542 and K928543, Ref. 24 and 25

1шт.

17

K912017

CRANKSHAFT

- includes balance weights

1шт.

K915423

BOLT

- hex, 3/8 NC x 2-1/2 inch, balance, Serial Range: weights-crankshaft

4шт.

K626372

WASHER

- tap, balance, Serial Range: weights-crankshaft

4шт.

K19167

BALL BEARING,22.23mm ID x 50.8mm OD x 14.29mm W

BEARING - ball, flywheel spigot

1шт.

18

K907329

GEAR

- crankshaft

1шт.

19

K914836

PULLEY

- crankshaft

1шт.

20

K907328

WASHER

- crankshaft

1шт.

21

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

Pulley (Replaces O-ring K15594) -226, 70 Duro, 1.984" ID x .139" Thk

1шт.

22

114-640

BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5

(Replaces bolt K613304) Hex, 5/8"-18 x 1 1/4", G5

1шт.

23

K928540

HALF-BEARING, CRANKS

BEARING - main, upper and lower, standard

8шт.

24

K928542

SET

WASHER - thrust, upper, standard

2шт.

25

K928543

SET

WASHER - thrust, lower, standard

2шт.

26

K914837

COUPLING, BREAK AWAY

COUPLING - crankshaft pulley, no longer available

1шт.

27

13-430

BOLT,Hex, 1/4" - 20 x 1-7/8", Gr 5

- hex, 1/4 NC x 1-7/8 inch, if used (Replaces bolt K600009)

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , If used (Replaces washer K19480) 1/4"

4шт.

28

K627580

BUSHING

DISC - rubber, 5/16 inch, if used

1шт.

28

K627581

BUSHING

DISC - rubber, 7/16 inch, if used

1шт.

28

K627582

BUSHING

DISC - rubber, 9/16 inch, if used

1шт.

K910559

PLATE

DISC - steel, if used

1шт.

29

K914317

COUPLING, BREAK AWAY

DRIVESHAFT - pulley, no longer available

1шт.

30

K262773

O-RING

- 1-7/16 inch ID, pulley, if used (Replaces O-ring K623555)

2шт.

31

K910534

COUPLING, BREAK AWAY

COUPLING - pump, if used, no longer available

1шт.
