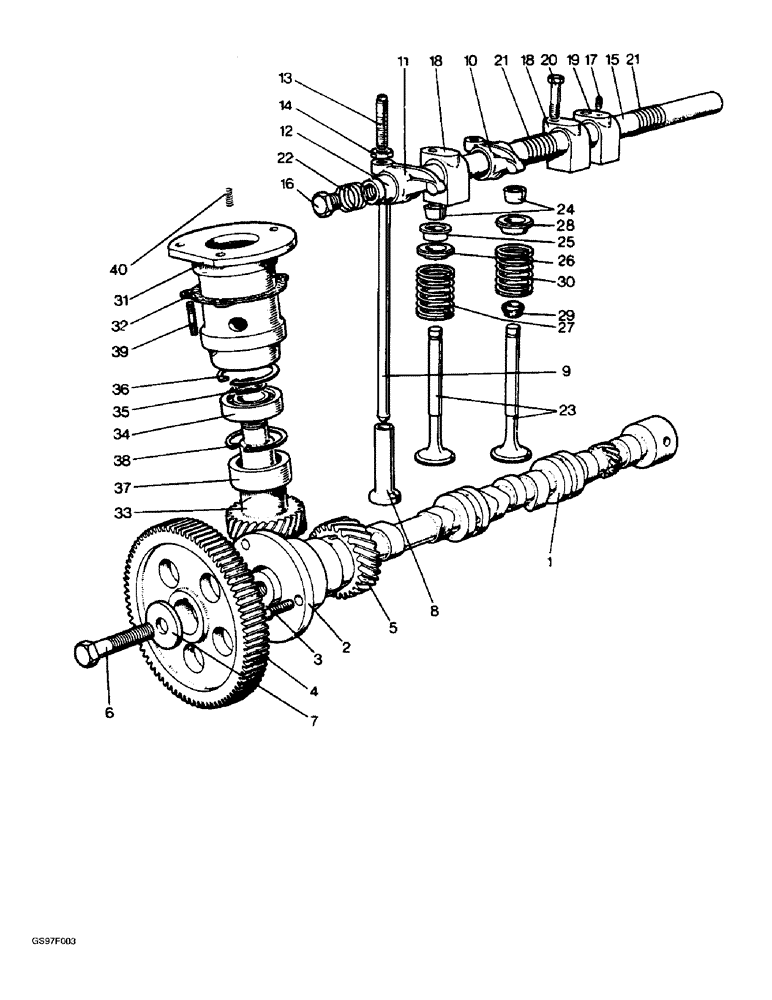

Запчасти Case IH 885 (2-14) - CAMSHAFT, VALVE MECHANISM AND TIMING GEARS (02) - ENGINE

1

K914527

CAMSHAFT

- engine

1шт.

2

K907336

HOUSING

- locating, no longer available

1шт.

3

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Replaces bolt K602804) Hex, 5/16"-18 x 7/8", G5, Full Thd

3шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

3шт.

4

K907335

PINION

GEAR - camshaft

1шт.

5

K909920

DRIVE

GEAR - injection pump drive

1шт.

126-15

WOODRUFF KEY,#8, 5/32" x 3/4"

2шт.

6

K907572

BOLT

- gear retaining, 1/2 NC x 2-1/4 inch

1шт.

7

K907571

WASHER

- special, 1/2 inch

1шт.

8

K901137

TAPPET

- valve rocker

6шт.

9

K902035

ROD

- push, valve rocker

6шт.

10

K63089

ROCKER

- valve, right-hand, with bushing (Replaces rocker K961052)

3шт.

11

K63090

ROCKER

- valve, left-hand, with bushing (Replaces rocker K961053)

3шт.

12

K11060

BUSHING

BUSH - valve rocker

6шт.

13

K900413

ADJUSTMENT SCREW,3/8" - 16 x 1 1/8"

- adjusting, 3/8 inch NC, valve rocker

6шт.

14

425-146

JAM NUT,3/8" - 16, Gr 5

- hex jam, 3/8 inch NC (Replaces nut B90397)

6шт.

15

K907920

TUBE

SHAFT - valve rocker

1шт.

16

K19590

PLUG

- valve rocker, 3/8 BSP

2шт.

17

K606051

SET SCREW,5/16" - 18 x 1/2"

- locating, 5/16 NC x 1/2 inch

1шт.

18

K921431

BRACKET

- rocker shaft, No. 1 and 2

2шт.

19

K921432

BRACKET

- rocker shaft, rear

1шт.

20

113-359

BOLT,Hex, 7/16" - 14 x 2-5/8", Gr 5

- hex, 7/16 NC x 2-5/8 inch (Replaces bolt K600611)

3шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer K19483) 7/16"

3шт.

K626314

WASHER

- flat, 7/16 inch (Replaces washer K19473)

3шт.

21

K11017

SPRING

- locating, intermediate

2шт.

22

K907919

WASHER

SPRING - locating, ends

2шт.

23

K928622

STD INLET VALVE

VALVE - inlet and exhaust

6шт.

24

K943439

LOCKING DEVICE

COTTERS - exhaust and inlet valve

12шт.

25

K928623

COLLAR

- inner, exhaust valve

3шт.

26

K928624

COLLAR

- outer, exhaust valve

3шт.

27

K921436

VALVE SPRING

SPRING - exhaust valve

3шт.

28

K921437

COLLAR

- inlet valve

3шт.

29

K940481

OIL SEAL

- inlet valve

3шт.

30

K921435

SPRING

- inlet valve

3шт.

31

K948193

HOUSING

- bearing

1шт.

32

K907922

GASKET

- housing to cylinder block

1шт.

33

K912483

GEAR

- driven, injection pump

1шт.

34

A31260

BALL BEARING,25 mm ID x 52 mm OD x 15 mm

BEARING - ball (Replaces bearing K24489)

1шт.

35

K11128

CIRCLIP

RING - snap, 1 inch OD, bearing housing

1шт.

36

K13170

RING, SNAP

RING - snap, 52 mm ID, bearing housing

1шт.

37

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

BEARING - needle roller, Torrington B2812

1шт.

38

K621680

SNAP RING,2.062", Int, #206

Ring, Snap, 2.062", Int, #206

1шт.

39

K608121

STUD

- bearing housing, 5/16 NC x 1-7/8 inch

3шт.

40

K624903

SPRING

- pump shaft location

1шт.
