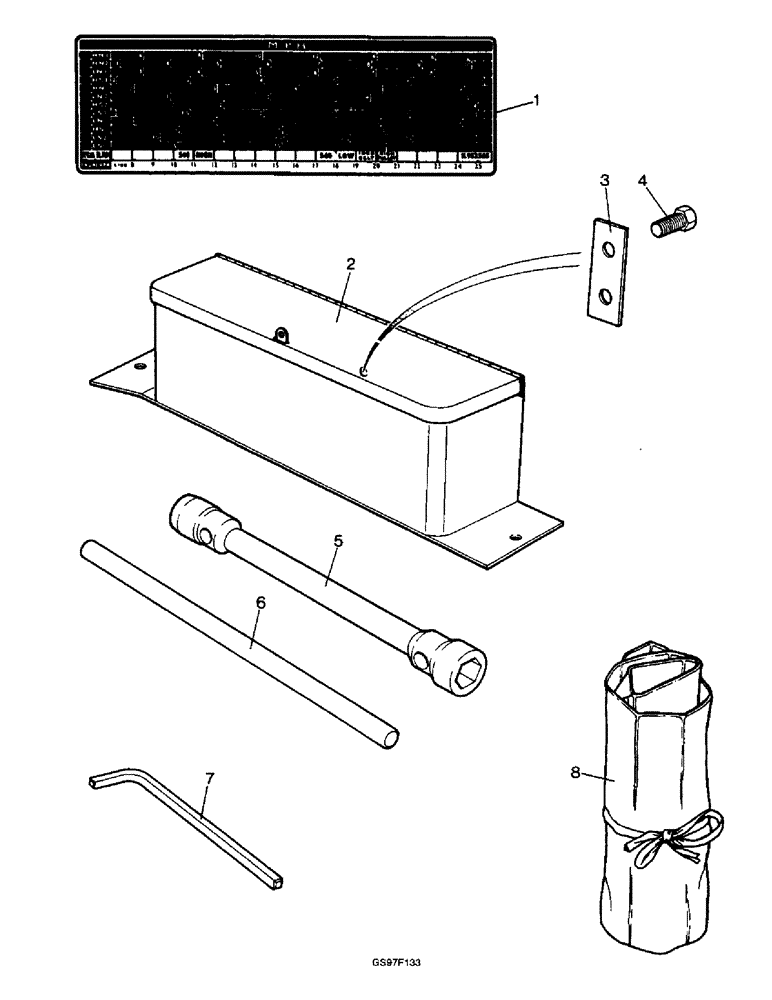

Запчасти Case IH 885 (9-94) - GEAR/SPEED CHARTS (09) - CHASSIS/ATTACHMENTS

1

K952565

INDICATOR

CHART - speed, MPH, 9/37 reductions and 12.4/11-28 tires, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

1

K952564

INDICATOR

CHART - speed, MPH, 9/37 reductions and 12.4/11-32 tires, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

1

K942977

DECAL

CHART - speed, MPH, 9/37 reductions and 12.4/11-32 tires, twelve speed, used with 885, 885H and 885G tractors

1шт.

1

K951235

DECAL

CHART - speed, KPH, 9/37 reductions and 14.9/13-28 tires, twelve speed, used with 885, 885H and 885G tractors (Replaces chart K942985)

1шт.

1

K942978

INDICATOR

CHART - speed, MPH, 9/37 reductions and 14.9/13-28 tires, six speed, used with 885, 885H and 885G tractors

1шт.

1

K942986

INDICATOR

CHART - speed, KPH, 9/37 reductions and 14.9/13-28 tires, six speed, used with 885, 885H and 885G tractors, no longer available

1шт.

1

K942979

DECAL

CHART - speed, MPH, 9/37 reductions and 13.6/12-28 tires, twelve speed, used with 885, 885H and 885G tractors, no longer available

1шт.

1

K942987

DECAL

CHART - speed, KPH, 9/37 reductions and 12.4/11-28 or 14.9/13-24 tires, twelve speed, used with 885, 885H and 885G tractors

1шт.

1

K942980

INDICATOR

CHART - speed, MPH, 9/37 reductions and 12.4/11-28 or 14.9/13-24 tires, six speed, used with 885, 885H and 885G tractors, no longer available

1шт.

1

K942988

INDICATOR

CHART - speed, KPH, 9/37 reductions and 12.4/11-28 or 14.9/13-24 tires, six speed, used with 885, 885H and 885G tractors, no longer available

1шт.

K926836

DECAL

- travel speed, KPH, 9/37 reductions and 12.4/11-28, 14.9/13-24 or 13.6/12-28 tires, used with 885, 885H and 885G tractors, no longer available

1шт.

K926837

INDICATOR

DECAL - travel speed, KPH, 19/36 reductions and 12.4/11-32 or 14.9/13-28 tires, used with 885, 885H and 885G tractors, no longer available

1шт.

1

K942983

INDICATOR

CHART - speed, MPH, 9/37 reductions and 9.5/9-24 tires, twelve speed, used with 885N tractors, no longer available

1шт.

1

K942991

INDICATOR

CHART - speed, KPH, 9/37 reductions and 9.5/9-24 tires, twelve speed, used with 885N tractors, no longer available

1шт.

1

K942979

DECAL

CHART - speed, MPH, 9/37 reductions and 12.4/11-28 or 11.2/10-28 tires, twelve speed

1шт.

1

K942987

DECAL

CHART - speed, KPH, 9/37 reductions and 12.4/11-28 or 11.2/10-28 tires, twelve speed, used with 885N tractors

1шт.

2

K952937

SUPPORT

TOOLBOX - used with 885Q, 885QH and 885Sk tractors, no longer available, tools

1шт.

2

K916389

BOX, TOOL

TOOLBOX - used with 885, 885H, 885G and 885N tractors, tools

1шт.

K952939

MOUNTING PARTS

PAD - mounting, toolbox to fender, used with 885Q, 885QH and 885Sk tractors, no longer available, tools

2шт.

K602736

SCREW

- set, 1/4 NC x 8 inch, toolbox to fender, used with 885Q, 885QH and 885Sk tractors, tools

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Toolbox to fender, used with 885Q, 885QH and 885Sk tractors (Replaces washer K626341), tools 1/4"

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, toolbox to fender, used with 885Q, 885QH and 885Sk tractors (Replaces nut K607043), tools

2шт.

3

K946776

PLATE

- clamping, used with 885Q, 885QH and 885Sk tractors, no longer available, toolbox and tools

1шт.

4

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

Used with 885Q, 885QH and 885Sk tractors (Replaces bolt K603304), Toolbox and tools Hex, 5/8"-11 x 1 1/4", G5, Full Thd

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Used with 885Q, 885QH and 885Sk tractors (Replaces washer K19485), toolbox and tools 5/8"

2шт.

5

K946622

KEY

BRACE - wheel, 1-5/16 x 1 inch A/F, no longer available, toolbox and tools

1шт.

6

K948095

CLEVIS PIN

BAR - tommy , no longer available, toolbox and tools

1шт.

7

K964971

KEY

WRENCH - transmission filler plug, no longer available, toolbox and tools

1шт.

8

K922741

WALLET - tool, no longer available, toolbox and tools

1шт.

K919894

SPECIAL WRENCH

WRENCH - square, 7/16 inch, no longer available, toolbox and tools

1шт.

K946622

KEY

BRACE - wheel, 1-5/16 x 1 inch A/F, toolbox and tools

1шт.

K906963

SCREW

PEG - engine timing, toolbox and tools

1шт.

K627607

SPANNER - 1-1/8 x 15/16 inch A/F, no longer available, toolbox and tools

1шт.

K627603

TOOL

SPANNER - 3/4 x 5/8 inch A/F, no longer available, toolbox and tools

1шт.

K627604

TOOL

SPANNER - 9/16 x 1/2 inch A/F, no longer available, toolbox and tools

1шт.

K627608

TOOL

SPANNER - 7/16 x 5/16 inch A/F, toolbox and tools

1шт.

K627609

SPANNER - box, 15/16 x 3/4 inch A/F, no longer available, toolbox and tools

1шт.

K627610

TOOL

SPANNER - box, 9/16 x 1/2 inch A/F, toolbox and tools

1шт.

K19806

BAR

- tommy, 5/16 x 6 inch, no longer available, toolbox and tools

1шт.

K948095

CLEVIS PIN

BAR - tommy, toolbox and tools

1шт.

K922744

SCREW

DRIVER - reversible, no longer available, toolbox and tools

1шт.

K19803

SCREWDRIVER - toolbox, no longer available, toolbox and tools

1шт.

K922743

TOOL

PLIERS - insulated, 7 inch, no longer available, toolbox and tools

1шт.
