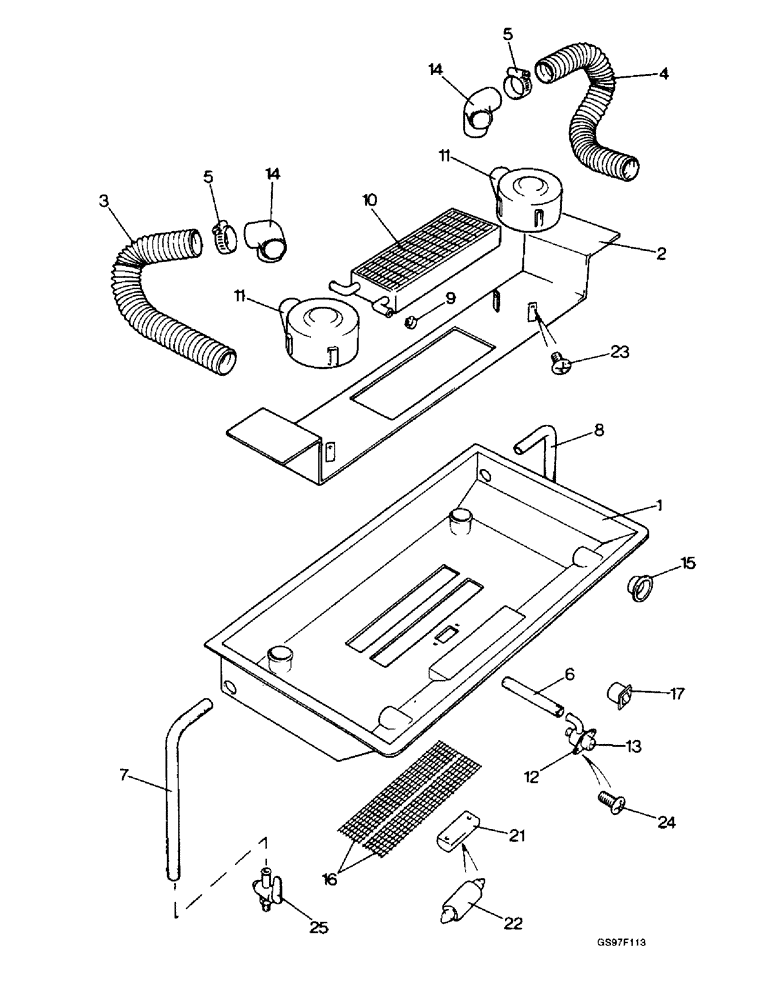

Запчасти Case IH 885 (9-88) - HEATER AND VENTILATOR, 885LP TRACTORS (09) - CHASSIS/ATTACHMENTS

K260069

HEATER

UNIT ASSEMBLY - heater and ventilator, Sekura 41.600, no longer available, Includes: Ref. 1 - 15

1шт.

1

K260070

HEATER

ROOF - inner, Sekura 41.615, no longer available

1шт.

2

K260071

MOUNTING PARTS

PLATE - mounting, Sekura 41.174, no longer available

1шт.

3

K260072

HOSE

- 19-11/16 inch (500 mm) long, Sekura 21.799, no longer available

1шт.

4

K260073

HOSE

- 15-3/4 inch (400 mm) long, Sekura 21.742, no longer available

1шт.

5

K260074

CLIP

- Sekura 918.006, no longer available

4шт.

6

K260075

HOSE

- 5/8 inch x 60 mm, Sekura 957.007.60, no longer available

1шт.

7

K260076

HOSE

- 5/8 inch x 60 mm, Sekura 957.007.2000, no longer available

1шт.

8

K260076

HOSE

- 5/8 inch x 60 mm, Sekura 957.007.2000, no longer available

1шт.

9

K965571

CLIP

- Sekura 918.002, no longer available

8шт.

10

K260077

RADIATOR

- Sekura 961.131, no longer available

1шт.

11

K260078

HEATER

BLOWER - Sekura 961.039, no longer available

2шт.

12

K260079

VALVE

CONTROL - temperature, Sekura 961.235, no longer available

1шт.

13

K303738

KNOB

- Sekura 961.520 (Replaces knob K260080)

1шт.

14

K260081

DISTRIBUTOR

HOSE - distributor, Sekura 21.905, no longer available

2шт.

15

K965436

NOZZLE CAP

NOZZLE - air, Sekura 10.182, no longer available

4шт.

16

K965457

GRILLE

- air intake, Sekura 40.275, no longer available

2шт.

17

K260082

SWITCH

- blower, Sekura 945.035, no longer available

1шт.

18

REF

INSTRUCTION

SWITCH - wiper, see Fig. 4-18

1шт.

19

REF

INSTRUCTION

SWITCH - washer, see Fig. 4-18

1шт.

20

REF

INSTRUCTION

SWITCH - interior lamp, see Fig. 4-18

1шт.

21

REF

INSTRUCTION

LAMP - interior, see Fig. 4-18

1шт.

22

REF

INSTRUCTION

BULB - see page 4-19

1шт.

23

K965535

SCREW

- Sekura 905.062, no longer available

6шт.

24

K965526

SCREW

- M5 x 15 mm, Sekura 900.043, no longer available

2шт.

25

K260083

CABLE

VALVE - Sekura 961.236, no longer available

2шт.

K260084

HEATER

UNIT ASSEMBLY - heater and ventilator, for building into cabs without heaters, no longer available

1шт.
