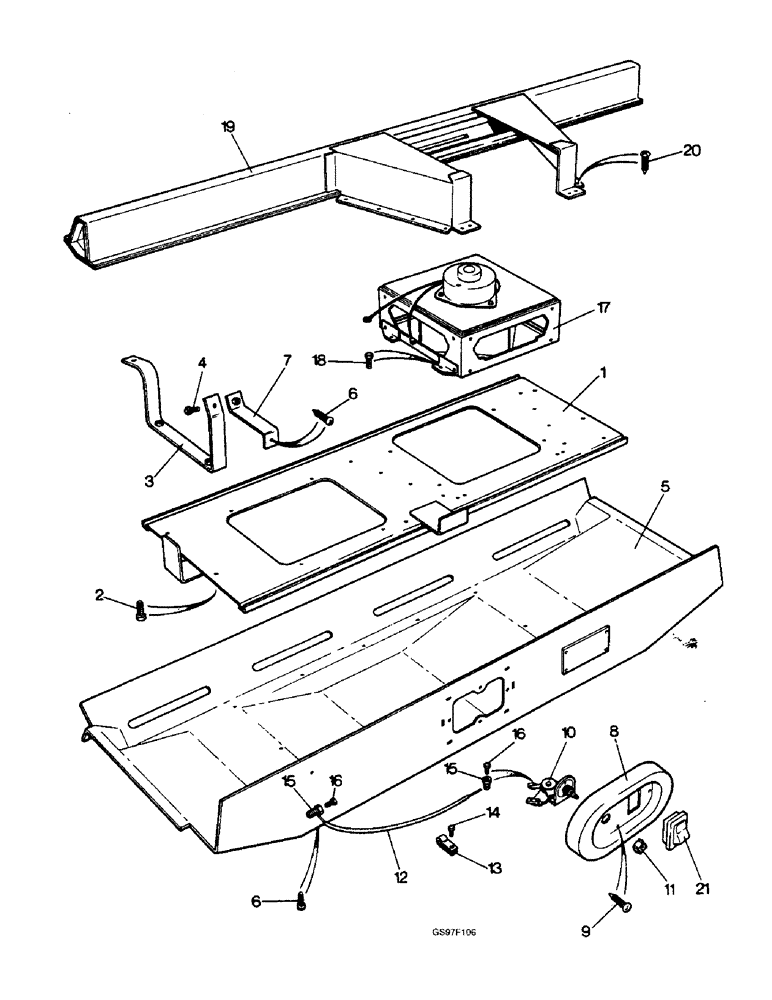

Запчасти Case IH 885 (9-84) - CAB HEATER UNIT, 885Q AND 885QH TRACTORS (09) - CHASSIS/ATTACHMENTS

1

K951420

BASE

PLATE - cab heater, no longer available

1шт.

2

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SCREW - set, 5/16 NC x 3/4 inch, baseplate to supports

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , baseplate to supports 5/16"

6шт.

3

K952504

SUPPORT

BRACKET - support, baseplate, no longer available

3шт.

4

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SCREW - set, 5/16 NC x 3/4 inch, support brackets to cab

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , support brackets to cab (Replaces washer K19481) 5/16"

6шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Support brackets to cab (Replaces nut K607044)

4шт.

5

K953373

COVER

- cab heater, no longer available

1шт.

6

K624528

SCREW

- self-tapping, No. 6 x 5/8 inch, no longer available

14шт.

K626760

WASHER

- cup, No. 6, no longer available

14шт.

7

K953390

SUPPORT

BRACKET - support, heater cover, no longer available

2шт.

8

K953372

PANEL

- control, no longer available

1шт.

9

K624529

PAN

SCREW - self-tapping, No. 6 x 7/8 inch, no longer available

4шт.

10

K952101

VALVE, CONTROL

CONTROL - water valve, no longer available

1шт.

11

K952783

KNOB

- water control, no longer available

1шт.

12

K952103

CABLE

- flexible, inner and outer, no longer available

1шт.

13

K621681

CLIP

- cable to radiator flange

1шт.

14

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch, cable to radiator flange (Replaces bolt K602840)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , cable to radiator flange (Replaces washer K19481) 5/16"

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Cable to radiator flange (Replaces nut K607044)

1шт.

15

K952104

TRUNNION

- inner cable

2шт.

16

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

- machine, pan head Phillips, No. 8 NC x 3/8", Trunnion (Replaces screw K603910)

2шт.

17

K953872

FAN

UNIT ASSEMBLY - fan, no longer available, Includes: Plate and Screw

1шт.

K951514

PLATE

- blanking, no longer available

1шт.

K624524

SCREW

- self-tapping, No. 6 x 3/8 inch, no longer available

4шт.

18

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch, fan unit to baseplate (Replaces bolt K602734)

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Fan unit to baseplate (Replaces washer K626341) 1/4"

4шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, fan unit to baseplate (Replaces nut K607043)

4шт.

19

K951440

DUCT

- demister, no longer available

1шт.

20

K624528

SCREW

- self-tapping, No. 6 x 5/8 inch, no longer available

12шт.

K952700

TAPE

STRIP - sealing, 6 x 20 mm x 8 inch (203 mm) long, no longer available

2шт.

K952701

TAPE

STRIP - sealing, 6 x 20 mm x 2 inch (51 mm) long, no longer available

2шт.

K952706

TAPE

STRIP - sealing, 6 x 12 mm x 9-1/2 inch (241 mm) long, no longer available

2шт.

K952705

TAPE

STRIP - sealing, 6 x 12 mm x 25-3/4 inch (654 mm) long, no longer available

2шт.

21

K953351

SWITCH

- heater fan, Lucas 5340620, no longer available

1шт.
