Запчасти Case IH 885 (9-72) - ADJUSTABLE ARMCHAIR SEAT, 885Q, 885QH AND 885SK TRACTORS (09) - CHASSIS/ATTACHMENTS

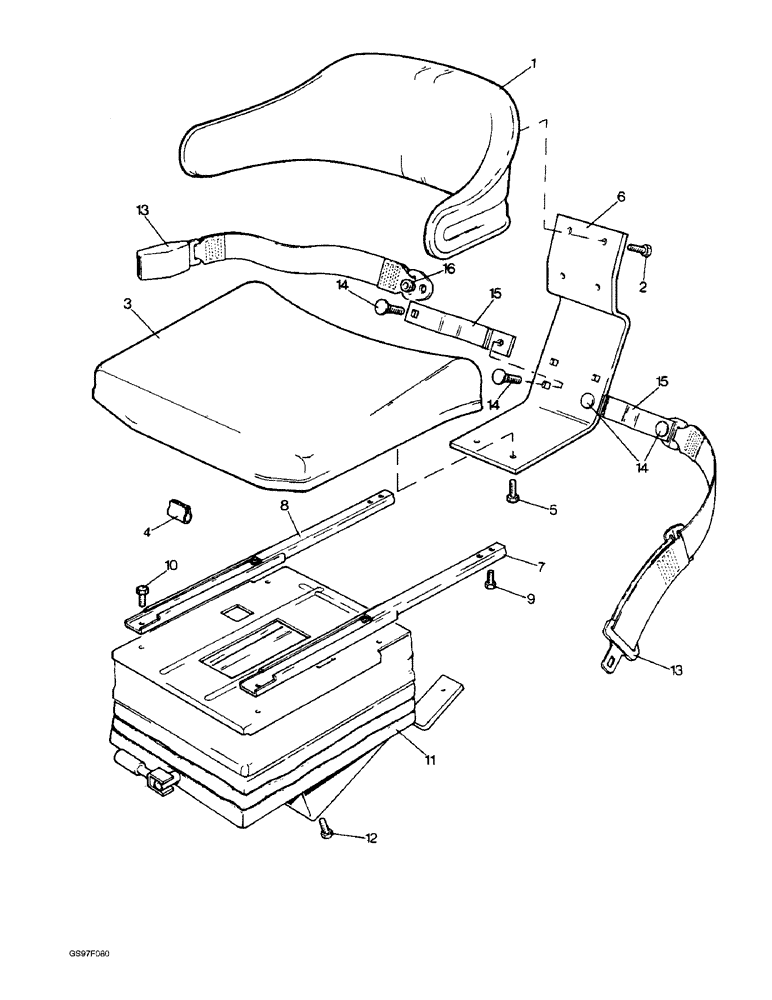

Схема запчастей Case IH 885 - (9-72) - ADJUSTABLE ARMCHAIR SEAT, 885Q, 885QH AND 885SK TRACTORS (09) - CHASSIS/ATTACHMENTS
11
5
9
3
6
10
8
16
1
2
14
15
13
12
13
15
4
7
14

Артикул

Название

Примечание

Количество

K953182

SEAT

SUSPENSION ASSEMBLY - with seat, no longer available, Includes: Ref. 1 - 11

1шт.

K953183

SEAT

CUSHION ASSEMBLY - seat, with backrest, no longer available, Includes: Ref. 1 - 6

1шт.

1

K964635

SEAT

BACKREST - cushion, no longer available

1шт.

2

934679R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 4.6

SCREW - hex, M8 x 20 mm (Replaces screw K650029)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

4шт.

3

K964634

CUSHION

- seat, no longer available

1шт.

4

827368C1

CLIP

- seat cushion (Replaces clip K964809)

11шт.

5

934679R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 4.6

SCREW - hex, M8 x 20 mm (Replaces screw K650029)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

4шт.

6

K964639

SUPPORT

BRACKET - support, no longer available

1шт.

7

3224897R1

RAIL

RUNNER - upper and lower halves, left-hand (Replaces runner K964682)

1шт.

8

K964681

SEAT

RUNNER - upper and lower halves, right-hand, no longer available

1шт.

9

3402559R1

SCREW,Slot Cheese Hd, M8 x 1.25 x 20, 8.8

- hex, M8 x 20 mm (Replaces screw K964640)

4шт.

K964644

WASHER

- flat, 5/16 x 7/16 x 5/32 inch, no longer available

4шт.

K964690

WASHER

- flat, 15/16 x 7/16 x 1/16 inch, no longer available

4шт.

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER - external tooth lock, 5/16 inch (Replaces washer K11517)

4шт.

10

934895R1

SCREW,Slotted Cheese, M8 x 16mm, Cl 8.8

- hex, M8 x 15 mm (Replaces screw K964633)

4шт.

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER - external tooth lock, 5/16 inch (Replaces washer K11517)

4шт.

11

K953184

SEAT

SUSPENSION ASSEMBLY - parts list Fig. 9-74, no longer available

1шт.

12

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SCREW - set, 5/16 NC x 3/4 inch, seat to cab

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , seat to cab (Replaces washer K19481) 5/16"

4шт.

K932694

BELT - seat , no longer available

1шт.

13

K200220

SAFETY BELT

SAFETY BELT, No longer available

1шт.

14

K962443

SCREW

BOLT - hex, M10 x 25 mm, no longer available (Replaces bolt K965178)

4шт.

15

K965179

BRACKET

- seat cushion, no longer available

2шт.

K965180

NUT

- hex, M10, no longer available

2шт.

K965181

WASHER

- flat, 10 mm, no longer available

2шт.

16

K965182

BUSHING

SPACER - seat cushion, no longer available

2шт.

K965183

SHIM

- seat cushion, no longer available

2шт.

E34639

LOCK NUT

NUT - hex, M10 (Replaces nut K965184)

2шт.

Выбрано товаров: 30
