(9-68) - INTERNAL TRIM, 885LP TRACTORS

Запчасти Case IH 885 (9-68) - INTERNAL TRIM, 885LP TRACTORS (09) - CHASSIS/ATTACHMENTS

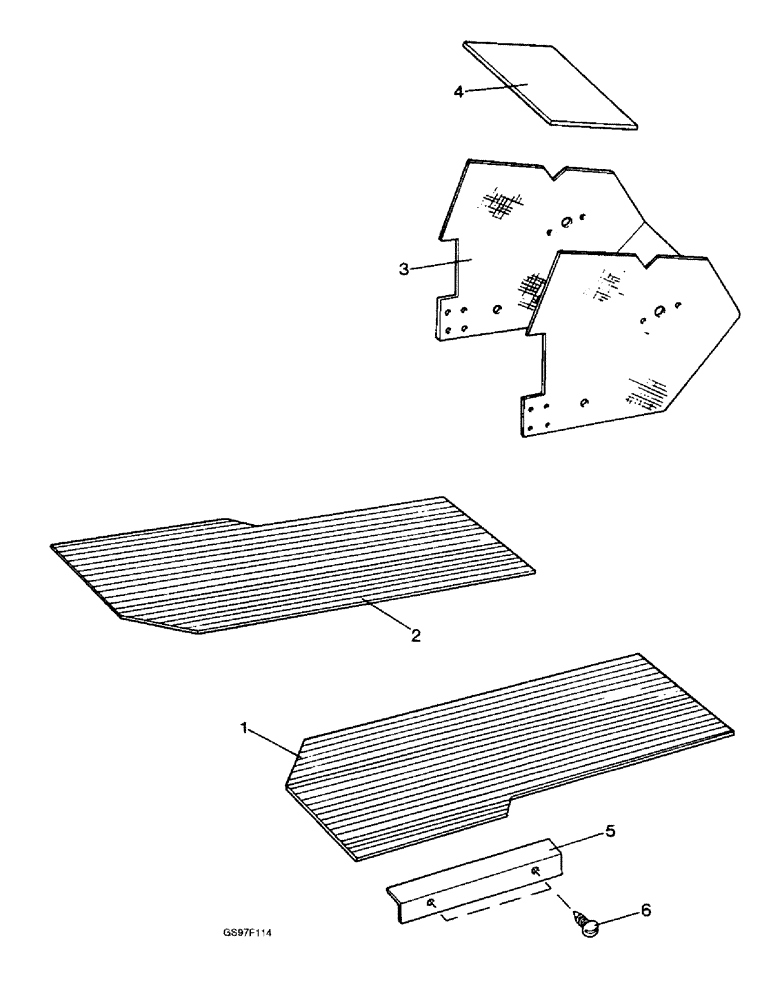

Схема запчастей Case IH 885 - (9-68) - INTERNAL TRIM, 885LP TRACTORS (09) - CHASSIS/ATTACHMENTS
3
1
4
2
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

K260085

FLOOR

MAT - rubber, left-hand, Sekura 414.105, no longer available

1шт.

2

K260086

FLOOR

MAT - rubber, right-hand, Sekura 414.104, no longer available

1шт.

3

K260087

MAT

INSULATOR - console, Sekura 414.106, no longer available

1шт.

4

K260088

MAT

INSULATOR - console top, Sekura 414.112, no longer available

1шт.

5

K260089

COVER

STRIP - cover, Sekura 20.475, no longer available

2шт.

6

K965564

SCREW

- self-tapping, M5 x 24 mm, Sekura 916.213

4шт.
