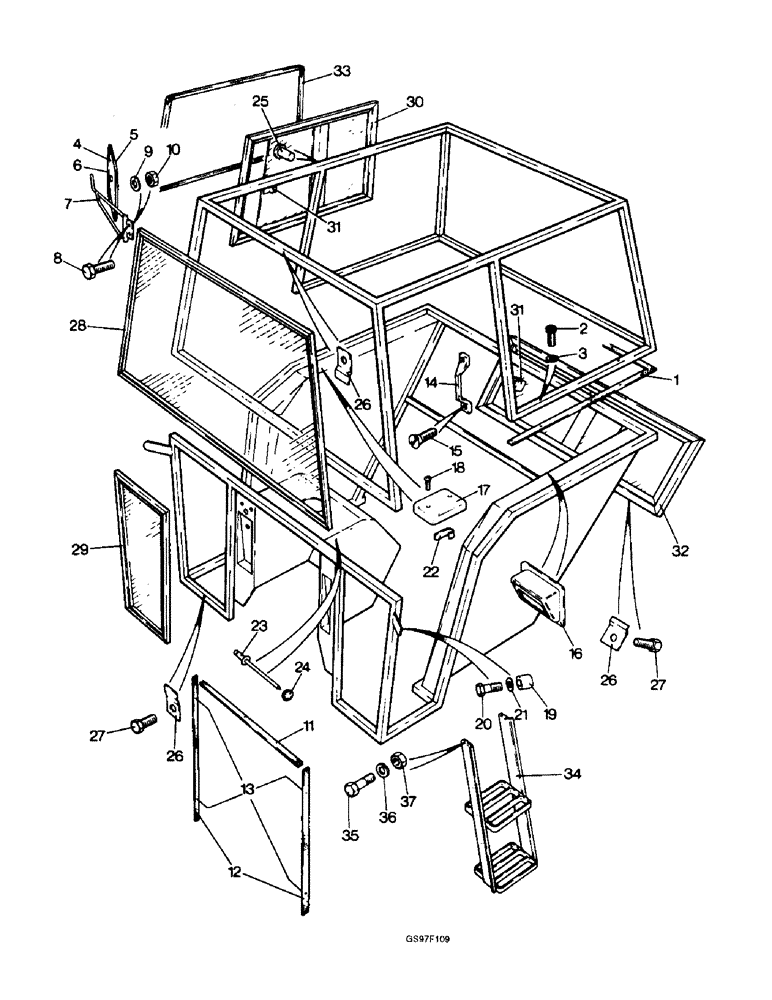

Запчасти Case IH 885 (9-66) - FRAME GLAZING AND INTERNAL TRIM, 885LP TRACTORS (09) - CHASSIS/ATTACHMENTS

1

K260019

FOAM

TAPE - 106 inch (2700 mm) long, Sekura 931.353.2700, no longer available

1шт.

2

K260020

SCREW

- hex, Sekura 906.201, no longer available

8шт.

3

K965558

WASHER

- flat, Sekura 913.110, no longer available

8шт.

4

K260022

MIRROR

ASSEMBLY - side, Sekura 944.002, no longer available, Includes: Ref. 5 and 6

1шт.

5

K260023

GLASS

- Sekura 944.005, no longer available

1шт.

6

K260024

RING

STRIP - rubber edging, Sekura 944.006, no longer available

1шт.

7

K260025

MIRROR

ARM - support, left-hand, Sekura 20.239.01, no longer available

1шт.

K260026

MIRROR

ARM - support, right-hand, Sekura 20.239.02, no longer available

1шт.

8

K965660

SCREW

- hex, Sekura 900.063, no longer available

2шт.

9

K965550

WASHER

- flat, M6, Sekura 912.071, no longer available

2шт.

10

K965547

NUT

- self-locking, M6, Sekura 910.062, no longer available

2шт.

11

K260027

PACKING

- bonnet, Sekura 414.117, no longer available

1шт.

12

K260028

CINTRE

PACKING - bonnet, Sekura 414.116, no longer available

1шт.

13

K260029

RIVET

- Sekura 915.015, no longer available

1шт.

14

K965647

HANDLE

- grab, Sekura 21.197, no longer available

2шт.

15

K965687

SCREW

- self-tapping, M5 x 15 mm, Sekura 916.214, no longer available

4шт.

16

K965487

TRAY

- ash, Sekura 20.633, no longer available

1шт.

17

K260030

COVER

- Sekura 414.068, no longer available

1шт.

18

K260031

SCREW

- self-tapping, M6 x 12 mm, Sekura 916.280, no longer available

2шт.

19

K965631

STOP

- door, Sekura 958.002

2шт.

20

K965660

SCREW

- hex, M6 x 16 mm, Sekura 900.063, no longer available

2шт.

21

K965556

WASHER

- flat, M6, Sekura 913.107, no longer available

2шт.

22

K260032

SPARE PART

TOGGLE - Sekura 946.053, no longer available

2шт.

23

K260029

RIVET

- 3 x 14 mm diameter, Sekura 915.015, no longer available

1шт.

24

K260034

RIVET

CAP - rivet, Sekura 915.101, no longer available

1шт.

25

K965632

STOP

GROMMET - Sekura 958.015, no longer available

4шт.

26

K965442

CLIP

- window, Sekura 20.066, no longer available

20шт.

27

K965564

SCREW

- hex, M5 x 12 mm, Sekura 916.030, no longer available

20шт.

28

K260044

WINDSHIELD

WINDSCREEN - Sekura 41.441, no longer available

1шт.

29

K260045

WINDOW

GLASS - with frame, left-hand, Sekura 41.552, no longer available

1шт.

K260046

WINDOW

GLASS - with frame, right-hand, Sekura 41.553, no longer available

1шт.

30

K260047

WINDOW

FRAME - with glass, sliding window, right-hand, Sekura 40.641, no longer available

1шт.

K260048

WINDOW

FRAME - with glass, sliding window, left-hand, Sekura 40.457, no longer available

1шт.

31

K965456

HANDLE

- sliding window, Sekura 20.273

3шт.

32

K260049

WINDOW

FRAME - with glass, sliding window, rear, Sekura 41.567, no longer available

1шт.

33

K965590

SEALING STRIP

- glazing, 197 inch (5000 mm) long roll, Sekura 931.017

1шт.

34

K260111

STEP

- two steps, Sekura 40.498, no longer available

1шт.

35

K965695

SCREW

- hex, M8 x 25 mm, Sekura 905.085, no longer available

4шт.

36

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

4шт.

37

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Sekura 910.080, No Longer Available

4шт.
