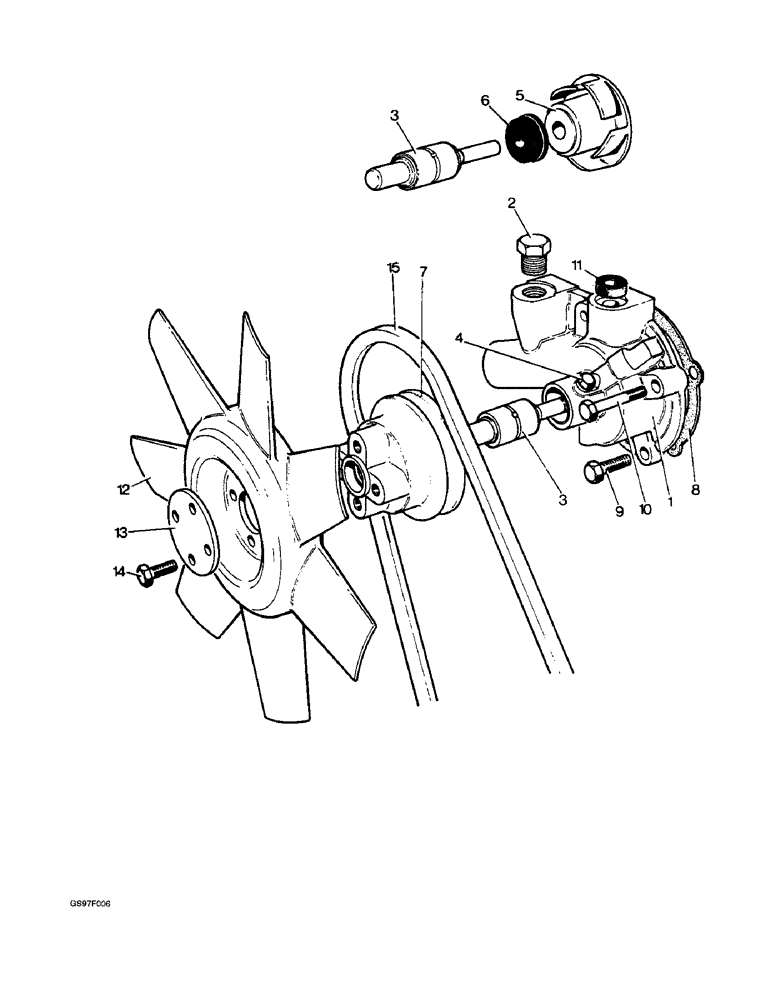

Запчасти Case IH 885 (2-06) - WATER PUMP, FAN AND BELT (02) - ENGINE

K952713

PUMP, WATER

PUMP ASSEMBLY - water, Includes: Ref. 1 - 7

1шт.

1

K952426

HOUSING

BODY - water pump, no longer available

1шт.

2

K623829

PLUG

- water pump, 3/8 inch BSP

1шт.

K19500

GASKET

WASHER - water pump, 5/8 inch

1шт.

3

K262796

BEARING

SHAFT - water pump, includes bearing (Replaces shaft K11651)

1шт.

4

K903810

SCREW,Locating, 5/16" - 18 x 21/32"

- locating, water pump, 5/16 inch NC (Replaces screw K946260)

1шт.

K11673

WASHER

- tab, water pump

1шт.

5

K949549

IMPELLER

- water pump

1шт.

6

K949550

SEAL

- gland, water pump

1шт.

7

K942475

PULLEY

- fan, water pump

1шт.

8

K907925

GASKET

- water pump, Serial Range: pump-block

1шт.

9

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, pump to block (Replaces bolt K602805)

4шт.

10

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

Pump to block (Replaces bolt K600207) Hex, 5/16"-18 x 1 3/4", G5

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , pump to block (Replaces washer K19481) 5/16"

5шт.

11

K915330

SEALING RING

SEAL - rubber, pump to cylinder head

1шт.

12

K921852

FAN

- pulley, 14 inch diameter, seven blade

1шт.

13

K921361

SHIM

PLATE - retaining

1шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt K602984)

4шт.

K626723

BELLEVILLE WASHER

WASHER - spring, 3/8 inch

4шт.

15

K912196

V-BELT

Driving, Fan and alternator

1шт.

K961770

KIT

- repair, seal, bearing, gasket

1шт.
