Запчасти Case IH 885 (9-64) - CAB INTERNAL TRIM AND GLAZING, IMPROVED Q CAB, VQ (09) - CHASSIS/ATTACHMENTS

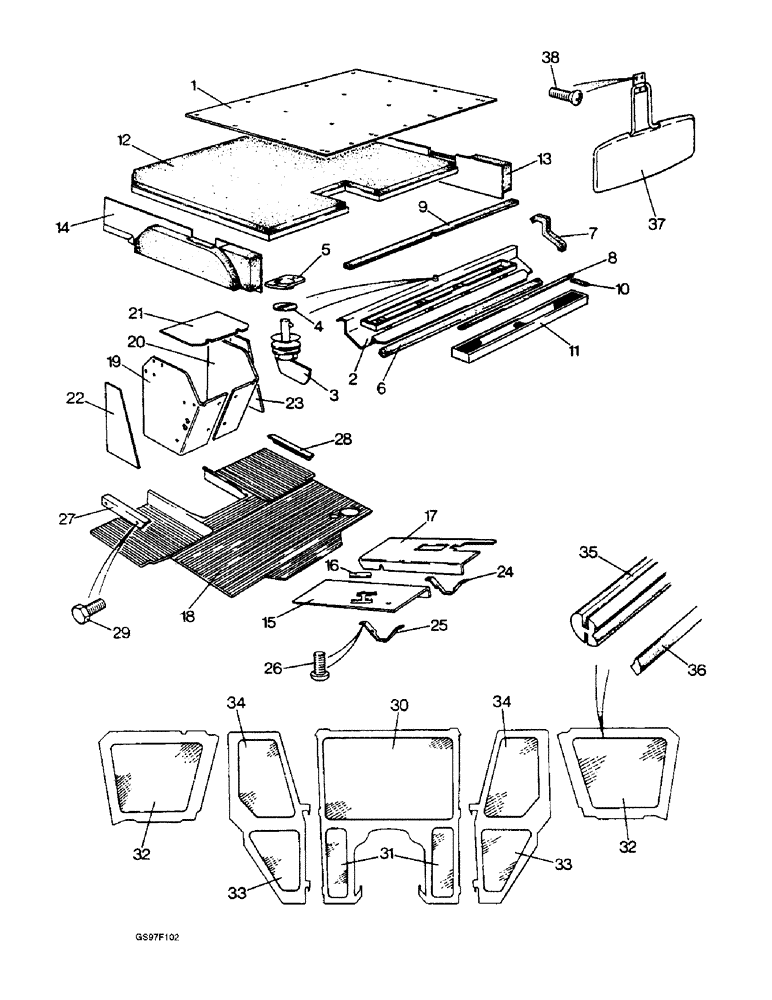

Схема запчастей Case IH 885 - (9-64) - CAB INTERNAL TRIM AND GLAZING, IMPROVED Q CAB, VQ (09) - CHASSIS/ATTACHMENTS
12
10
17
18
5
3
8
26
9
36
29
35
37
2
4
6
33
23
30
34
1
22
11
14
15
34
32
32
7
21
16
19
13
31
27
24
33
20
25
38
28

Артикул

Название

Примечание

Количество

1

K955185

DUCT

COVER - duct, cab roof, no longer available

1шт.

2

K955887

DOOR

ASSEMBLY - filter, no longer available, Includes: Ref. 3 and 4

1шт.

3

K626150

STUD

FASTENER - access door, no longer available

1шт.

4

K626152

WASHER

- retaining, door fastener, no longer available

1шт.

5

K626151

PLATE

RECEPTABLE - door fastener, no longer available

1шт.

6

K628236

SEAL

STRIP - sealing, 1/2 x 1 x 37-3/8 inch (949 mm) long, filter door, no longer available

1шт.

7

K628238

SEAL

STRIP - sealing, 1/2 x 1/2 x 6-1/2 inch (165 mm) long, filter door, no longer available

2шт.

8

K628235

SEAL

STRIP - sealing, 1/2 x 1 x 32 inch (813 mm) long, filter to roof, no longer available

1шт.

9

K628237

SEAL

STRIP - sealing, 1/2 x 1 x 37-1/2 inch (953 mm) long, filter to roof, no longer available

1шт.

10

K628239

SEAL

STRIP - sealing, 1/2 x 1 x 4-1/4 inch (108 mm) long, filter to roof, no longer available

2шт.

11

K952133

FILTER

- air, cab ventilation, no longer available

1шт.

12

K955545

FOAM

TRIM - insulating, cab roof, no longer available

1шт.

13

K955521

INSULATOR

TRIM - insulating, upper, right-hand side, no longer available

1шт.

14

K955522

INSULATOR

TRIM - insulating, upper, left-hand side, no longer available

1шт.

15

K955461

INSULATOR

- left-hand rear, no longer available

1шт.

16

K951389

FLOOR

STRIP - insulating, left-hand, no longer available

1шт.

17

K955460

INSULATOR

- right-hand rear, no longer available

1шт.

18

K950268

INSULATOR

MAT - insulating, cab floor, no longer available

1шт.

19

K951050

PANEL, SIDE

INSULATOR - console, left-hand, no longer available

1шт.

20

K951049

INSULATOR

- console, right-hand, no longer available

1шт.

21

K955459

INSULATOR

- console, top, no longer available

1шт.

22

K955611

LACING, BELT

TRIM - sound proof, left-hand side panel, no longer available

1шт.

23

K955610

LACING, BELT

TRIM - sound proof, right-hand side panel, no longer available

1шт.

24

K955177

CABLE

COVER - left-hand side, lamp leads, no longer available

1шт.

25

K955176

CABLE

COVER - right-hand side, lamp leads, no longer available

1шт.

26

K603924

SCREW

- hex, 1/4 NC x 1/2 inch, no longer available

2шт.

K626662

WASHER

- flat, 1/4 inch (Replaces washer K19470)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

2шт.

27

K950608

PLATE

- tread, left-hand, no longer available

1шт.

28

K950607

PLATE

- tread, right-hand, no longer available

1шт.

29

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SCREW - set, 5/16 NC x 3/4 inch, plates to cab floor

4шт.

K626682

WASHER

- flat, 5/16 inch, plates to cab floor

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

4шт.

30

K951052

WINDSHIELD

GLASS - windscreen, no longer available

1шт.

31

K951053

GLASS

- bulkhead panel, no longer available

2шт.

32

K955178

GLASS

- side panel, left-hand, no longer available

1шт.

33

K950362

GLASS

- door window, lower

2шт.

34

K955193

DOOR

GLASS - door window, no longer available

2шт.

35

K692078

RUBBER STRIP

STRIP - window glazing, no longer available

1шт.

36

K692079

RUBBER

STRIP - filler, no longer available

1шт.

37

K200034

X

VISOR - sun, no longer available

1шт.

38

K614498

SCREW

- hex, No. 10 NF x 1/2 inch

3шт.

Выбрано товаров: 42
