Запчасти Case IH 885 (9-54) - CAB DOORS, 885LP TRACTORS (09) - CHASSIS/ATTACHMENTS

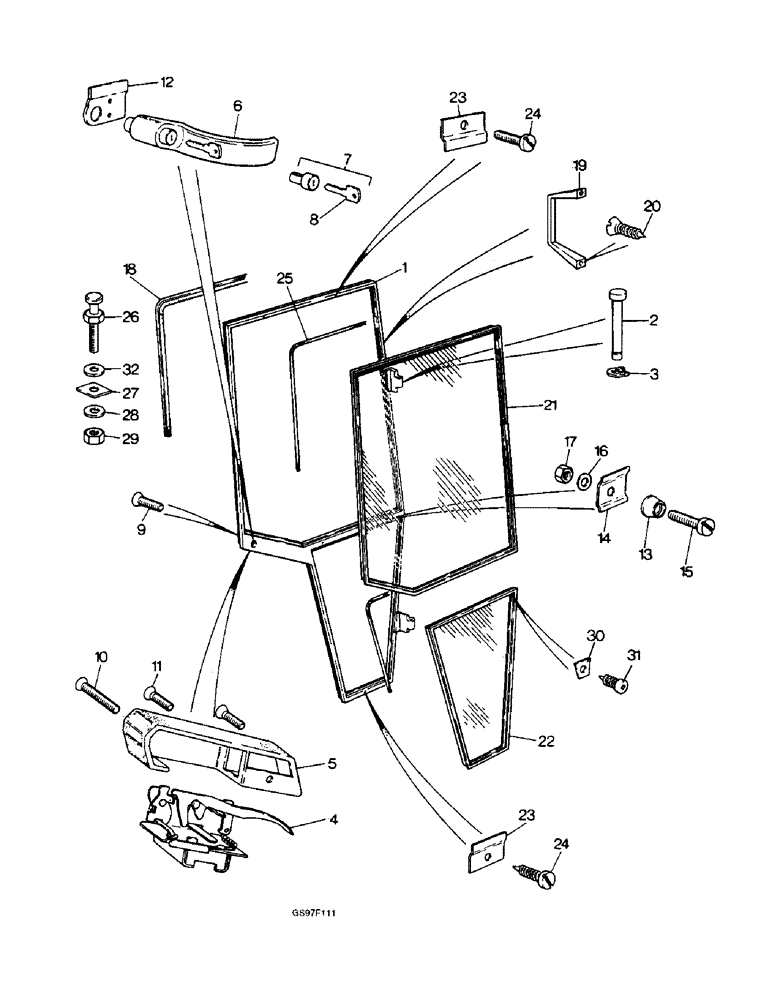

Схема запчастей Case IH 885 - (9-54) - CAB DOORS, 885LP TRACTORS (09) - CHASSIS/ATTACHMENTS
2
19
12
24
27
29
6
5
24
4
23
21
1
25
26
18
13
15
8
16
10
23
20
3
31
17
30
32
9
14
28
22
7
11

Артикул

Название

Примечание

Количество

1

K260050

DOOR

ASSEMBLY - right-hand, Sekura 41.576, no longer available, Includes: Ref. 2 - 25

1шт.

K260051

DOOR

ASSEMBLY - left-hand, Sekura 41.575, no longer available, Includes: Ref. 2 - 25

1шт.

2

K965642

PIN

- hinge, Sekura 21.111, no longer available

4шт.

3

K965688

SNAP RING

RING - snap, Sekura 917.009, no longer available

4шт.

4

K965648

LOCK

LATCH ASSEMBLY - door, left-hand, Sekura 970.401, no longer available

1шт.

K965649

LOCK

LATCH ASSEMBLY - door, right-hand, Sekura 970.402, no longer available

1шт.

5

K965444

ARMREST

REST - arm, left-hand, Sekura 20.076.01, no longer available

1шт.

K965445

ARMREST

REST - arm, left-hand, Sekura 20.076.02, no longer available

1шт.

6

K260004

HANDLE

ASSEMBLY - with key, Sekura 970.550, Includes: Ref. 7 and 8

2шт.

7

K260021

CYLINDER

LOCK - cylinder, with key, Sekura 970.404, no longer available

2шт.

8

K260112

DOOR

KEY - Sekura 970.403, no longer available

2шт.

9

K965683

SCREW

- socket, M6 x 16 mm, Sekura 906.363, no longer available

6шт.

10

K965534

SCREW

- socket, M6 x 80 mm, Sekura 906.368, no longer available

2шт.

11

K965684

SCREW

- socket, M6 x 20 mm, Sekura 906.364, no longer available

2шт.

K965530

SCREW

- socket, M6 x 12 mm, Sekura 906.361, no longer available

2шт.

12

K965447

CLIP

- window, left-hand, Sekura 20.134.01, no longer available

1шт.

K965448

CLIP

- window, right-hand, Sekura 20.134.02, no longer available

1шт.

13

K965623

PUSH BUTTON

STOP - door, rubber, Sekura 958.001, no longer available

2шт.

14

K965453

CLIP

- window, Sekura 20.220, no longer available

2шт.

15

K260052

SCREW

- hex, M6 x 30 mm, Sekura 960.066, no longer available

2шт.

16

K965550

WASHER

- flat, 1-1/4 inch, Sekura 912.071, no longer available

2шт.

17

K965544

NUT

- hex, M6, Sekura 910.060, no longer available

2шт.

18

K260053

STRIP

- edging, 4000 mm, Sekura 931.014.4000, no longer available

2шт.

19

K965647

HANDLE

- grab, Sekura 21.197, no longer available

2шт.

20

K260054

SCREW

- self-tapping, Sekura 916.031, no longer available

4шт.

21

K260055

DOOR

GLASS - with frame, left-hand, upper, Sekura 40.460, no longer available

1шт.

K260056

DOOR

GLASS - with frame, right-hand, upper, Sekura 40.578, no longer available

1шт.

22

K965485

WINDOW

GLASS - with frame, left-hand, lower, Sekura 40.891, no longer available

1шт.

K965486

WINDOW

GLASS - with frame, right-hand, upper, Sekura 40.890, no longer available

1шт.

23

K965454

CLIP

- window, Sekura 20.237, no longer available

6шт.

24

K965686

SCREW

- self-tapping, M4 x 10 mm, Sekura 916.202, no longer available

6шт.

25

K965590

SEALING STRIP

- sealing, 5000 mm roll, Sekura 931.017

1шт.

26

K965541

PIN

CATCH - door, Sekura 907.003, no longer available

2шт.

27

K965458

PLATE

- Sekura 20.278, no longer available

2шт.

28

K965554

WASHER

- flat, Sekura 912.133, no longer available

2шт.

29

K965546

NUT

- hex, Sekura 910.121, no longer available

2шт.

30

K260057

CLIP

- window, corner, Sekura 21.455, no longer available

2шт.

31

K260058

SCREW

- self-tapping, Sekura 916.206, no longer available

2шт.

32

K260059

WASHER

- flat, Sekura 21.790, no longer available

2шт.

Выбрано товаров: 39
