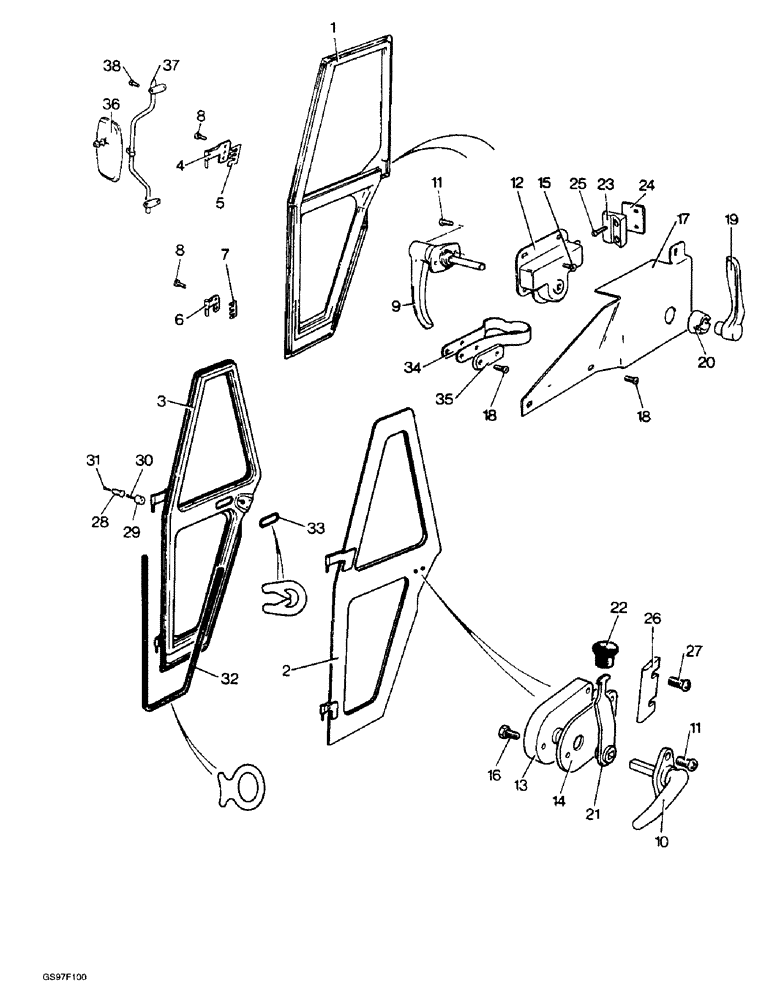

Запчасти Case IH 885 (9-52) - CAB DOORS AND FITTINGS, 885Q AND 885QH TRACTORS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
K955488
CAB
DOOR - cab, right-hand, tractor serial number 11010300 and after, no longer available
1шт.
2
K950358
DOOR
- cab, left-hand, tractor serial numbers prior to 11010300, no longer available
1шт.
3
K955195
DOOR
- cab, left-hand, tractor serial number 11010300 and after, no longer available
1шт.
3
K950357
CAB
DOOR - cab, right-hand, tractor serial numbers prior to 11010300, no longer available
1шт.
K626779
WASHER
- thrust, door hinge, no longer available
2шт.
4
K955423
HINGE
- upper, left-hand door, tractor serial number 11010300 and after, no longer available
1шт.
4
K955492
HINGE
- upper, right-hand door, tractor serial number 11010300 and after, no longer available
1шт.
5
K955484
DOOR
PLATE - packing, upper hinge, tractor serial number 11010300 and after, no longer available
1шт.
6
K955421
HINGE
- lower, left-hand door, tractor serial number 11010300 and after, no longer available
1шт.
6
K955494
HINGE
- lower, right-hand door, tractor serial number 11010300 and after, no longer available
1шт.
7
K955498
DOOR
PLATE - packing, lower hinge, tractor serial number 11010300 and after, no longer available
1шт.
8
K602845
BOLT,Hex Hd, 5/16"-18 x 3/4"
SCREW - hex, 5/16 NC x 3/4 inch, hinge to doors, tractor serial number 11010300 and after
12шт.
K626682
WASHER
- flat, 5/16 inch, hinge to doors, tractor serial number 11010300 and after
12шт.
LOCK WASHER,5/16"
WASHER, LOCK, , hinge to doors, one used with tractor serial numbers prior to 11010300, twelve used with tractor serial number 11010300 and after (Replaces washer K19481) 5/16"
1шт.
9
K955435
HANDLE
- outer, locking, tractor serial number 11010300 and after
2шт.
10
K949336
HANDLE
- outer, tractor serial numbers prior to 11010300, no longer available
2шт.
11
K614498
SCREW
- hex, No. 10 NF x 1/2 inch, no longer available
4шт.
12
K955426
LOCK ASSY
LATCH - left-hand door, tractor serial number 11010300 and after, no longer available
1шт.
12
K955496
LOCK
LATCH - right-hand door, tractor serial number 11010300 and after, no longer available
1шт.
13
K951133
LOCK
LATCH - left-hand door, tractor serial numbers prior to 11010300, no longer available
1шт.
13
K773203
DOOR
LATCH - right-hand door, tractor serial numbers prior to 11010300, no longer available
1шт.
14
K950206
RETAINER
PLATE - retainer, door latch, tractor serial numbers prior to 11010300, no longer available
2шт.
15
490-1108
SCREW,Cross Pan Hd, #10-32 x 1/2"
- machine, pan Phillips, No. 10 NF x 1/2 inch, latches to doors, tractor serial number 11010300 and after (Replaces screw K614944)
8шт.
16
K614950
SCREW
- set, No. 10 NF x 1/2 inch, latches to doors, tractor serial numbers prior to 11010300, no longer available
6шт.
492-11010
LOCK WASHER,#10
WASHER, LOCK, , Latches to doors, 6 used with tractor S/N's prior to 11010300, 8 used with tractor S/N 11010300 and after (Replaces washer K626340) #10
1шт.
17
K955419
LATCH
COVER - left-hand door latch, tractor serial number 11010300 and after, no longer available
1шт.
17
K955497
DOOR
COVER - right-hand door latch, tractor serial number 11010300 and after, no longer available
1шт.
18
K603925
SCREW,Pan, 1/4" - 20 x 5/8"
- hex, 1/4 NC x 5/8 inch, tractor serial number 11010300 and after, no longer available
10шт.
K626662
WASHER
- flat, 1/4 inch, tractor serial number 11010300 and after
6шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, , Tractor S/N number 11010300 and after 1/4"
10шт.
19
K955448
HANDLE
LEVER - inner, tractor serial number 11010300 and after, no longer available
2шт.
K955447
SHIM
Inner lever, Tractor S/N 11010300 and after, No longer available
1шт.
20
K955446
SPACER
ESCUTCHEON - inner handle, tractor serial number 11010300 and after, no longer available
2шт.
21
K950360
LEVER
- inner, tractor serial numbers prior to 11010300, no longer available
2шт.
22
K901738
KNOB
- inner lever, tractor serial numbers, Serial Range: prior-11010300
2шт.
23
K955167
DOOR
PLATE - striker, door latch, tractor serial number 11010300 and after, no longer available
2шт.
24
K955169
DOOR
PLATE - packing, door striker plates, tractor serial number 11010300 and after, no longer available
1шт.
25
490-11010
SCREW,Cross Pan Hd, #10-32 x 5/8"
- machine, pan Phillips, N0. 10 NF x 5/8 inch, tractor serial numbers prior to 11010300 (Replaces screw K614945)
4шт.
492-11010
LOCK WASHER,#10
WASHER, LOCK, , Tractor S/N 11010300 and after (Replaces washer K626340) #10
4шт.
26
K948970
STOP
PLATE - stop, door latch, tractor serial numbers prior to 11010300, no longer available
2шт.
27
470-12520
SCREW,Slotted Pan Hd, 1/4"-20 x 1 1/4"
- machine, pan head slotted, 1/4 NC x 1-1/4 inch, plates to fenders, tractor serial numbers prior to 11010300
4шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, , Plates to fenders, tractor S/N's prior to 11010300 (Replaces washer K626341) 1/4"
4шт.
234-10025
NUT,Crown, 1/4"-20
- dome, 1/4 inch NC, tractor serial numbers prior to 11010300
4шт.
28
K953495
DOOR
RETAINER - door, male, no longer available
2шт.
29
K953496
DOOR
RETAINER - door, female, no longer available
2шт.
30
K606521
SCREW
- socket, 1/4 NC x 7/8 inch, no longer available
2шт.
31
K603926
SCREW
- hex, 1/4 NC x 3/4 inch
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, (Replaces washer K626341) 1/4"
2шт.
K697043
NUT - hex, 1/4 inch NC, no longer available
2шт.
32
K776153
SEAL
EXCLUDER - draught (Replaces excluder K949338)
1шт.
33
K951136
SEALING STRIP
STRIP - edging, no longer available
1шт.
34
K955485
STRAP
- door pull, tractor serial number 11010300 and after, no longer available
2шт.
K955499
STRAP
COVER - door pull strap, tractor serial number 11010300 and after, no longer available
2шт.
35
K955486
DOOR
RETAINER - door strap, tractor serial number 11010300 and after, no longer available
4шт.
36
K950922
MIRROR
ASSEMBLY - driving, no longer available, Includes: Glass
1шт.
K965040
MIRROR
GLASS - driving mirror, no longer available
1шт.
37
K950921
ARM
BRACKET - support, driving mirror, no longer available
1шт.
38
K603926
SCREW
- hex, 1/4 NC x 3/4 inch
4шт.
493-41026
LOCK WASHER,Ext Tooth, 1/4"
WASHER - external tooth lock, 1/4 inch (Replaces washer K626552)
4шт.
