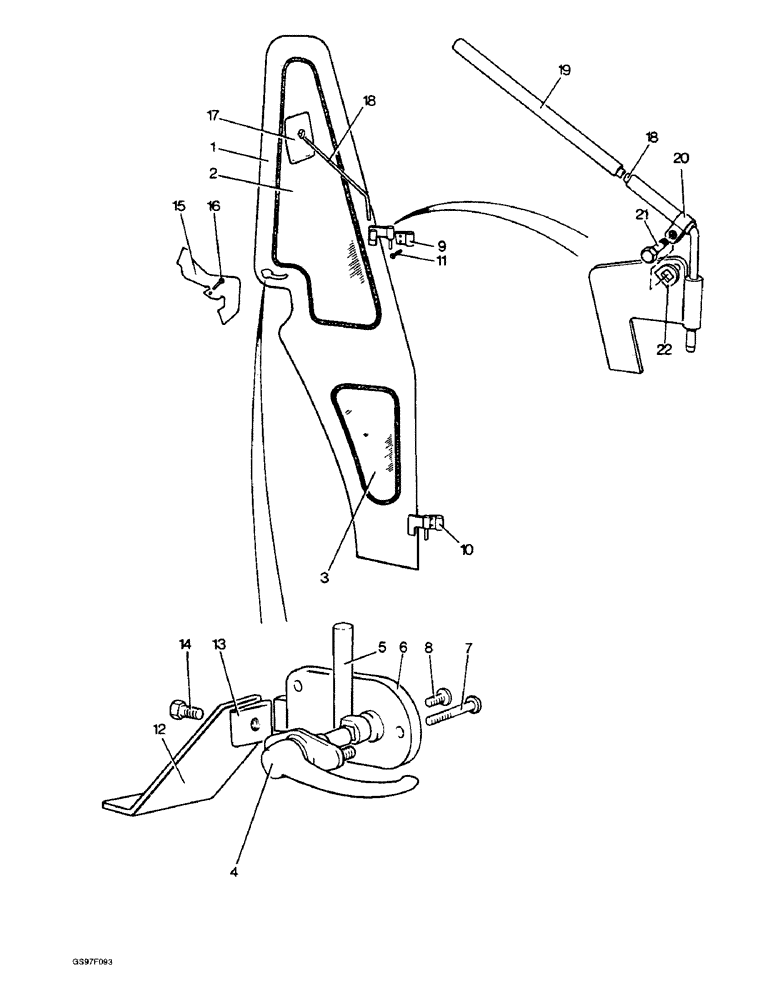

Запчасти Case IH 885 (9-50) - CAB DOORS, 885 AND 885H TRACTORS WITH CLAD DB WEATHERFRAME (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
K773105
DOOR
- complete, right-hand, no longer available
1шт.
K773106
DOOR
- complete, left-hand, no longer available
1шт.
1
K772981
DOOR
- welded assembly, right-hand, no longer available
1шт.
K772989
DOOR - welded assembly, left-hand, no longer available
1шт.
2
K772676
WINDOW
GLASS - door top, no longer available
1шт.
3
K772675
WINDOW
GLASS - door bottom, no longer available
1шт.
4
K773205
DOOR
HANDLE - outer, right-hand door, no longer available
1шт.
K773206
DOOR
HANDLE - outer, left-hand door, no longer available
1шт.
5
K773240
DOOR
HANDLE - inner, no longer available
2шт.
K773243
DOOR
KNOB - inner handle, no longer available
2шт.
K773244
RUBBER
BOSS - rubber, right-hand, no longer available
1шт.
K774050
BUSHING
BOSS - rubber, left-hand, no longer available
1шт.
6
K773203
DOOR
LATCH - right-hand door, no longer available
1шт.
K773204
LATCH
- left-hand door, no longer available
1шт.
7
K691954
SCREW
- hex, No. 10 NF x 1-1/4 inch, no longer available
6шт.
8
K692042
SCREW
- hex, No. 10 NF x 1/2 inch, no longer available
2шт.
K626310
WASHER
- flat, 3/16 inch, no longer used
2шт.
492-11010
LOCK WASHER,#10
WASHER, LOCK, , (Replaces washer K626340) #10
8шт.
9
K773175
HINGE
- upper, right-hand door, no longer available
1шт.
10
K773171
HINGE
- lower, right-hand door, no longer available
1шт.
K773174
HINGE
- upper, left-hand door, no longer available
1шт.
K773170
HINGE
- lower, left-hand door, no longer available
1шт.
K774476
HINGE
PIN - upper hinges, no longer available
1шт.
11
413-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
Hinges to bulkhead (Replaces bolt K602985) Hex, 3/8"-16 x 1 1/8", G5, Full Thd
8шт.
K19472
WASHER
- flat, 3/8 inch, Serial Range: hinges-bulkhead
16шт.
492-11038
LOCK WASHER,3/8"
hinges to bulkhead (Replaces washer K19482) 3/8"
8шт.
425-106
NUT,3/8"-16, Cl 5
Hinges to bulkhead (Replaces nut K607045) 3/8"-16, G5
8шт.
12
K772996
PLATE
BRACKET - right-hand striker plate, no longer available
1шт.
K772995
PLATE
BRACKET - left-hand striker plate, no longer available
1шт.
13
K773071
PLATE
- striker , no longer available
2шт.
14
K602845
BOLT,Hex Hd, 5/16"-18 x 3/4"
SCREW - hex, 5/16 NC x 3/4 inch, plates to brackets
2шт.
K626682
WASHER
- flat, 5/16 inch, Serial Range: plates-brackets
2шт.
15
K773223
FENDER
EXTENSION - right-hand fender, no longer available
1шт.
K773224
FENDER
EXTENSION - left-hand fender, no longer available
1шт.
16
K603925
SCREW,Pan, 1/4" - 20 x 5/8"
- hex, 1/4 NC x 5/8 inch, extensions to fenders, no longer available
2шт.
K626662
WASHER
- flat, 1/4 inch, extensions to fenders (Replaces washer k19470)
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, , Extensions to fenders (Replaces washer K626341) 1/4"
2шт.
425-104
NUT,1/4"-20, Cl 5
- hex, 1/4 inch NC, extensions to fenders (Replaces nut K607043)
2шт.
490-11010
SCREW,Cross Pan Hd, #10-32 x 5/8"
- machine, pan Phillips, No. 10 NF x 5/8 inch, extensions to fenders (Replaces screw K614945)
2шт.
K626310
WASHER
- flat, 3/16 inch, extensions to fenders, no longer available
2шт.
492-11010
LOCK WASHER,#10
WASHER, LOCK, , Extensions to fenders (Replaces washer K626340) #10
2шт.
17
K773622
CAB
MIRROR - driving , no longer available
1шт.
18
K774188
CAB
ARM - driving mirror, inner, no longer available
1шт.
19
K774658
ARM
- driving mirror, outer, no longer available
1шт.
20
K774186
CLIP
- driving mirror arm, no longer available
1шт.
21
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
- hex, 5/16 NC x 1 inch (Replaces bolt K602847)
1шт.
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC (Replaces nut K607044)
1шт.
22
K775292
PLATE
- clamping, no longer available
1шт.
Выбрано товаров: 52
