Запчасти Case IH 885 (9-46) - BULKHEADS, 885 AND 885H TRACTORS WITH CLAD DB WEATHERFRAME (09) - CHASSIS/ATTACHMENTS

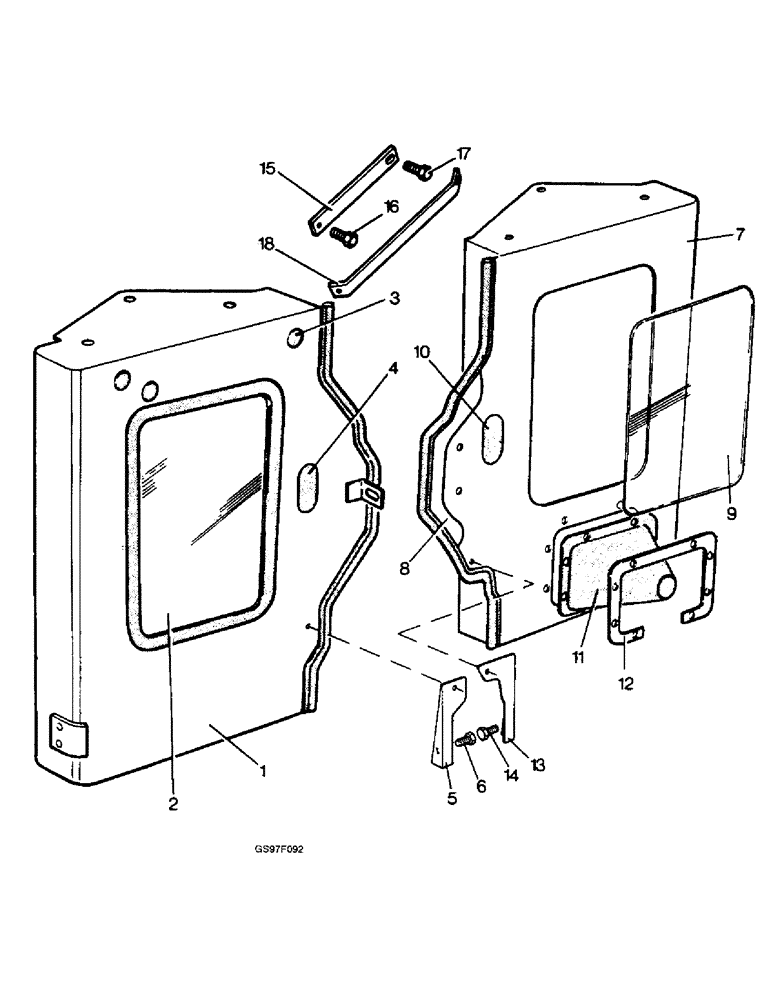

Схема запчастей Case IH 885 - (9-46) - BULKHEADS, 885 AND 885H TRACTORS WITH CLAD DB WEATHERFRAME (09) - CHASSIS/ATTACHMENTS
8
5
2
7
17
11
13
14
15
18
1
6
10
4
16
9
12
3

Артикул

Название

Примечание

Количество

K773431

PANEL

ASSEMBLY - bulkhead, right-hand, no longer available, Includes: Ref. 1 - 6, Washer, and Nut

1шт.

1

K772759

PANEL

- bulkhead, no longer available

1шт.

2

K772945

GLASS

PANEL - glass, no longer available

1шт.

3

K691967

GROMMET

- bulkhead, no longer available

3шт.

4

K691968

GROMMET

- bulkhead, no longer available

1шт.

5

K776128

PANEL

SPACER - panel, right-hand bulkhead, no longer available

1шт.

6

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch (Replaces screw K614944)

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

225-14210

NUT,#10-32

(Replaces nut K617080) #10-32

2шт.

K774199

PANEL

ASSEMBLY - bulkhead, complete, left-hand, manual steering, no longer available, Includes: Ref. 7 - 14, Washer, and Nut

1шт.

K774207

PANEL

ASSEMBLY - bulkhead, complete, left-hand, hydrostatic steering, no longer available, Includes: Ref. 7 - 17, Washer, and Nut

1шт.

7

K774200

PANEL

- bulkhead, welded assembly, no longer available

1шт.

8

K774161

COVER

PLATE ASSEMBLY - cover, manual steering, no longer available

1шт.

8

K774175

COVER

PLATE ASSEMBLY - cover, hydrostatic steering, no longer available

1шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch (Replaces screw K614944)

1шт.

9

K772945

GLASS

PANEL - glass, no longer available

1шт.

10

K691968

GROMMET

- bulkhead, no longer available

1шт.

11

K774935

BOOT

GAITER ASSEMBLY - manual steering, no longer available, Includes: Gaiter's, Button, Socket, Eyelet, and Stud

1шт.

11

K774934

BOOT

GAITER ASSEMBLY - hydrostatic steering, no longer available, Includes: Gaiter's, Button, Socket, Eyelet, and Stud

1шт.

K773386

BOOT

GAITER - bulkhead, manual steering, no longer available

1шт.

K774933

GAITER - bulkhead, hydrostatic steering, no longer available

1шт.

K691973

BUTTON

- durable dot, no longer available

1шт.

K691982

SOCKET/RECEPTACLE

SOCKET - gaiter, no longer available

1шт.

K691983

SHANK

EYELET - gaiter, no longer available

1шт.

K691984

STUD

- gaiter, no longer available

1шт.

12

K774206

CLAMP

- gaiter to bulkhead, no longer available

1шт.

K692059

RIVET

- gaiter to bulkhead, no longer available

8шт.

13

K776127

PANEL

SPACER - panel, left-hand bulkhead, no longer available

1шт.

14

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch (Replaces screw K614944)

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer K626340) #10

2шт.

225-14210

NUT,#10-32

(Replaces nut K617080) #10-32

1шт.

15

K773493

STAY

- bulkhead to main frame, no longer available

1шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, stay to bulkhead (Replaces bolt K602984)

1шт.

492-11038

LOCK WASHER,3/8"

stay to bulkhead (Replaces washer K19482) 3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

Stay to bulkhead (Replaces nut K607045) 3/8"-16, G5

1шт.

17

413-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5

- hex, 5/8 NC x 1 inch, stay to main frame (Replaces bolt K692006)

1шт.

K626855

WASHER

- flat, 5/8 inch, stay to main frame

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Stay to main frame (Replaces washer K19485) 5/8"

1шт.

18

K773700

SUPPORT

- bulkhead, right-hand, soft clad cab, no longer available

1шт.

K773701

SUPPORT

- bulkhead, left-hand, soft clad cab, no longer available

1шт.

413-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5

- hex, 5/8 NC x 1 inch, support to main frame (Replaces bolt K692006)

2шт.

K626855

WASHER

- flat, 5/8 inch, support to main frame

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Support to main frame (Replaces washer K19485) 5/8"

2шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, support to bulkhead (Replaces bolt K602936)

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, bulkheads to frame platform (Replaces bolt K602984)

4шт.

K19472

WASHER

- flat, 3/8 inch, bulkheads to frame platform

4шт.

492-11038

LOCK WASHER,3/8"

bulkheads to frame platform (Replaces washer K19482) 3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

Bulkheads to frame platform (Replaces nut K607045) 3/8"-16, G5

4шт.

Выбрано товаров: 48
