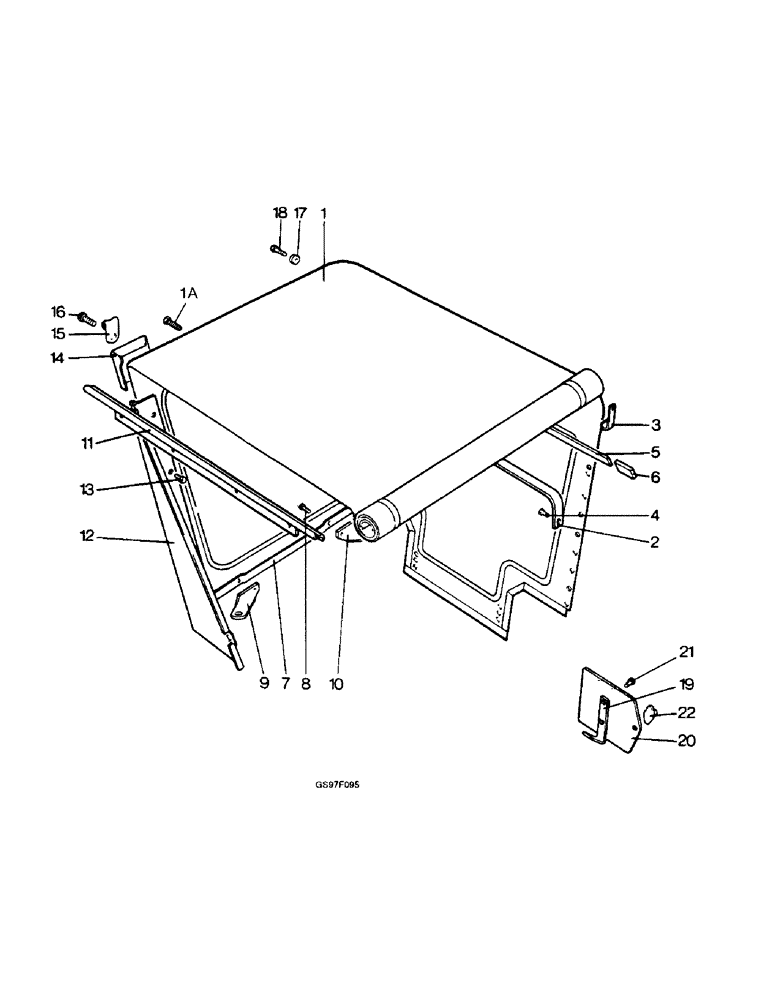

Запчасти Case IH 885 (9-40) - SIDE PANELS, ROOF AND REAR CURTAIN, 885 TRACTORS WITH SOFT CLAD DB WEATHERFRAME (09) - CHASSIS/ATTACHMENTS

1

K773368

SPARE PART

CLADDING - soft, roof, sides and rear, no longer available

1шт.

1a

K603926

SCREW

- hex, 1/4 NC x 3/4 inch, soft, Serial Range: cladding-frame

2шт.

K773634

WASHER

- thick, 3/32 inch, soft cladding to frame, no longer available

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Soft cladding to frame (Replaces washer K626341) 1/4"

2шт.

2

K773388

STAY

- top, no longer available

4шт.

3

K773276

HOOK

- coat, no longer available

2шт.

4

K603926

SCREW

- hex, 1/4 NC x 3/4 inch, Serial Range: stays-frame

8шт.

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER - external tooth lock, stays to frame (Replaces washer K626552)

8шт.

5

K773540

STIFFENER - rear, no longer available

2шт.

6

K692027

TUBE - protection, no longer available

12шт.

7

K773749

LACING, BELT

STAY - side, no longer available

2шт.

8

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, side stays to brackets (Replaces bolt K602735)

4шт.

K626662

WASHER

- flat, 1/4 inch, side stays to brackets (Replaces washer K19470)

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Side stays to brackets (Replaces washer K626341) 1/4"

4шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, side stays to brackets (Replaces nut K607043)

4шт.

9

K773752

BRACKET

- front, right-hand side stay, no longer available

1шт.

10

K773750

BRACKET

- rear, right-hand side stay, no longer available

1шт.

K773753

BRACKET

- front, left-hand side stay, no longer available

1шт.

K773751

BRACKET

- rear, left-hand side stay, no longer available

1шт.

11

K773480

HOLDER

- cladding, no longer available

1шт.

K773009

BUSHING

SPACER - rubber, holder and windscreen to weatherframe, no longer available

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Holder and windscreen to weatherframe (Replaces bolt K603143) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

K691875

WASHER

- special, 1/2 inch, holder and windscreen to weatherframe, no longer available

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Holder and windscreen to weatherframe (Replaces washer K626345) 1/2"

4шт.

K691874

WASHER

- rubber, 1/2 inch, holder and windscreen to weatherframe, no longer available

4шт.

12

K774040

SPARE PART

CORNER - front, right-hand, no longer available

1шт.

K774039

SPARE PART

CORNER - front, left-hand, no longer available

1шт.

13

K691892

SCREW

- hex, 1/4 NC x 1 inch, corners to frame, no longer available

8шт.

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER - external tooth lock, corners to frame (Replaces washer K626552)

8шт.

K626662

WASHER

- flat, 1/4 inch, corners to frame (Replaces washer K19470)

8шт.

K773632

WASHER

- nylon, 1/4 x 5/16 inch, corners to frame, no longer available

2шт.

K773633

WASHER

- nylon, 1/4 x 7/32 inch, corners to frame, no longer available

2шт.

K774662

WASHER

- nylon, 1/4 x 3/32 inch, corners to frame, no longer available

2шт.

14

K773541

BRACKET

CORNER - right-hand, no longer available

1шт.

K773542

BRACKET

CORNER - left-hand, no longer available

1шт.

15

K772319

BRACKET

HOOK - lifting

4шт.

16

K603140

SCREW

- hex, 1/2 NC x 1-1/8 inch, Serial Range: hooks-frame

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Hooks to frame (Replaces washer K626345) 1/2"

4шт.

K691835

WASHER

- flat, 1/2 inch, Serial Range: hooks-frame

8шт.

17

K773635

SPOOL

BOBBIN - cladding, no longer available

8шт.

18

K692102

SCREW

- hex, 1/4 NC x 1-1/2 inch, bobbins to frame, no longer available

8шт.

K626662

WASHER

- flat, 1/4 inch, bobbins to frame (Replaces washer K19470)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Bobbins to frame (Replaces washer K626341) 1/4"

8шт.

K607043

NUT

- hex, 1/4 inch NC, Serial Range: bobbins-frame

2шт.

K773545

ROPE

- front, no longer available

1шт.

K773546

ROPE

- rear, no longer available

2шт.

K773636

ROPE

- hook, no longer available

2шт.

K774036

ATTACHMENT

HOOP - rubber, no longer available

2шт.

K773202

SKIRT

HOOK - curtain, left-hand, no longer available

1шт.

K772960

SKIRT

HOOK - curtain, right-hand, no longer available

1шт.

19

K773596

PLATE

BRACKET - rear number plate, no longer available

1шт.

20

K913984

PLATE

- number, rear, no longer available

1шт.

21

K603926

SCREW

- hex, 1/4 NC x 3/4 inch, Serial Range: plate-bracket

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Plate to bracket (Replaces washer K626341) 1/4"

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, plate to bracket (Replaces nut K607043)

2шт.

22

K921076

PLATE

LAMP - rear number-plate, no longer available

1шт.
