Запчасти Case IH 885 (9-36) - DB WEATHERFRAME, WINDSCREEN AND WINDSCREEN WIPER, 885 AND 885H TRACTORS WITH REINFORCED FULL FENDERS (09) - CHASSIS/ATTACHMENTS

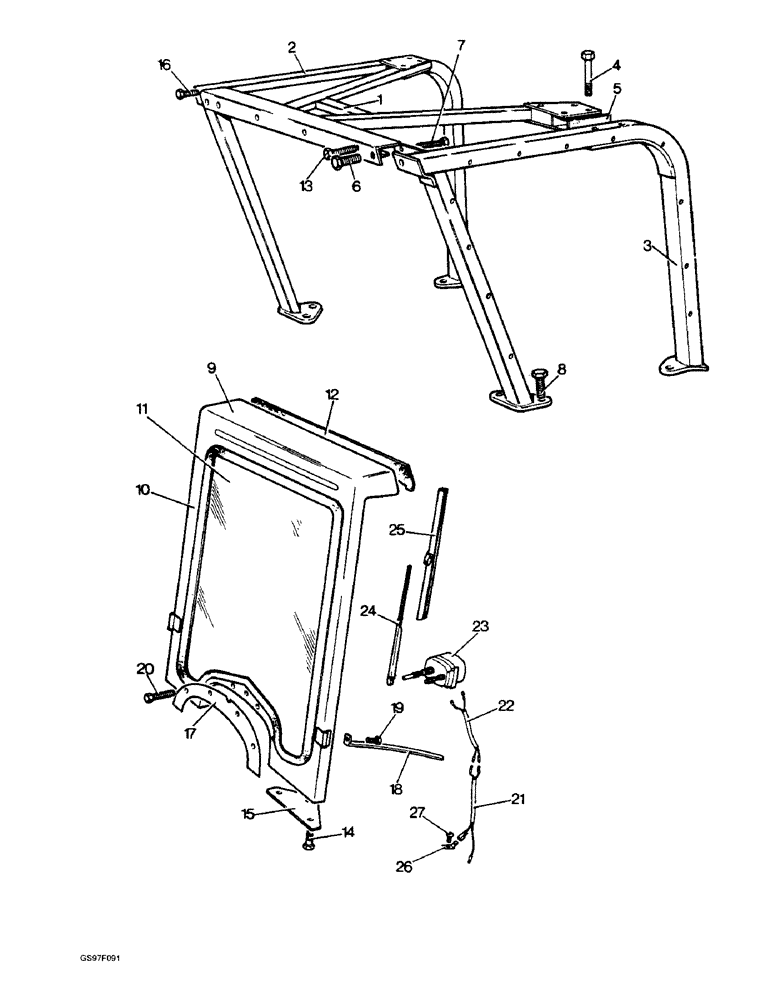

Схема запчастей Case IH 885 - (9-36) - DB WEATHERFRAME, WINDSCREEN AND WINDSCREEN WIPER, 885 AND 885H TRACTORS WITH REINFORCED FULL FENDERS (09) - CHASSIS/ATTACHMENTS
2
11
27
20
6
9
10
18
13
21
25
7
3
8
16
14
15
23
24
5
17
19
12
4
1
26
22

Артикул

Название

Примечание

Количество

1

K773345

FRAME

- top, no longer available

1шт.

K773195

PLATE - identification, no longer available

1шт.

K691567

RIVET

- identification plate to frame, no longer available

4шт.

2

K772692

FRAME

- side, right-hand

1шт.

3

K772691

FRAME

- side, left-hand

1шт.

K692065

BOLT

INSERT - 1/4 NC x 5/8 inch, no longer available

16шт.

K692101

BOLT

INSERT - 1/4 NC x 11/16 inch, no longer available

8шт.

4

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch, side frames to top frame (Replaces bolt K600887)

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Side frames to top frame (Replaces washer K626345) 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Side frames to top frame (Replaces nut K607047) 1/2"-13, G5

8шт.

5

K772174

PAD

- seating, side frames to top frame

2шт.

6

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

Side frames to top frame (Replaces bolt K603274) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

7

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch, side frames to top frame

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Side frames to top frame (Replaces washer K19485) 5/8"

6шт.

8

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

Side frames to fenders (Replaces screw K603274) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

8шт.

K691826

WASHER

- special, 5/8 inch, side, Serial Range: frames-fenders

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Side frames to fenders (Replaces washer K19485) 5/8"

8шт.

9

K773298

WINDSHIELD

WINDSCREEN ASSEMBLY - complete, no longer available, Includes: Ref. 10 and 11

1шт.

10

K772931

WINDSHIELD

FRAME - windscreen, no longer available

1шт.

11

K772674

WINDSHIELD

GLASS - windscreen, no longer available

1шт.

12

K773009

BUSHING

SPACER - rubber, windscreen to weatherframe, no longer available

1шт.

13

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Windscreen to weatherframe (Replaces bolt K603143) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

K691875

WASHER

- special, 1/2 inch, windscreen to weatherframe, no longer available

4шт.

K691874

WASHER

- rubber, 1/2 inch, windscreen to weatherframe, no longer available

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Windscreen to weatherframe (Replaces washer K626345) 1/2"

4шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, windscreen to bulkhead panels (Replaces bolt K602984)

6шт.

492-11038

LOCK WASHER,3/8"

windscreen to bulkhead panels (Replaces washer K19482) 3/8"

6шт.

425-106

NUT,3/8"-16, Cl 5

Windscreen to bulkhead panels (Replaces nut K607045) 3/8"-16, G5

6шт.

15

K773027

SEAL

PAD - seating, windscreen to bulkhead panels, no longer available

2шт.

16

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Windscreen to side panels Hex, 1/4"-20 x 1", G5

2шт.

K626662

WASHER

- flat, 1/4 inch, windscreen to side panels (Replaces washer K19470)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Windscreen to side panels (Replaces washer K626341) 1/4"

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, windscreen to side panels (Replaces nut K607043)

2шт.

17

K773261

SEAL

PLATE - sealing, windscreen to bonnet, no longer available

1шт.

18

K773705

SUPPORT

STAY - support, windscreen, no longer available

1шт.

19

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt K602982) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut K607045) 3/8"-16, G5

1шт.

K692020

SCREW

- hex, 8 x 1.25 mm, windscreen to sealing plate, no longer available

1шт.

K692022

NUT

- hex, 8 mm, windscreen to sealing plate, no longer available

1шт.

20

413-426

BOLT,Hex, 1/4" - 20 x 1-5/8", Gr 5

- hex, 1/4 NC x 1-5/8 inch, windscreen to sealing plate (Replaces bolt K692008)

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Windscreen to sealing plate (Replaces washer K626341) 1/4"

4шт.

K691893

NUT

- wing, 1/4 inch NC, windscreen to sealing plate, no longer available

4шт.

21

K773479

WIPER

LEAD - connector to connectors, no longer available

1шт.

K67916

ELEC CONNECTOR

CONNECTOR - single

2шт.

22

K773478

WIPER

LEAD - connectors to wiper motor, no longer available

1шт.

K691989

CLIP

- leads, no longer available

2шт.

K903822

WASHER

CLIP - leads, no longer available

2шт.

23

K773404

WIPER

MOTOR - windscreen wiper, no longer available, order motor K262263

1шт.

23

K262263

WIPER MOTOR

MOTOR - windscreen wiper (Replaces motor K773404)

1шт.

24

K773405

WIPER

ARM - wiper, no longer available

1шт.

25

K773406

WIPER

BLADE - wiper, no longer available

1шт.

26

K925268

BLADE

- connector, Serial Range: harness-earth

1шт.

27

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch, harness to earth (Replaces screw K614944)

1шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Harness to earth (Replaces washer K626340) #10

1шт.

225-14210

NUT,#10-32

Harness to earth (Replaces nut K617080) #10-32

1шт.

Выбрано товаров: 56
