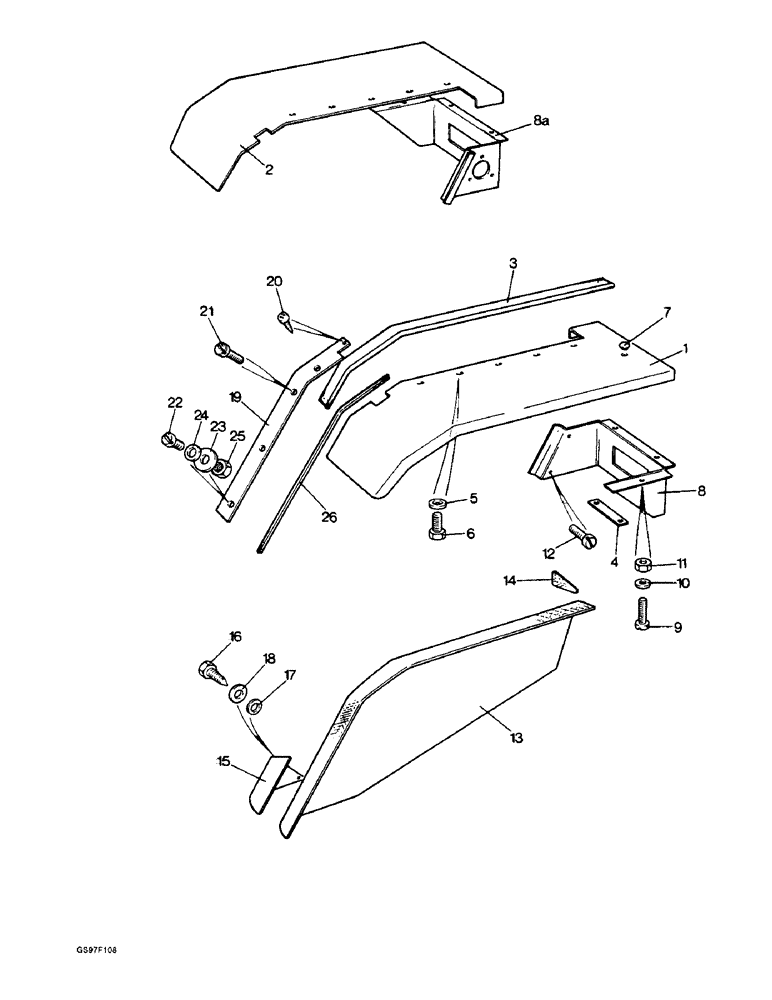

Запчасти Case IH 885 (9-34) - FENDERS AND TRIM, 885LP TRACTORS (09) - CHASSIS/ATTACHMENTS

1

K260000

FENDER

- left-hand, Sekura 41.569, no longer available

1шт.

2

K260001

FENDER

- right-hand, Sekura 41.568, no longer available

1шт.

3

K260002

GASKET

SEAL- fender, Sekura 21.475, no longer available

2шт.

4

K260003

PLATE

- clamping, Sekura 21.662, no longer available

2шт.

5

K965553

WASHER

- flat, M8, Sekura 912.092, no longer available

12шт.

6

K965565

SCREW

- self-tapping, M8 x 16 mm, Sekura 916.234, no longer available

12шт.

7

K260005

LAMP

GROMMET - Sekura 946.952, no longer available

1шт.

8

K260006

BRACKET

HOUSING - right-hand, Sekura 21.482, no longer available

1шт.

8a

K260007

BRACKET

HOUSING - left-hand, Sekura 21.483, no longer available

1шт.

9

K965536

SCREW

- hex, M5 x 12 mm, Sekura 900.052, no longer available

6шт.

10

892-11005

LOCK WASHER,M5

WASHER, LOCK, , Sekura 913.105 (Replaces washer K651846) M5

6шт.

11

K965543

NUT

- hex, M5, Sekura 910.050, no longer available

6шт.

12

K965564

SCREW

- hex, self-tapping, M5 x 12 mm, Sekura 916.213, no longer available

4шт.

13

K260009

INSULATOR

COVER - left-hand fender, Sekura 414.103, no longer available

1шт.

K260010

INSULATOR

COVER - right-hand fender, Sekura 414.102, no longer available

1шт.

14

K965471

FOAM

COVER - triangular, Sekura 20.420, no longer available

2шт.

15

K260011

GUARD

COVER - left-hand, Sekura 21.822, no longer available

1шт.

K260012

GUARD

COVER - right-hand, Sekura 21.823, no longer available

1шт.

16

K260013

SCREW

- hex, self-tapping, Sekura 916.117, no longer available

2шт.

17

K965559

WASHER

- flat, Sekura 914.001, no longer available

2шт.

18

K260014

CLIP

- plastic, Sekura 914.012, no longer available

2шт.

19

K260015

GUARD

STRIP - edging, right-hand, Sekura 414.114, no longer available

1шт.

K260016

GUARD

STRIP - edging, left-hand, Sekura 414.115, no longer available

1шт.

20

K260017

SCREW

- hex, self-tapping, Sekura 916.275, no longer available

2шт.

21

K965695

SCREW

- hex, M8 x 25 mm, Sekura 905.085, no longer available

4шт.

22

K965539

SCREW

- hex, M8 x 15 mm, Sekura 905.083, no longer available

4шт.

23

K965553

WASHER

- flat, M8, Sekura 912.092, no longer available

8шт.

24

K965551

WASHER

- flat, M8, Sekura 912.091, no longer available

8шт.

25

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Sekura 910.080, No Longer Available

8шт.

26

K260018

STRIP

- edging, 960 mm, Sekura 931.009.960, no longer available

2шт.
