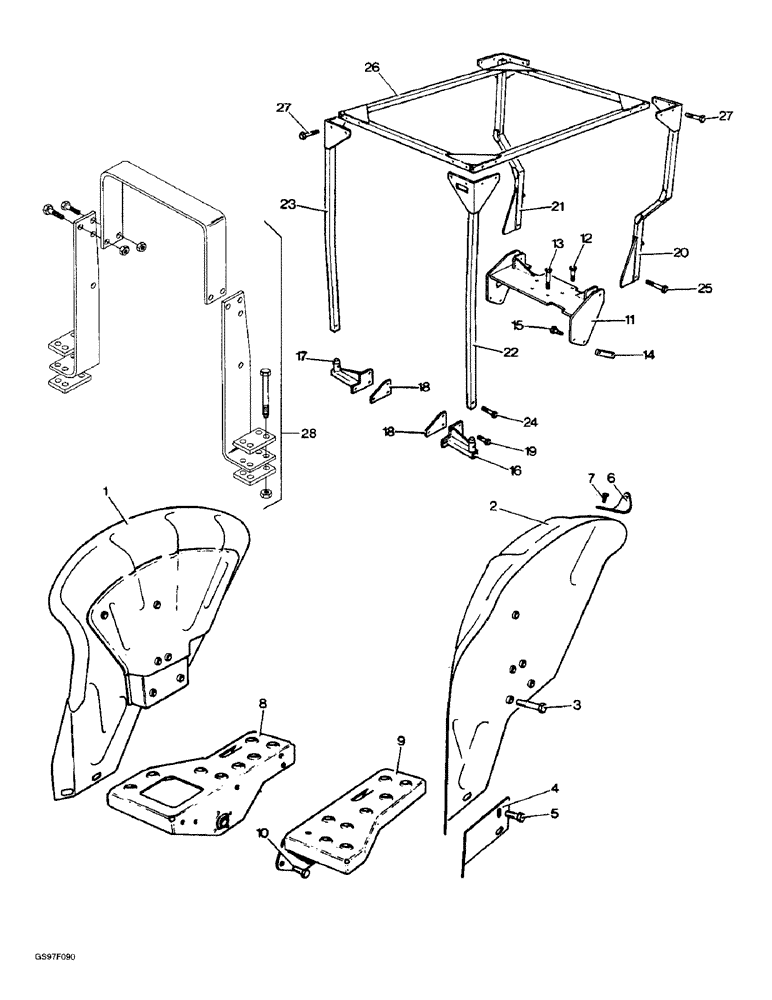

Запчасти Case IH 885 (9-30) - FENDERS, FRAME PLATFORMS AND SAFETY FRAME, 885 NARROW TRACTORS (09) - CHASSIS/ATTACHMENTS

1

K917304

FENDER

- shell, right-hand, no longer available

1шт.

2

K917305

FENDER

- shell, left-hand, no longer available

1шт.

K627711

PLUG

- plastic, 17/32 inch, right-hand fender

1шт.

3

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

fenders to axle (Replaces bolt K600562) Hex, 3/8"-16 x 3", G5

8шт.

492-11038

LOCK WASHER,3/8"

fenders to axle (Replaces washer K19482) 3/8"

8шт.

4

K924996

PLATE

- bridge, fenders to frame platforms, no longer available

2шт.

5

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch, fenders to frame platforms (Replaces bolt K602733)

8шт.

K626662

WASHER

- flat, 1/4 inch, fenders to frame platforms (Replaces washer K19470)

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Fenders to frame platforms (Replaces washer K626341) 1/4"

8шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, fenders to frame platforms (Replaces nut K607043)

8шт.

6

K943024

BRACKET

- reflector

2шт.

K302778

REFLECTOR

- bracket (Replaces reflector K951642)

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer K626340) #10

2шт.

K11109

NUT

- hex, 2 BA

2шт.

7

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch, brackets to fenders (Replaces screw K614944)

4шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Brackets to fenders (Replaces washer K19488) #10

4шт.

225-14210

NUT,#10-32

Brackets to fenders (Replaces nut K617080) #10-32

4шт.

8

K924972

PLATFORM

ASSEMBLY - frame, right-hand, no longer available, Includes: Bracket and Bearing

1шт.

9

K924973

PLATFORM

ASSEMBLY - frame, left-hand, no longer available, Includes: Bracket and Bearing

1шт.

K85415

BRACKET

- bearing

1шт.

K904258

SPHERICAL BEARING

BEARING - brake cross shaft

1шт.

10

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

Platforms to frame (Replaces K603003) Hex, 7/16"-14 x 1", G5, Full Thd

9шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Platforms to frame (Replaces washer K19483) 7/16"

9шт.

11

K774211

MOUNTING PARTS

BRACKET - rear mounting, no longer available

1шт.

12

113-2433

BOLT,Hex, 1/2" - 13 x 2-3/8", Gr 5

Hex, 1/2"-13 x 2 3/8", G5, Bracket to PTO reductions, no longer available (Replaces bolt K600883)

4шт.

13

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

Bracket to PTO reductions (Replaces bolt K600889) Hex, 1/2"-13 x 3 3/4", G5

2шт.

14

K77427

SPACER - bracket to reductions, no longer available

2шт.

15

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Bracket to reductions (Replaces bolt K600885) Hex, 1/2"-13 x 1 3/4", G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer K626345) 1/2"

4шт.

16

K774229

SUPPORT

BRACKET - support, left-hand, no longer available

1шт.

17

K774228

SUPPORT

BRACKET - support, right-hand, no longer available

1шт.

18

K774227

PLATE

- packing, no longer available

2шт.

19

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch (Replaces bolt K603276)

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer K19485) 5/8"

6шт.

20

K774249

TUBE

POST - corner, left-hand, rear, no longer available

1шт.

21

K774250

TUBE

POST - corner, right-hand, rear, no longer available

1шт.

22

K774247

POST

- corner, left-hand, front, no longer available

1шт.

23

K774248

POST

- corner, right-hand, front, no longer available

1шт.

24

K692091

BOLT

- hex, 1/2 NF x 2-3/4 inch, no longer available

2шт.

231-2448

LOCK NUT,1/2"-20, GB

NUT - light hex, self-locking, 1/2 inch NF (Replaces nut K617304)

2шт.

25

K692093

BOLT

- hex, 5/8 NF x 3-3/4 inch, no longer available

2шт.

K626855

WASHER

- flat, 5/8 inch

2шт.

131-377

LOCK NUT,5/8"-11, GC

NUT - Nyloc, 5/8 inch NF

2шт.

26

K774239

FRAME

- roof, no longer available

1шт.

27

K692092

BOLT

- hex, 1/2 NF x 3 inch, posts to roof frame, no longer available

16шт.

231-2448

LOCK NUT,1/2"-20, GB

NUT - light hex, self-locking, 1/2 inch NF, posts to roof frame (Replaces nut K617304)

16шт.

K626686

WASHER

- flat, 1/2 inch, posts to roof frame

36шт.

28

220520A1

KIT - ROPS attachment

1шт.

28

245080A1

KIT - ROPS attachment, foldable

1шт.
