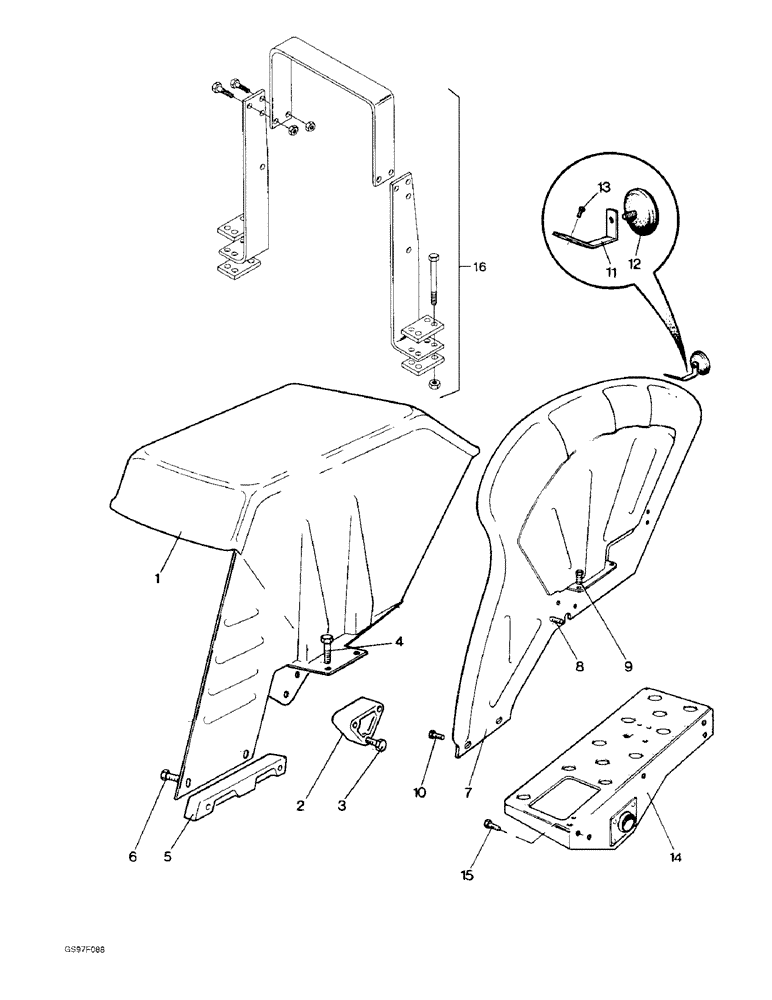

Запчасти Case IH 885 (9-26) - FENDERS AND FRAME PLATFORMS, 885 TRACTORS WITHOUT REINFORCED FULL FENDERS (09) - CHASSIS/ATTACHMENTS

1

K945494

FENDER

- full, right-hand, no longer available

1шт.

K945493

FENDER

- full, left-hand, no longer available

1шт.

2

K923911

BLOCK

- packing, brackets to reductions, no longer available

1шт.

3

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

Brackets to reductions (Replaces bolt K600889) Hex, 1/2"-13 x 3 3/4", G5

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Brackets to reductions (Replaces washer K626345) 1/2"

6шт.

K626686

WASHER

- flat, 1/2 inch, Serial Range: brackets-reductions

6шт.

4

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, fenders to axle (Replaces bolt K603141)

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Fenders to axle (Replaces washer K626345) 1/2"

4шт.

5

K946569

BUSHING

SPACER - damping, fender backplate to frame platforms, no longer available

2шт.

6

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Fender backplate to frame platforms Hex, 1/4"-20 x 2", G5

3шт.

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

Fender backplate to frame platforms (Replaces bolt K600151) Hex, 1/4"-20 x 2 1/4", G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Fender backplate to frame platforms (Replaces washer K626341) 1/4"

4шт.

K626662

WASHER

- flat, 1/4 inch, fender backplate to frame platforms (Replaces washer K19470)

8шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut K607043)

4шт.

K627781

PLUG

- plastic, 1/4 inch (Replaces plug K627713)

11шт.

K627711

PLUG

- plastic, 17/32 inch

2шт.

7

K914247

FENDER

- shell, right-hand

1шт.

K914302

FENDER

- shell, left-hand, no longer available

1шт.

8

K603049

BOLT

SCREW - hex, 7/16 NC x 7/8 inch

6шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Fenders to rear axle (Replaces washer K626344) 7/16"

6шт.

K626314

WASHER

- flat, 7/16 inch, fenders to rear axle

6шт.

9

K603139

SCREW

- hex, 1/2 NC x 7/8 inch, fenders to rear axle, no longer available

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer K626345) 1/2"

4шт.

10

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch, shell fenders to platforms (Replaces bolt K602733)

3шт.

K626662

WASHER

- flat, 1/4 inch, shell fenders to platforms (Replaces washer K19470)

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Shell fenders to platforms (Replaces washer K626341) 1/4"

4шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, shell fenders to platforms (Replaces nut K607043)

4шт.

K602736

SCREW

- hex, 1/4 NC x 7/8 inch

1шт.

11

K929468

BRACKET

- reflector, full fender

2шт.

11

K943021

BRACKET

- reflector, no longer available

2шт.

12

K302778

REFLECTOR

- bracket (Replaces reflector K951642)

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Reflectors to brackets (Replaces washer K626340) #10

2шт.

K11109

NUT

- hex, 2 BA, Serial Range: reflectors-brackets

2шт.

13

K603924

SCREW

- hex, 1/4 NC x 1/2 inch, brackets to full fenders, no longer available

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Brackets to full fenders (Replaces washer K626341) 1/4"

4шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch, brackets to full fenders (Replaces nut K607043)

4шт.

13

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch, brackets to shell fenders (Replaces screw K614944)

4шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Brackets to shell fenders (Replaces washer K19488) #10

4шт.

225-14210

NUT,#10-32

Brackets to shell fenders (Replaces nut K617080) #10-32

4шт.

14

K913494

FRAME

PLATFORM ASSEMBLY - frame, right-hand, Includes: Bearing and Bracket

1шт.

K921689

FRAME

PLATFORM ASSEMBLY - frame, left-hand, no longer available, Includes: Bearing and Bracket

1шт.

K904258

SPHERICAL BEARING

BEARING - platform

1шт.

K85415

BRACKET

- platform

1шт.

15

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

Platforms to frame (Replaces K603003) Hex, 7/16"-14 x 1", G5, Full Thd

9шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Platforms to frame (Replaces washer K19483) 7/16"

9шт.

K915422

SUPPORT

STIRRUP - platforms, no longer available

1шт.

K602736

SCREW

- hex, 1/4 NC x 7/8 inch, Serial Range: stirrup-platform

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Stirrup to platform (Replaces washer K626341) 1/4"

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, stirrup to platform (Replaces nut K607043)

2шт.

16

220520A1

KIT - ROPS attachment

1шт.

16

245080A1

KIT - ROPS attachment, foldable

1шт.
