Запчасти Case IH 885 (2-02) - RADIATOR AND BLIND (02) - ENGINE

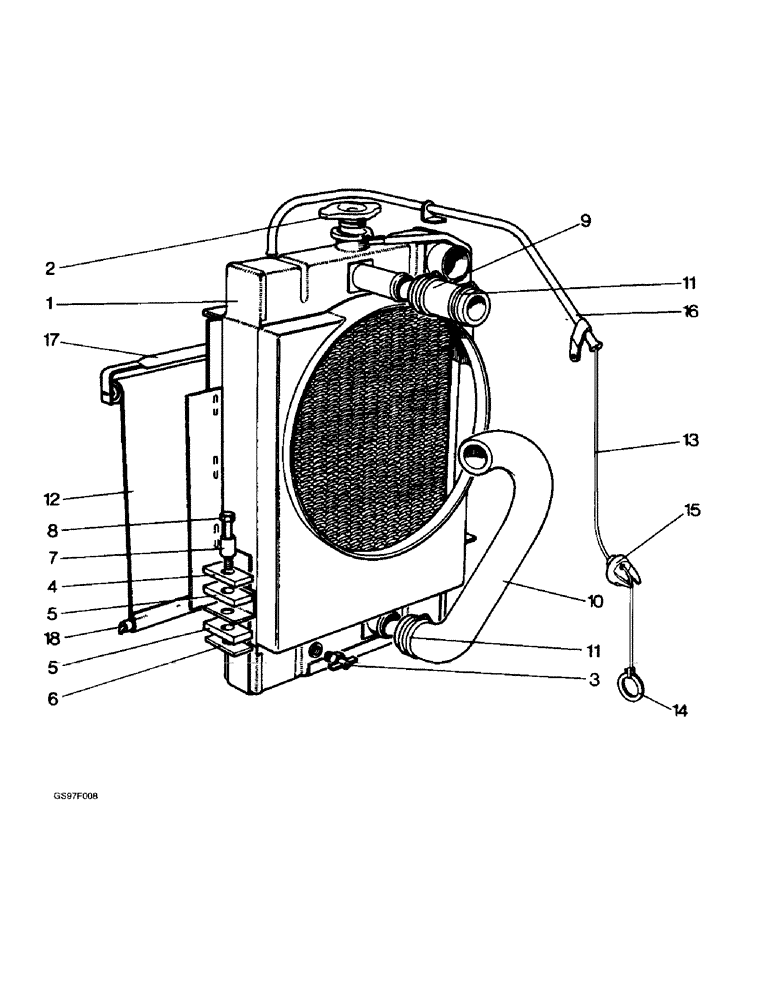

Схема запчастей Case IH 885 - (2-02) - RADIATOR AND BLIND (02) - ENGINE
2
13
18
7
4
12
1
17
5
5
3
15
11
9
8
14
10
6
11
16

Артикул

Название

Примечание

Количество

1

K922737

RADIATOR

ASSEMBLY - standard, 2-1/4 inch block, 7 gills per inch, no longer available, Includes: Ref. 2

1шт.

1

K922736

RADIATOR

ASSEMBLY - tropical, 2-1/4 inch block, 8 gills per inch, no longer available, Includes: Ref. 2

1шт.

2

K945363

CAP

- filler, 4 pound per square inch, used with radiator assembly K922737

1шт.

2

E81942

RADIATOR CAP,Vented

CAP - filler, 7 pound per cubic inch, used with radiator assembly K922736

1шт.

3

K622060

PLUG, DRAIN

CAP - drain, 1/4 inch BSP

1шт.

K19501

WASHER

WASHER - fibre, 1/2 inch

1шт.

4

K921837

SHIM

PLATE - clamping

2шт.

5

K921836

WEDGE

PACKING - foot

4шт.

6

K926609

SUPPORT

PLATE - support

2шт.

7

K908823

TUBE,0.562" OD x 0.875" L

- distance

2шт.

8

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(Replaces K600406) Hex, 3/8"-16 x 1 3/4", G5

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

2шт.

9

K37575

HOSE

- radiator inlet

1шт.

10

K915206

HOSE

- radiator outlet

1шт.

11

K622029

CLAMP

CLIP - hose, 2-1/8 inch diameter

4шт.

12

K912318

RADIATOR

BLIND - radiator, no longer available

1шт.

13

K67196

ROPE

CORD - control, if used (Replaces cord K924668)

1шт.

14

K952646

KEY

RING - control cord, if used, no longer available

1шт.

15

K952633

ROD

ANCHOR - control cord, if used

1шт.

16

K912910

TUBE

- control cord, no longer available

1шт.

17

K912319

ROD

- pull, radiator blind, no longer available

1шт.

18

K921739

ROD

ANCHOR - radiator blind, if used, no longer available

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), (Replaces pin K19520) 1/16" x 1/2"

2шт.

Выбрано товаров: 23
