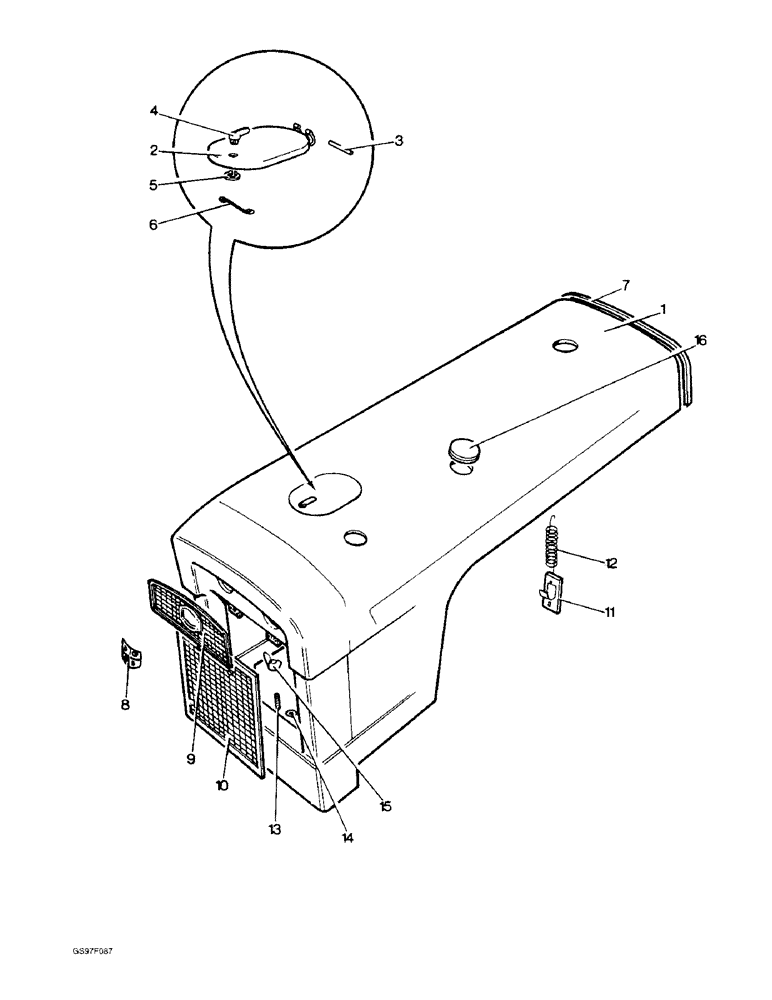

Запчасти Case IH 885 (9-24) - BONNET ASSEMBLY, 885 NARROW TRACTORS (09) - CHASSIS/ATTACHMENTS

1

K961886

PLATE

BONNET ASSEMBLY - complete, no longer available, Includes: Ref. 2 - 7, Rivet, and Bracket

1шт.

2

K962015

COVER

- hatch, no longer available, Includes: Ref. 3 - 5

1шт.

3

K914557

SPRING

PIN - hatch pivot

1шт.

4

K942158

LEVER

- hatch cover, no longer available

1шт.

K626956

WASHER

- fibre, 7/16 inch

1шт.

K626899

SHIM

WASHER - brass, 7/16 inch

1шт.

5

100-3343

SNAP RING,#43, .337" Dia, E-Type

Ring, Retaining, (replaces ring A19811) #43, .337" Dia, E-Type

1шт.

6

K917749

FASTENER

SPRING - hatch fastener

1шт.

K916654

SHIM

BRACKET - louvre, includes rivet, spring and washer

2шт.

K19495

WASHER

- flat, 1/8 inch, no longer available

2шт.

7

K946390

BEAD

TRIM - bonnet, 38 inch (965 mm) long, no longer available, order trim K965011 below

1шт.

7

K965011

BEAD

TRIM - bonnet, 37 inch (940 mm) long

1шт.

K624151

RIVET

- 1/8 x 1/8 inch, no longer available

11шт.

K916654

SHIM

BRACKET - louvre, with spring

2шт.

8

K951132

DECAL

TRANSFER - DB emblem, no longer available

1шт.

9

K916539

PLATE

- louvre, outboard headlamps, no longer available

1шт.

K917052

PRODUCT GRAPHIC

TRANSFER - bonnet louvre, outboard headlamps

1шт.

131-417

NUT

BUSHING - retaining, outboard headlamps (Replaces bushing K624587)

5шт.

K627999

PLUG

- bonnet side, inboard headlamps, no longer available

2шт.

K914804

PLUG

- bonnet nose, inboard headlamps

4шт.

10

K947841

GUARD

LOUVRE - bonnet, 15-3/16 x 12-3/8 inch (Replaces louvre K947648)

1шт.

K921811

FASTENER

- louvre

2шт.

K627771

BUTTON

GROMMET - louvre locating (Replaces grommet K913139)

2шт.

11

K88680

GRIP

- finger

2шт.

12

K624914

SPRING

- finger grip

2шт.

13

K608125

STUD

- 5/16 NC x 1-3/4 inch

1шт.

14

K913740

GROMMET

WASHER - rubber, 5/16 inch

1шт.

K626682

WASHER

- flat, 5/16 inch (Replaces washer K19471)

1шт.

15

K607201

NUT

- wing, 5/16 inch NC

1шт.

16

K956075

INSERT

- rubber, 3-1/4 inch diameter, exhaust pipe aperture, engine serial number E43947 and after, no longer available

1шт.

16

K914347

INSERT

- rubber, 2-3/4 inch diameter, exhaust pipe aperture, engine serial numbers prior to E43947, no longer available

1шт.
