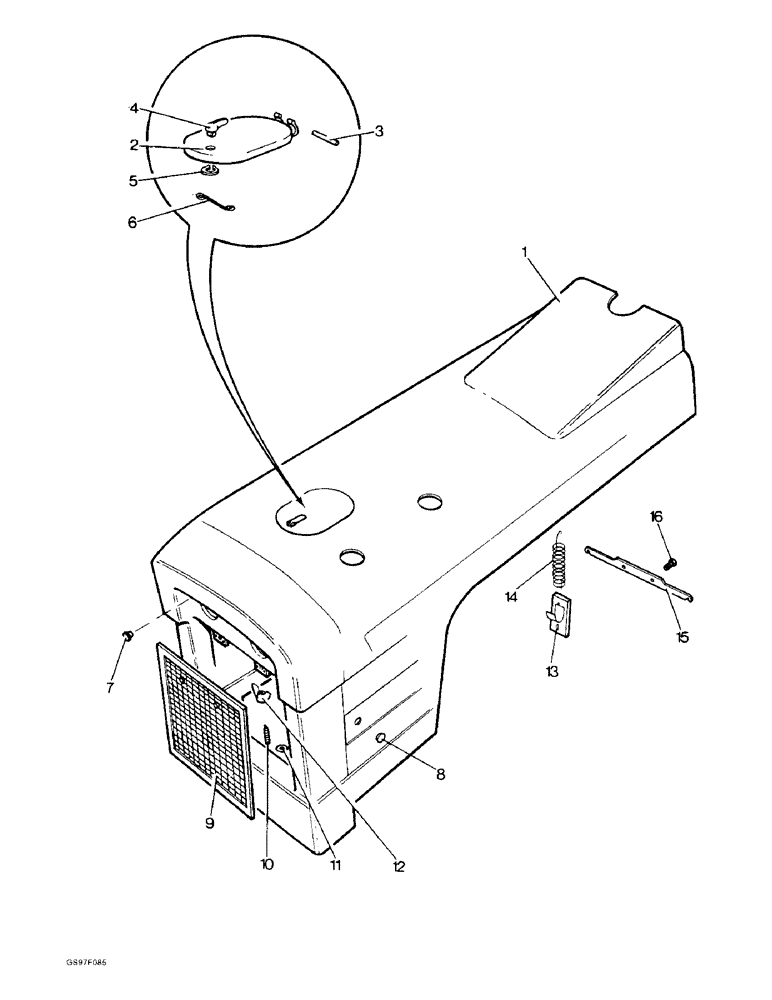

Запчасти Case IH 885 (9-20) - BONNET ASSEMBLY, 885Q, 885QH, 885SK AND 885LP TRACTORS (09) - CHASSIS/ATTACHMENTS

1

K964828

HOOD

BONNET ASSEMBLY - complete, used with 885Q and 885Sk tractors, no longer available, Includes: Ref. 2 - 6, Bracket's, Washer, Strip's, Beading's, and, Rivet

1шт.

1

K965916

HOOD

BONNET ASSEMBLY - complete, used with 885LP tractors, no longer available, Includes: Ref. 2 - 6, Bracket's, Washer, Strip's, Beading's, and Rivet

1шт.

2

K962015

COVER

ASSEMBLY - hatch, no longer available, Includes: Ref. 3 - 5

1шт.

3

K914557

SPRING

PIN - hatch cover

1шт.

4

K942158

LEVER

- cover, no longer available

1шт.

K626956

WASHER

- fibre, 7/16 inch

1шт.

K626899

SHIM

WASHER - brass, 7/16 inch

1шт.

5

100-3343

SNAP RING,#43, .337" Dia, E-Type

Ring, Retaining, (replaces ring A19811) #43, .337" Dia, E-Type

1шт.

6

K917749

FASTENER

SPRING - hatch fastener

1шт.

K916654

SHIM

BRACKET - louvre, includes rivet, spring and washer

2шт.

K19495

WASHER

- flat, 1/8 inch, no longer available

2шт.

K924653

STRIP

- clamping, top, bonnet to radiator sealing, no longer available

1шт.

K924651

BEAD

ING - top, bonnet to radiator sealing, no longer available

1шт.

K924654

STRIP

- clamping, end, bonnet to radiator sealing, no longer available

1шт.

K924652

STRIP

BEADING - end, bonnet to radiator sealing, no longer available

1шт.

K624153

RIVET

- snap head, bonnet to radiator sealing, no longer available

5шт.

K916654

SHIM

BRACKET - louvre fastener, with spring

2шт.

7

K914804

PLUG

- bonnet nose

4шт.

8

K627999

PLUG

- bonnet side, no longer available

2шт.

9

K947840

GUARD

LOUVRE - bonnet (Replaces louvres K947646 and K948152)

1шт.

K921811

FASTENER

- bonnet louver

2шт.

K627771

BUTTON

GROMMET - louvre locating

2шт.

10

K608125

STUD

- 5/16 NC x 1-3/4 inch, bonnet to main frame

1шт.

11

K913740

GROMMET

WASHER - rubber, 5/16 inch, bonnet to main frame

1шт.

K626682

WASHER

- flat, 5/16 inch, bonnet to main frame (Replaces washer K19471)

1шт.

12

K607201

NUT

- wing, 5/16 inch NC, bonnet to main frame, no longer available

1шт.

13

K88680

GRIP

- finger, bonnet fastener

2шт.

14

K624914

SPRING

- bonnet fastener

2шт.

15

K953892

SPRING

BRACKET - anchor, left-hand, bonnet fastener, used with 885Q, 885QH and 885Sk tractors with serial number 11006080 and after, no longer available

1шт.

15

K201816

BRACKET

- anchor, left-hand, bonnet fastener, used with 885LP tractors, no longer available

1шт.

15

K953891

SPRING

BRACKET - anchor, right-hand, bonnet fastener, used with 885Q, 885QH and 885Sk tractors with serial number 11006080 and after, no longer available

1шт.

15

K201817

BRACKET

- anchor, right-hand, bonnet fastener, used with 885LP tractors, no longer available

1шт.

15

K951632

BRACKET

- anchor, left-hand, bonnet fastener, used with 885Q, 885QH and 885Sk tractors with serial numbers prior to 11006080, no longer available

1шт.

16

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Anchor bracket fastening, used with 885Q, 885QH and 885Sk tractors with serial numbers prior to 11006080 Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

16

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

Anchor bracket fastening, used with 885LP tractors (Replaces bolt K602700) Hex, 1/4"-20 x 3/8", G5, Full Thd

2шт.

492-11038

LOCK WASHER,3/8"

anchor bracket fastening, used with 885Q, 885QH and 885Sk tractors with serial numbers prior to 11006080 3/8"

2шт.

K626941

WASHER - special, 3/8 inch, anchor bracket fastening, used with 885Q, 885QH and 885Sk tractors with serial numbers prior to 11006080, no longer available

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, anchor bracket fastening, used with 885LP tractors (Replaces nut K607000)

2шт.

K946390

BEAD

TRIM - fuel filler hole, 38 inch (965 mm) long, used with 885LP tractors, no longer used, order trim K965011 below

1шт.

K965011

BEAD

TRIM - fuel filler hole, 37 inch (940 mm) long

1шт.
