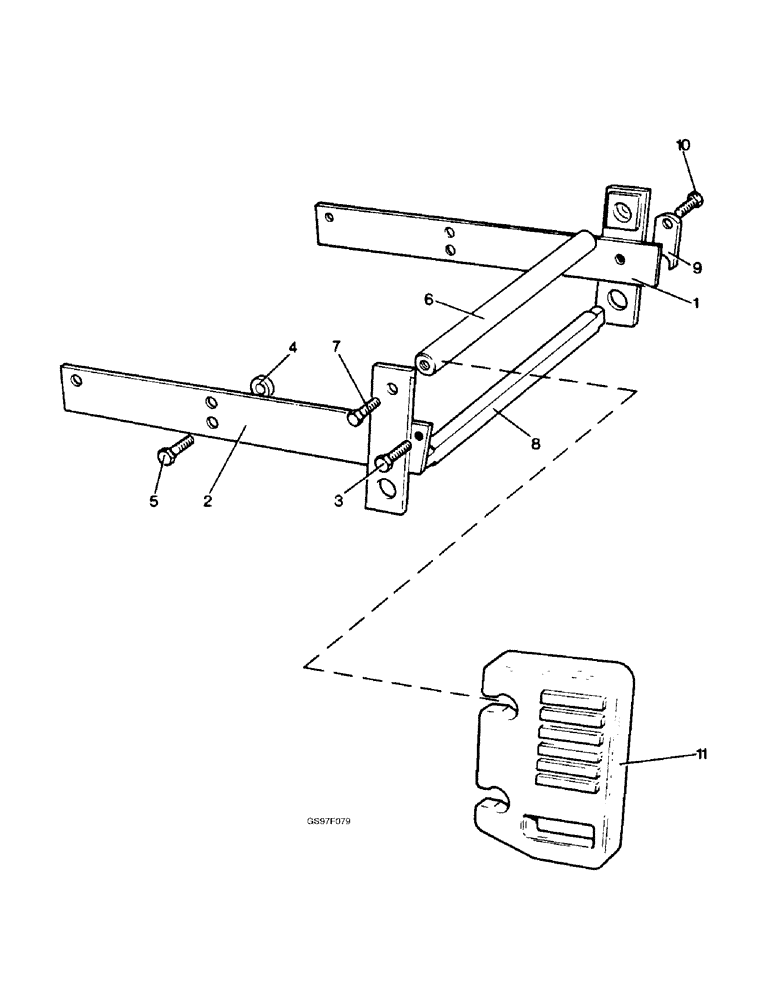

Запчасти Case IH 885 (9-18) - FRONT CHASSIS BALLAST WEIGHTS (09) - CHASSIS/ATTACHMENTS

1

K928602

FRAME

- support, left-hand, no longer available

1шт.

2

K928603

FRAME

- support, right-hand, no longer available

1шт.

3

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Frames to weights (Replaces bolt K603143) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex jam, 1/2 inch NC, Frames to weights (Replaces nut K607084)

2шт.

4

K627099

BUSHING

SPACER - support frames to main frame, no longer available

6шт.

K626910

WASHER

- flat, packing, 5/8 inch, support frames to main frame

1шт.

K19475

WASHER

- flat, 5/8 inch, support frames to main frame

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Support frames to main frame (Replaces washer K19485) 5/8"

6шт.

5

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

support frames to main frame (Replaces bolt K601360) Hex, 5/8"-11 x 2 1/2", G5

6шт.

6

K928604

BAR

- upper, no longer available

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Bar to supports (Replaces washer K19485) 5/8"

2шт.

7

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch, bar to supports (Replaces bolt K603276)

2шт.

8

K928605

BAR

- lower, no longer available

1шт.

9

K928607

HANDLE

- locking, no longer available

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer K19484) 1/2"

1шт.

10

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(Replaces bolt K603143) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

11

K928606

WEIGHT

- ballast, 45 lb, no longer available

9шт.
