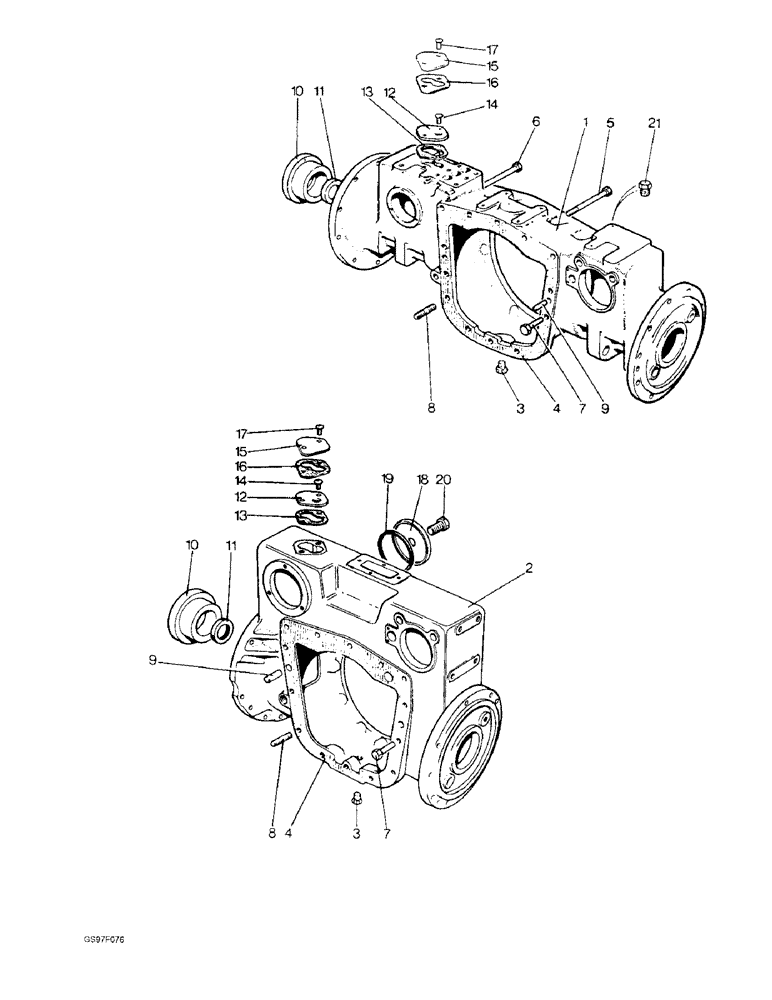

Запчасти Case IH 885 (9-12) - REAR AXLE HOUSING AND COVERS (09) - CHASSIS/ATTACHMENTS

1

K924785

SHAFT

HOUSING - rear axle, used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors, no longer available

1шт.

2

K915126

SHAFT

HOUSING - rear axle, used with 885N tractors, no longer available

1шт.

3

K623826

PLUG

- drain, 3/4 inch BSP, used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors

1шт.

K626315

WASHER

- sealing, 1-1/16 inch, used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors

1шт.

4

K926122

GASKET,0.25mm Thk

- rear axle housing (Replaces gasket K200025)

1шт.

5

B90111

SCREW

BOLT - hex, axle to gearbox cover, used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors (Replaces bolt K600620)

4шт.

6

13-7124

BOLT,Hex, 7/16" - 14 x 7-3/4", Gr 5

- hex, 7/16 NC x 7-3/4 inch, axle to gearbox cover

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Axle to gearbox cover (Replaces washer K19483) 7/16"

5шт.

7

61-720

HEX SOC SCREW,7/16"-14 x 1 1/4"

BOLT - hex socket, 7/16 NC x 1-1/4 inch, rear axle to rear main frame (Replaces bolt K606656)

2шт.

8

K608318

STUD

- 7/16 NC x 2 inch, rear axle to rear main frame

7шт.

K697003

NUT - hex, 7/16 inch NC, rear axle to rear main frame, no longer available

7шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Rear axle to rear main frame (Replaces washer K19483) 7/16"

7шт.

493-4104

WASHER - external tooth lock, 7/16 inch, rear axle to rear main frame

2шт.

9

K621826

PIN

DOWEL - 5/8 x 1-1/2 inch, rear axle to rear main frame

2шт.

10

K62356

HOUSING

- oil seals (Replaces housing K200090)

2шт.

11

K13353

SEAL,44.45mm ID x 80.96mm OD x 12.7mm Thk

- oil, 1-3/4 x 3-3/16 x 1/2 inch

4шт.

12

K929465

COVER

PLATE - cover, axle housing, with dump valve, no longer available

1шт.

13

K929464

GASKET

- cover plate, with dump valve

1шт.

14

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- hex, 5/16 NC x 1-1/8 inch, with dump valve (Replaces bolt K602844)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , with dump valve (Replaces washer K19481) 5/16"

2шт.

15

K929463

COVER

PLATE - cover, axle housing, without dump valve

1шт.

16

K929464

GASKET

- cover plate, without dump valve

1шт.

17

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, without dump valve (Replaces bolt K602803)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , without dump valve (Replaces washer K19481) 5/16"

2шт.

18

K924997

PLATE

- cover, by-pass filter aperture, used with 885N tractors, no longer available

1шт.

19

K913806

GASKET

RING - sealing, plate to axle, used with 885N tractors, no longer available

1шт.

K626521

SEALING WASHER

WASHER - sealing, 3/8 inch, plate to axle, used with 885N tractors

1шт.

20

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Plate to axle, used with 885N tractors (Replaces bolt K602903) Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

21

K619528

PLUG

- 7/8 inch NF, oil return port, used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors

1шт.

K30085

GASKET

WASHER - fibre, used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors

1шт.
