Запчасти Case IH 885 (9-06) - HIGH-HITCH DRAWBAR AND PICK-UP HITCH, 885G TRACTORS (09) - CHASSIS/ATTACHMENTS

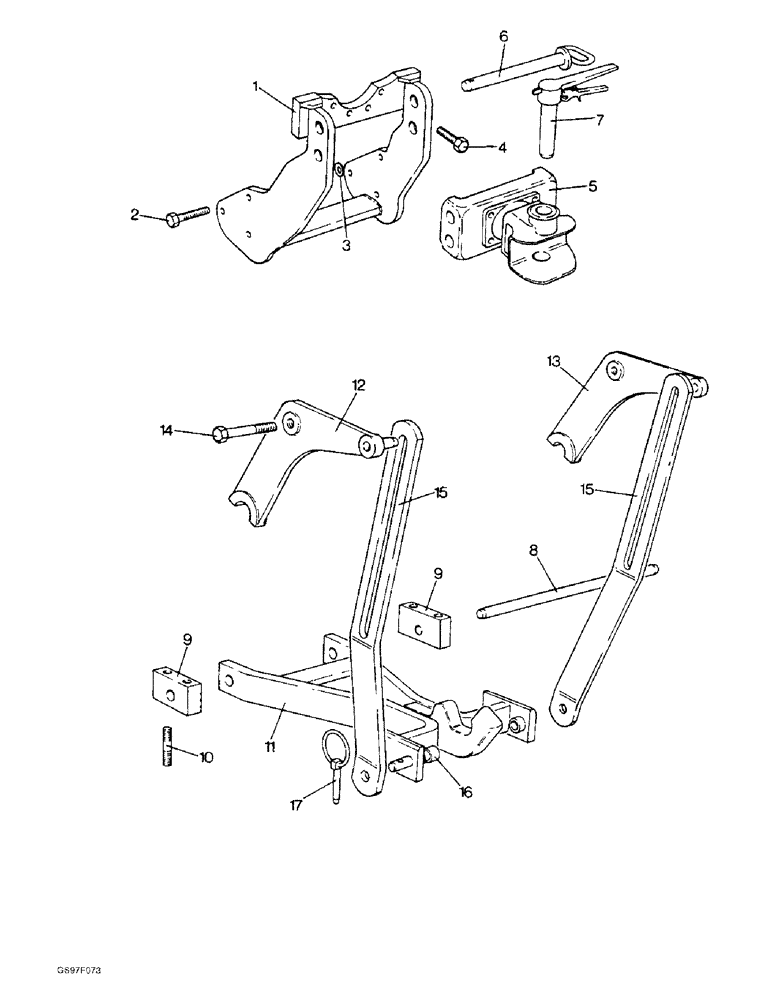

Схема запчастей Case IH 885 - (9-06) - HIGH-HITCH DRAWBAR AND PICK-UP HITCH, 885G TRACTORS (09) - CHASSIS/ATTACHMENTS
10
8
9
4
3
5
2
7
9
15
13
11
6
16
12
15
1
14
17

Артикул

Название

Примечание

Количество

K925519

SPARE PART

UNIT ASSEMBLY - high-hitch drawbar, no longer available, Includes: Ref. 1 - 7

1шт.

1

K947298

SUPPORT

FRAME - support, high-hitch drawbar, no longer available

1шт.

2

K600807

BOLT

- hex, 1/2 NC x 2-1/8 inch, no longer available

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer K19484) 1/2"

6шт.

3

K626871

WASHER - packing, 0.065 inch, no longer available

1шт.

3

K626872

WASHER - packing, 0.025 inch, no longer available

1шт.

4

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

hex, 5/8 NC x 2 inch (Replaces bolt K601204)

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer K19485) 5/8"

4шт.

5

K917856

CLUTCH

COUPLING ASSEMBLY - trailer, high-hitch drawbar, no longer available, Includes: Ref. 6 and 7

1шт.

6

K917858

SPARE PART

PIN - coupling to frame, no longer available

2шт.

7

K917857

PIN

- hitch, no longer available

1шт.

K911292

NO LONGER SERVICED

UNIT ASSEMBLY - hinge bar, no longer available, Includes: Ref. 8 - 10 and Nut

1шт.

8

K918764

HINGE

BAR - hinge, no longer available

1шт.

9

K912087

HINGE

BRACKET - hinge

2шт.

10

K608508

STUD

- 1/2 NC x 3-7/8 inch

4шт.

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC (Replaces nut K607304)

4шт.

K918398

HITCH ASSY

UNIT ASSEMBLY - pick-up hitch, Includes: Ref. 11 - 16 and Pin

1шт.

11

K921724

SUPPORT

FRAME - support, no longer available

1шт.

12

K908414

ARM

- lift, left-hand, no longer available

1шт.

13

K908415

ARM

- lift, right-hand, no longer available

1шт.

14

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch (Replaces bolt K601416)

2шт.

15

K912431

ROD - lift, no longer available

2шт.

K626684

WASHER

- special, 7/8 inch

2шт.

16

K912432

PIN

- support frame, no longer available

2шт.

K210316

LINCH PIN

PIN - linch, with ring (Replaces pin K66408)

4шт.

Выбрано товаров: 25
