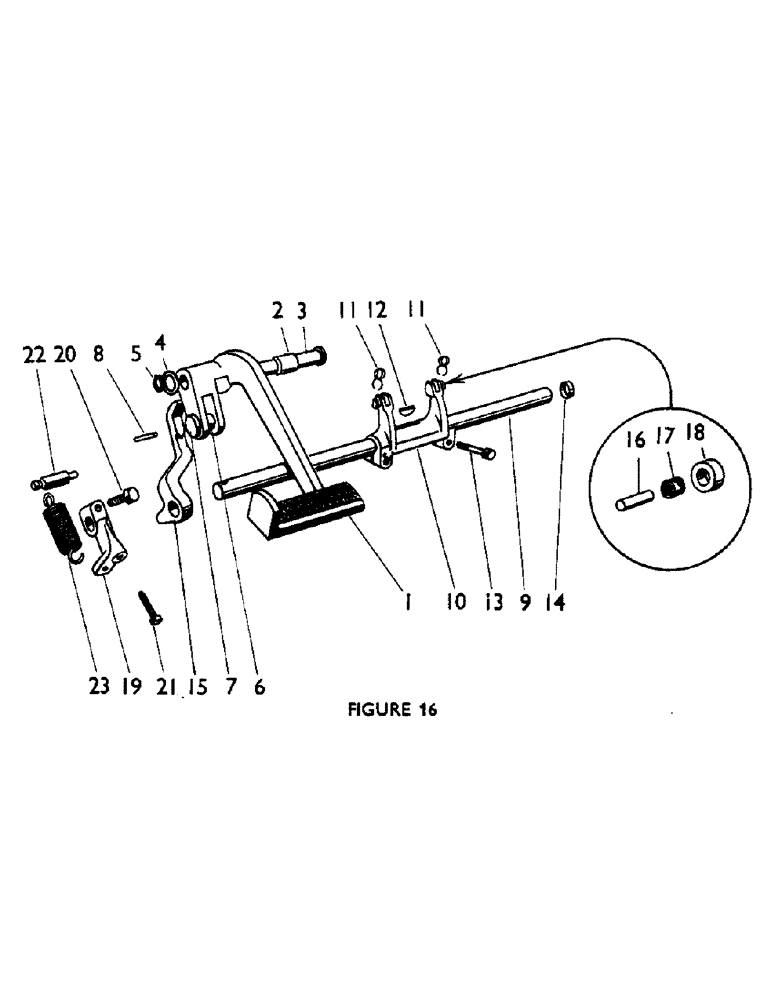

Запчасти Case IH 880UF (26) - CLUTCH, FOOT CONTROL (03.1) - CLUTCH

1

K929442

CLUTCH

PEDAL

1шт.

2

K32940

BUSHING

BUSH

2шт.

3

K905053

PIN

FULCRUM PIN

1шт.

4

K19476

WASHER

3/4 in.

1шт.

5

K966031

RING, SNAP

CIRCLIP, 3/4 in.

10шт.

6

K89359

ROLLER

1шт.

7

K89360

PIN

880/UE

1шт.

K626314

WASHER

7/16 in. 880/UE

1шт.

280250

COTTER PIN,3/32" OD x 3/4" L

PIN, SPLIT (COTTER), , 880/UE 3/32" x 3/4"

1шт.

8

K24871

GROOVED PIN,1/8" x 1/2", Type D

MILLS PIN, 1/8 x 1/2 in. 880/UE

1шт.

K900722

PIN

880/UF

1шт.

K621560

SNAP RING,#40, Ext

CIRCLIP 880/UF

1шт.

9

K905649

SHAFT

CLUTCH CROSS SHAFT

1шт.

10

K905650

CLUTCH FORK

1шт.

11

K89336

SPRING

- clutch fork

2шт.

12

126-15

WOODRUFF KEY,#8, 5/32" x 3/4"

(No. 506) #8, 5/32" x 3/4"

2шт.

13

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3/8 UNC x 1 3/8 in.

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

14

K89362

SEAL

DIRT EXCLUDER

1шт.

15

K906885

LEVER

CLUTCH LEVER 880/UE

1шт.

15

K906886

LEVER

CLUTCH LEVER 880/UF

1шт.

16

K966957

PIN

PIVOT PIN - clutch fork roller

20шт.

17

K620260

NEEDLE BEARING,Needle, 4.76mm ID x 8.73mm OD x 6.35mm W

NEEDLE ROLLER BEARING 880/UE

2шт.

18

K900348

ROLLER,8.72mm ID x 14.29mm OD x 6.35mm L

- clutch fork 880/UE

2шт.

19

K905651

LEVER

- clutch adjuster

1шт.

K902085

ROLLER

- clutch fork 880/UF

2шт.

K902086

BUSHING

BUSH - clutch roller 880/UF

2шт.

20

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

3/8 UNC x 1 7/8 in.

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

21

K905652

ADJUSTMENT SCREW,3/8" - 16 x 2"

ADJUSTING SCREW

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

22

K904406

SPRING

ANCHOR

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

23

K624909

SPRING

1шт.
