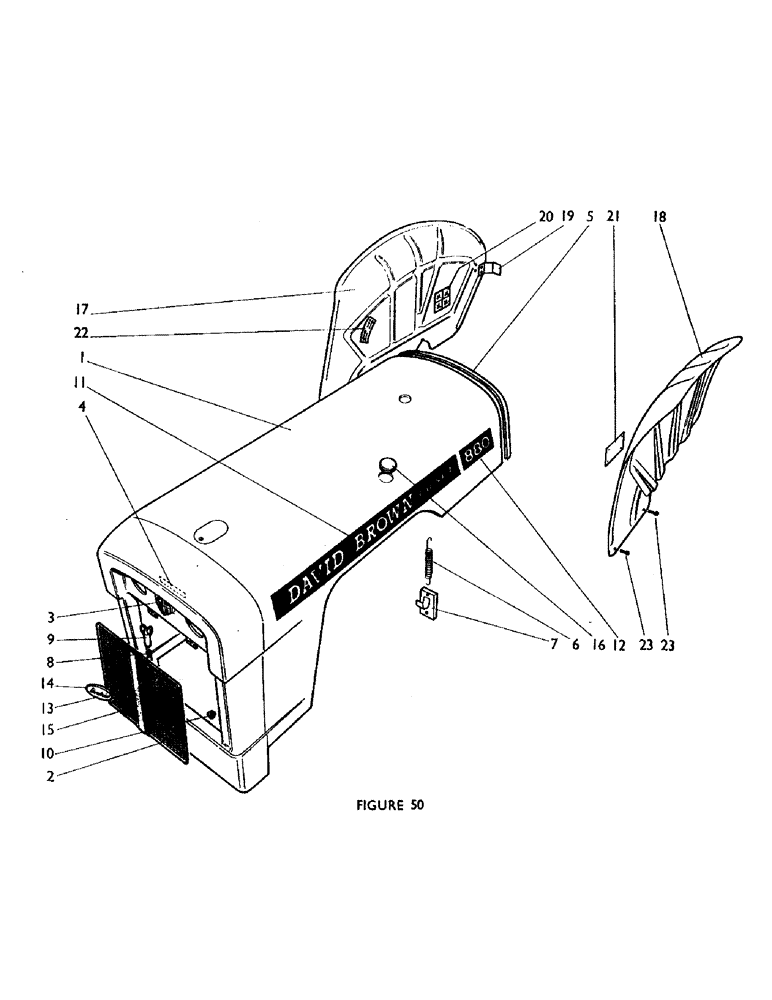

Запчасти Case IH 880UF (76) - HOOD AND FENDERS (12) - CHASSIS

1

K961776

HOOD (less louvre) (supersedes K914096)

1шт.

2

K913711

GUARD

LOUVRE

1шт.

3

K947387

DECAL

MOTIF

1шт.

4

K902368

SPRING

RETAINER - motif

1шт.

K966130

SCREW

SELF-TAPPING SCREW

2шт.

5

K913732

BEADING

1шт.

K966663

RIVET

1/8 x 1/8 in.

110шт.

6

K624911

SPRING

2шт.

7

K88680

GRIP

FINGER GRIP

2шт.

8

K608125

STUD

5/16 UNC x 1 3/4 in.

2шт.

9

K607201

NUT

WING NUT, 5/16 UNC

2шт.

K626682

WASHER

5/16 in.

2шт.

10

K913740

GROMMET

2шт.

11

K961904

DECAL

TRANSFER, 'David Brown Diesel' - left-hand

1шт.

11

K961905

PRODUCT GRAPHIC

TRANSFER, 'David Brown Diesel' - right-hand

1шт.

12

K961908

PRODUCT GRAPHIC

TRANSFER, '880' - left-hand

1шт.

12

K961909

DECAL

TRANSFER, '880' - right-hand

1шт.

13

K907855

LEVER

TRANSFER, 'Livedrive'

1шт.

14

K907884

BASE

PLATE

1шт.

K966116

BOLT (SPREADER)

PUSH-ON FIX (baseplate fixing)

20шт.

K966975

RIVET

SUPPORT (baseplate fixing)

20шт.

15

K914468

TRANSFER - hood louvre

1шт.

16

K912688

INSERT

RUBBER INSERT - exhaust pipe aperture

1шт.

17

K913146

FENDER

right-hand

1шт.

18

K913151

FENDER

left-hand

1шт.

K627710

PLUG

RUBBER, plug

2шт.

19

K943024

BRACKET

- reflector

2шт.

20

K961617

DECAL

TRANSFER - linkage settings

1шт.

21

K954684

PLATE

LUBRICATION INSTRUCTION PLATE

1шт.

K624153

RIVET

1/8 x 1/4 in.

4шт.

22

K917237

DECAL

TRANSFER - hydraulic lift control

1шт.

23

K966463

SCREW

1/4 UNC x 1/2 in.

40шт.
