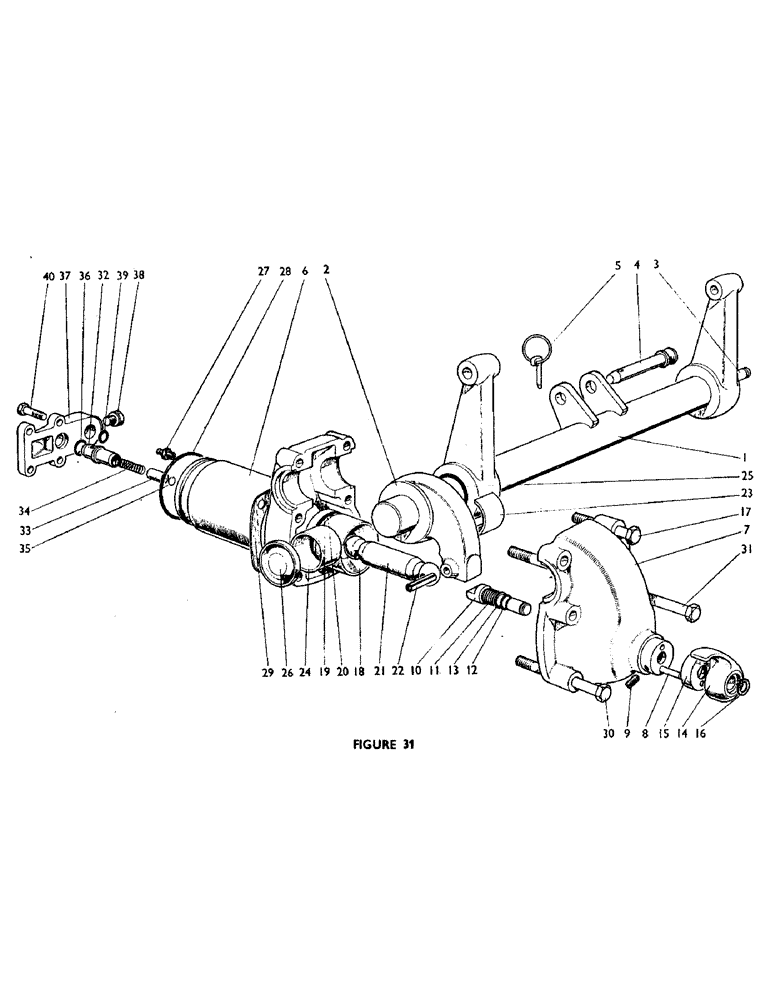

Запчасти Case IH 880UF (48) - ROCKSHAFT AND RAM CYLINDER (07) - HYDRAULIC SYSTEM

1

K906477

SPARE PART

ROCKSHAFT AND LEVERS

1шт.

2

K906796

ARM

RAM LEVER 906477

1шт.

K622381

KEY

906477

2шт.

3

K903407

PIN

EXTENSION 906477

1шт.

4

K912936

PIN

LINK PIN 906477

1шт.

5

K210316

LINCH PIN

AND RING 906477

1шт.

6

K961748

CYLINDER

BODY AND COVER ASSEMBLY

1шт.

7

K961742

COVER

AND LIFT LOCK ASSEMBLY 961741

1шт.

8

K966535

NEEDLE

ROLLER 961742

20шт.

9

K606052

SET SCREW,Hex Skt, 5/16" - 18 x 3/4"

LOCATING SCREW 961742

1шт.

10

K913846

PIN

LATCH PIN 961742

1шт.

11

K913436

SPRING

961742

1шт.

12

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

O' RING - latch pin 961742

1шт.

13

K907061

BUSHING

SPACER RING 961742

1шт.

14

K912859

NO LONGER SERVICED

OPERATING LEVER 961742

1шт.

15

K913724

DUST CAP

DIRT EXCLUDER 961742

1шт.

16

K966031

RING, SNAP

CIRCLIP 961742

10шт.

17

K600815

BOLT

1/2 UNC x 3 1/4 in. 961741

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , UNC, 961741 1/2"-13, G5

2шт.

K626555

WASHER

LOCKWASHER, 1/2 in. 961741

2шт.

18

K907502

PISTON

AND INSERT

1шт.

19

252734R1

O-RING,0.21" Thk x 2.725" ID, -335, Cl 5, 75 Duro

O' RING - piston

1шт.

20

K628050

RING,69.6mm ID x 79.65mm OD x 2.64mm Thk

ANTI-EXTRUSION RING

1шт.

21

K910106

ROD

CONNECTING ROD

1шт.

22

16-1643

PIN

SPRING PIN

1шт.

23

K912013

BEARING HALF,50.22mm ID x 54.52mm OD x 30.63mm W

BEARING (halves)

2шт.

24

K912012

BUSHING

BUSH

1шт.

25

K623538

O-RING,6.99mm Thk x 50.16mm ID, 60 Duro

O' RING - rockshaft sealing

1шт.

26

K30061

COVER

SEALING DISC

1шт.

27

K910104

SCREW

BLEEDER SCREW

1шт.

211-1010

BALL,5/16" OD

5/16 in.

1шт.

28

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

Cylinder body -241, 70 Duro, 3.859" ID x .139" Thk

1шт.

29

K913141

GASKET

1шт.

30

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2 UNC x 5 in.

2шт.

K626555

WASHER

LOCKWASHER, 1/2 in.

2шт.

31

K601274

BOLT

5/8 UNC x 12 1/2 in.

2шт.

3045118R1

SEAL

ING WASHER, 5/8 in.

2шт.

493-41065

LOCK WASHER,Ext Tooth, 5/8"

SHAKEPROOF WASHER, 5/8 in.

10шт.

425-1010

NUT,5/8"-11, G5

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

K913669

FLOW CONTROL VALVE ASSEMBLY

1шт.

32

K913670

BODY 913669

1шт.

33

K913001

SPOOL 913669

1шт.

34

K966697

SPRING

913669

10шт.

35

K621490

CIRCLIP 913669

1шт.

36

4902/20134

O-RING

O' RING -, Serial Range: connector-cylinder

1шт.

37

K910107

HYD CONNECTOR

CONNECTOR

1шт.

38

K619527

PLUG

1/2 UNF

1шт.

K15735

WASHER

1/2 in.

1шт.

39

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

O' RING - connector to pipe

1шт.

40

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3/8 UNC x 1 1/2 in.

4шт.

492-11038

LOCK WASHER,3/8"

4шт.
