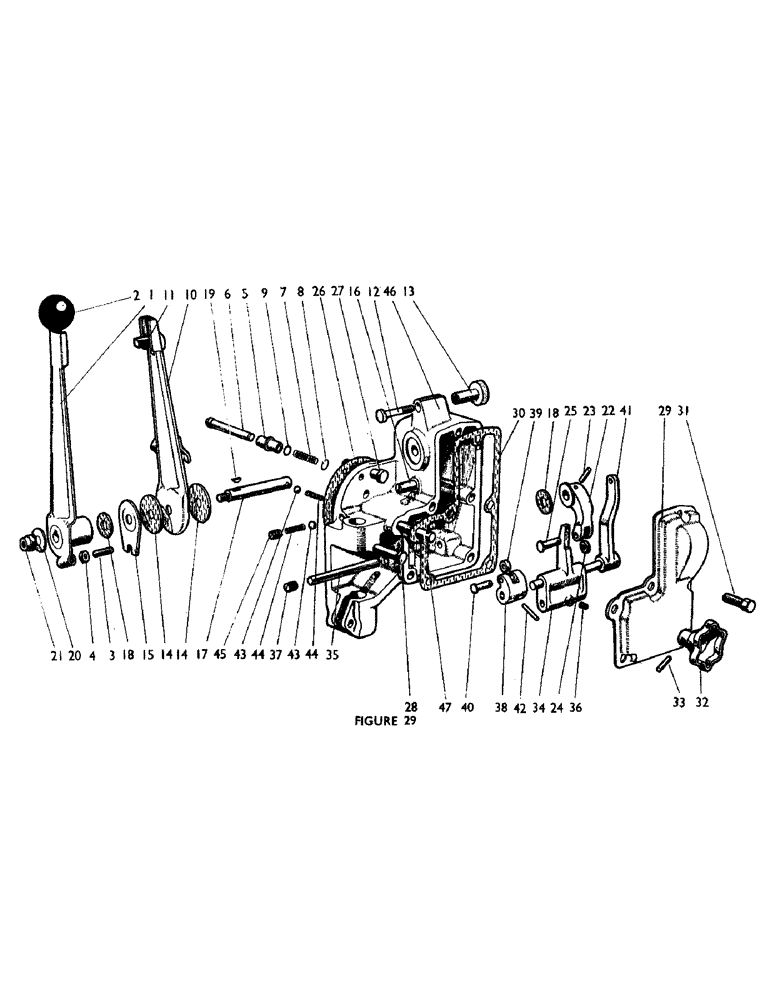

Запчасти Case IH 880UF (44) - HYDRAULIC CONTROLS (07) - HYDRAULIC SYSTEM

1

K909871

LEVER

CONTROL LEVER

1шт.

2

K902270

KNOB

1шт.

3

K903380

ADJUSTMENT SCREW,5/16" x 1 3/16"

GRUB SCREW

1шт.

4

K19441

NUT

LOCKNUT, 5/16 BSF

1шт.

5

K903436

INSERT

1шт.

6

K911999

PLUNGER

1шт.

7

107967A1

SPRING

1шт.

K626662

WASHER

1/4 in.

2шт.

8

A7111

SNAP RING,#25, Ext

CIRCLIP

1шт.

9

K625400

O-RING,0.07" Thk x 0.239" ID

O' RING

1шт.

10

K909869

SPARE PART

PRESET GUIDE

1шт.

11

K909866

LATCH STOP

1шт.

K909867

CLIP

SPRING CLIP

1шт.

K623736

MILLS PIN

1шт.

12

K903441

BOLT

SPECIAL BOLT

1шт.

13

K909728

NUT

HAND NUT

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

14

K903019

GASKET

FRICTION DISC

2шт.

15

K903020

PLATE

RESTRAINING PLATE

1шт.

16

K908210

NO LONGER SERVICED

STOP

1шт.

17

K923280

SHAFT

- control lever

1шт.

18

K903018

WASHER

FRICTION WASHER

2шт.

19

K19603

KEY

Woodruff No. 305

1шт.

20

K626723

BELLEVILLE WASHER

BELLEVILLE WASHER

1шт.

21

87016560

JAM NUT,Jam, 3/8"-16, G5

LOCKNUT, 3/8 UNC

2шт.

22

K923280

SHAFT

ACTUATING LEVER

1шт.

23

K623733

PIN

MILLS PIN, 3/16 x 7/8 in.

1шт.

24

K903046

ROLLER

1шт.

25

K903045

PIN

1шт.

K626662

WASHER

1/4 in.

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

26

K903026

GASKET

(box to rear axle case)

1шт.

27

353680X1

SCREW

SETSCREW, 5/16 UNC x 1 1/8 in. (box to rear axle case)

2шт.

28

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

5/16 UNC x 3 in. (box to rear axle case)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (box to rear axle case) 5/16"

3шт.

29

K910823

COVER

1шт.

30

K910824

GASKET

- cover

1шт.

31

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SETSCREW, 5/16 UNC x 5/8 in.

5шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

32

K901698

NO LONGER SERVICED

HAND WHEEL - TCU valve

1шт.

33

38-1812

LOCK PIN,1/8" x 3/4", Slotted

SPRING DOWEL, 1/8 x 3/4 in.

1шт.

34

K903010

ROCKER LEVER

1шт.

35

K903014

PIVOT ASSY.

PIVOT PIN - rocker lever

1шт.

36

K966016

SCREW

LOCATING SCREW, 1/4 BSF

10шт.

37

K606070

GRUBSCREW, 7/16 UNC

2шт.

38

K903012

LEVER - plunger

1шт.

39

K903046

ROLLER

1шт.

40

K903045

PIN

1шт.

K626662

WASHER

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

41

K907905

OPERATING LEVER

1шт.

42

435-1514

GROOVED PIN,5/32" x 7/8", Type A

MILLS PIN, 5/32 x 7/8 in.

1шт.

43

211-1008

BALL,1/4" Dia

2шт.

44

K14367

SPRING

2шт.

45

81-3315

SET SCREW,5/16"-18 x 5/16", Slotted

GRUBSCREW

1шт.

46

K905684

CONTROL BOX

1шт.

47

K903025

ADJUSTING SPINDLE - TCU valve

1шт.
