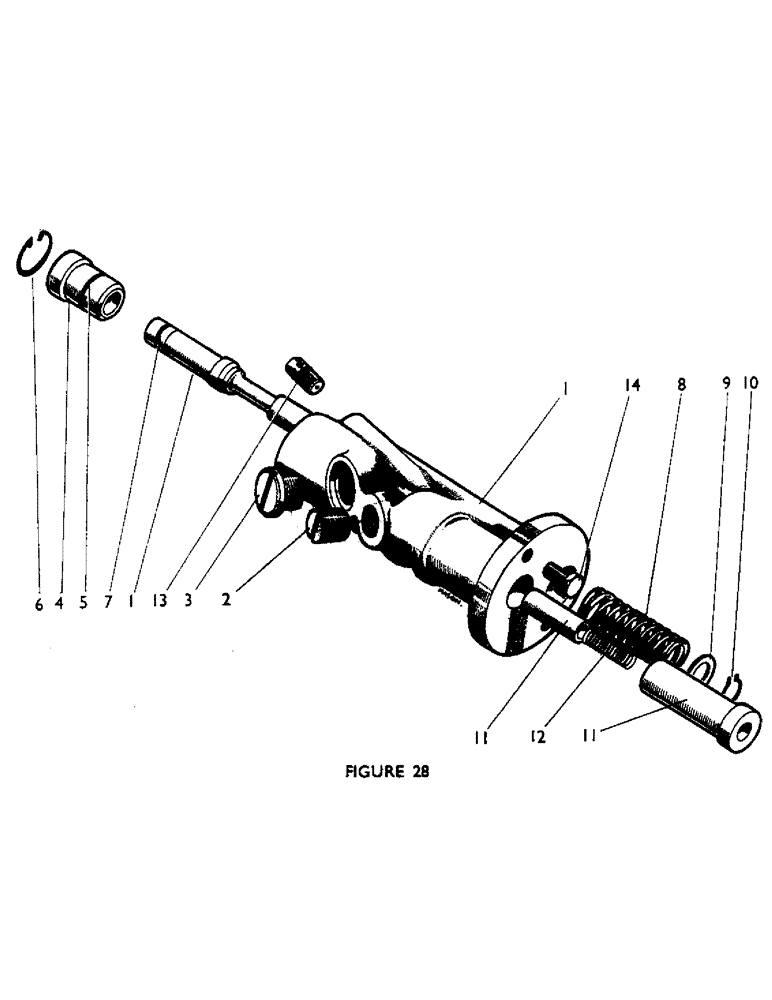

Запчасти Case IH 880UF (43) - DEPTH CONTROL VALVE (07) - HYDRAULIC SYSTEM

K961281

LOCK VALVE

VALVE BODY (complete with valve), Includes: Ref. 1 - 13

1шт.

1

K961282

LOCK VALVE

VALVE BODY AND SPINDLE (not supplied separately)

1шт.

2

K606480

STUD

GRUB SCREW, 5/8 UNC

1шт.

3

K609440

PLUG

- valve body

1шт.

K626780

WASHER

SEALING WASHER

1шт.

4

K902976

SLEEVE

1шт.

5

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk

1шт.

6

K14143

CIRCLIP, 7/8 in.

1шт.

7

K24554

O-RING

O' RING

1шт.

8

K625117

RETURN SPRING

1шт.

9

K902978

THRUST WASHER

1шт.

10

K15457

CIRCLIP, 7/16 in.

1шт.

11

K961028

SLEEVE CYLINDER

SLEEVE AND PLUNGER (not supplied separately)

1шт.

12

K625520

SPRING

1шт.

13

K907213

VALVE

RESTRICTOR VALVE

1шт.

14

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

SETSCREW, 5/16 UNC x 1 in. (valve body fixing)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (valve body fixing) 5/16"

2шт.
