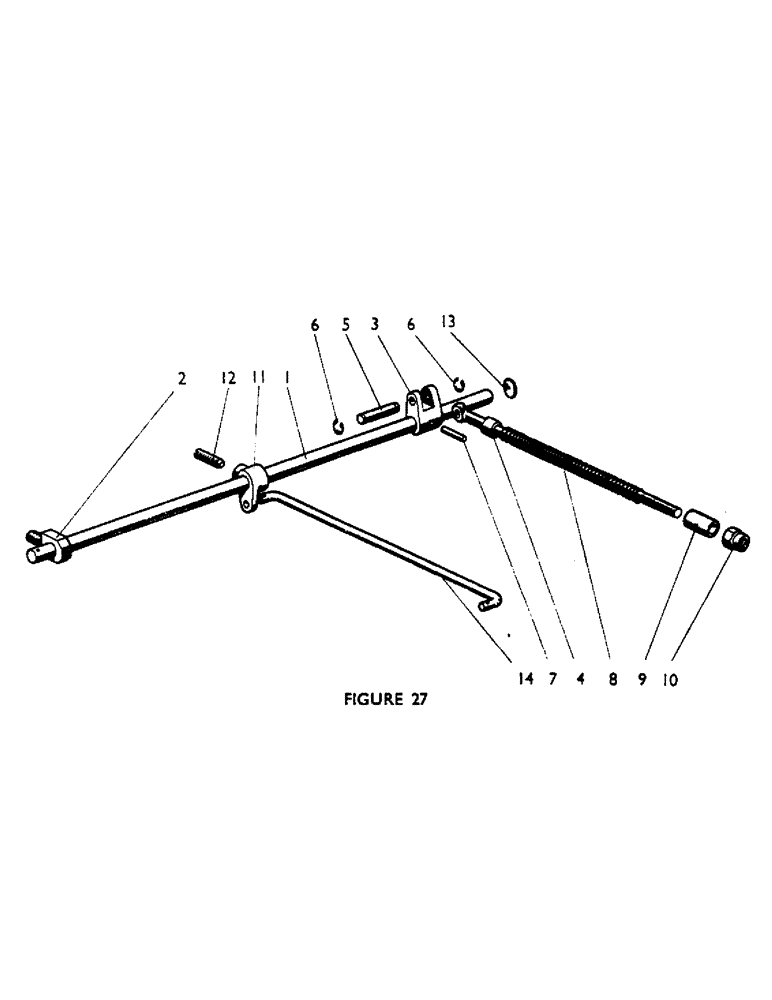

Запчасти Case IH 880UF (42) - CONTROLS, HYDRAULIC LIFT PUMP (07) - HYDRAULIC SYSTEM

1

K902991

CONTROL SHAFT

1шт.

2

K906001

SUPPORT

CONTROL SHAFT SUPPORT

1шт.

3

K904146

LEVER

AND THRUST BUTTON

1шт.

4

K903365

CONNECTING ROD

1шт.

5

K903373

NO LONGER SERVICED

PIN

1шт.

6

K621585

RING, SNAP

E' CLIP

2шт.

7

438-11214

LOCK PIN,4.76mm OD x 22.23mm L, Slotted

SPRING DOWEL PIN

1шт.

8

K625118

SPRING

1шт.

9

K903367

COLLAR

2шт.

10

K14420

NO LONGER SERVICED

NYLOC NUT, 5/16 BSF

1шт.

11

K902990

OPERATING LEVER

1шт.

12

K30111

LOCATING SCREW

1шт.

K966750

WASHER

SPECIAL WASHER, 1/2 in.

20шт.

80755

COTTER PIN,1/8" OD x 1" L

SPLIT PIN, 1/8 x 3/4 in.

2шт.

13

172529

PLUG

WELCH PLUG, 5/8 in.

1шт.

K19441

NUT

LOCKNUT, 5/16 BSF

1шт.

14

K902989

OPERATING ROD - pump

1шт.

K626662

WASHER

1/4 in.

2шт.

432-48

COTTER PIN,1/16" x 1/2"

SPLIT PIN, 1/16 x 3/8 in.

2шт.
