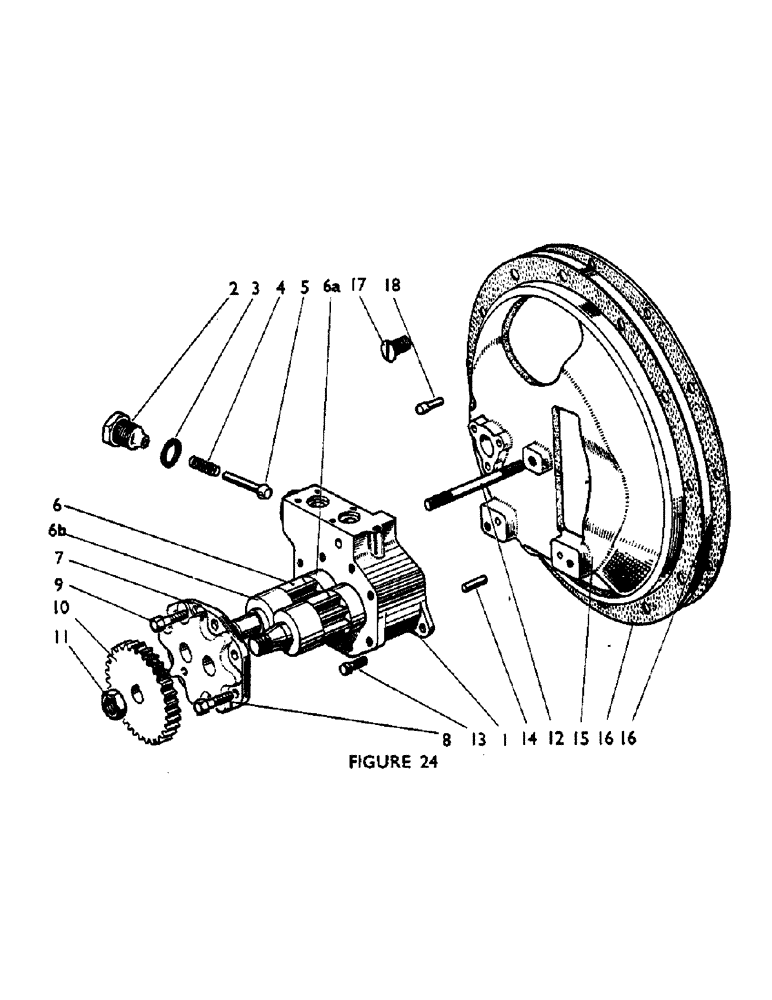

Запчасти Case IH 880UF (38) - HYDRAULIC LIFT PUMP (07) - HYDRAULIC SYSTEM

K961023

PUMP

HYDRAULIC PUMP (with valve housing and gear)

1шт.

K917695

PUMP

HYDRAULIC PUMP only, Includes: Ref. 1 - 9

1шт.

1

K903208

PUMP

BODY

1шт.

2

K903096

PLUG

- valve chamber

1шт.

3

K903097

GASKET

BONDED SEAL

1шт.

4

K903098

SPRING

1шт.

5

K903099

VALVE POPPET

POPPET - non-return valve

1шт.

6

K961694

ROTOR

PACK, Includes: Ref. 6A - 6C

1шт.

6a

K961728

ROTOR

BUSH (pair)

1шт.

6b

K961729

ROTOR

BUSH (pair)

1шт.

6c

K960648

O-RING

O' RING

2шт.

7

K903209

PLATE

END PLATE

1шт.

8

414-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

3/8 UNF x 1 1/8 in.

6шт.

9

414-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

3/8 UNF x 1 in.

2шт.

10

K913380

GEAR

DRIVEN GEAR

1шт.

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

(No. 505) #6, 5/32" x 5/8"

1шт.

11

425-158

JAM NUT,Jam, 1/2"-20, G5

1/2 UNF

1шт.

K913552

WASHER

TAB WASHER

1шт.

12

K608221

STUD

3/8 UNC x 3 11/16 in. (pump to back plate)

1шт.

13

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW, 3/8 UNC x 1 1/8 in. (pump to back plate)

2шт.

492-11038

LOCK WASHER,3/8"

(pump to back plate) 3/8"

3шт.

425-106

NUT,3/8"-16, Cl 5

(Pump to back plate) 3/8"-16, G5

1шт.

14

K966272

PIN

DOWEL (pump to back plate)

20шт.

15

K905667

SUPPORT

PLATE

1шт.

16

K262831

GASKET

2шт.

17

K605157

SCREW

7/16 UNC x 1 1/8 in.

1шт.

18

K24827

PIN

HEADED DOWEL, 7/16 x 1 3/4 in.

1шт.
