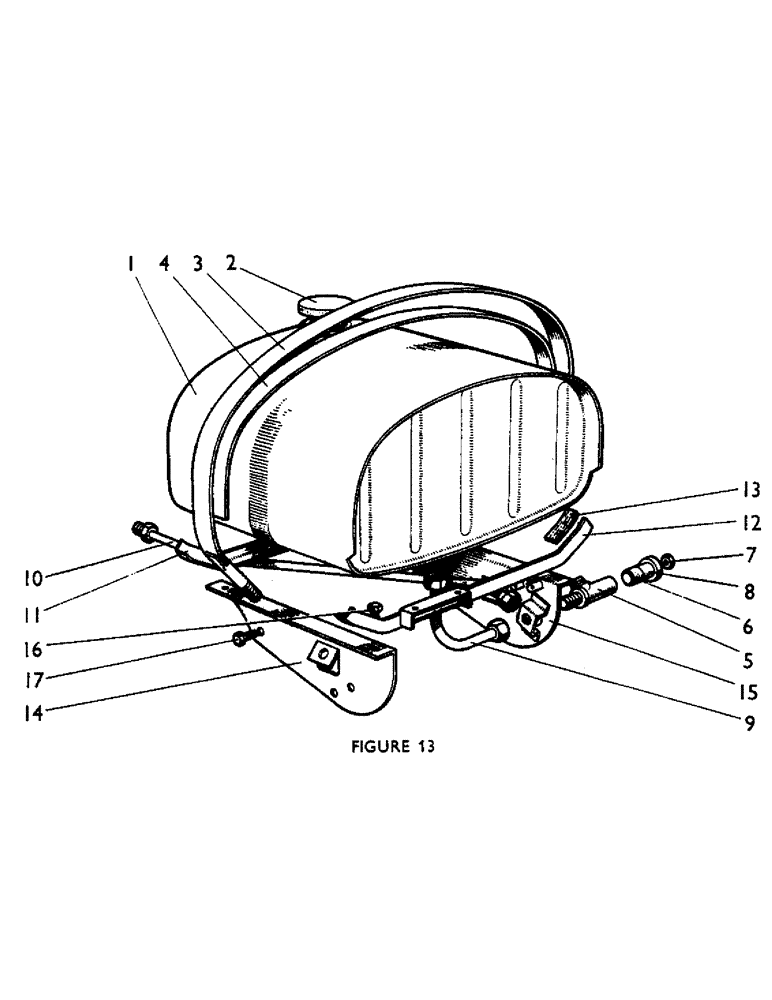

Запчасти Case IH 880UF (21) - FUEL TANK AND FITTINGS (01) - ENGINE

1

K912203

SPARE PART

FUEL TANK

1шт.

2

K304590

CAP

FILLER CAP

1шт.

3

K912210

STRAP

1шт.

4

K17721

PAD

- tank strap

1шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

5

K909938

FAUCET

FUEL TAP, Includes: Ref. 6 - 8

1шт.

6

K961668

WASHER

SEALING CORK

1шт.

7

K961669

NUT

LOCKNUT, special

1шт.

K961670

SET

SCREW - spindle retaining

1шт.

8

K909938

FAUCET

KNOB, cork and spindle

1шт.

9

K915204

PIPE

FUEL PIPE -, Serial Range: tank-tap

1шт.

10

K924121

HOSE

FUEL PIPE - tap to feed pump

1шт.

11

K913194

BRACKET

TANK SUPPORT - front

1шт.

12

K913195

BRACKET

TANK SUPPORT - rear

1шт.

13

K89449

PAD

SEATING PAD

4шт.

14

K912208

SUPPORT BRACKET - left-hand

1шт.

15

K913196

SUPPORT

BRACKET - right-hand

1шт.

16

K966398

SCREW

SETSCREW, 1/4 UNC x 5/8 in., Serial Range: (supports-brackets)

40шт.

K607000

NUT

1/4 UNC, Serial Range: (supports-brackets)

4шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in., Serial Range: (supports-brackets)

4шт.

K626662

WASHER

1/4 in., Serial Range: (supports-brackets)

4шт.

17

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

SETSCREW, 3/8 UNC x 3/4 in. (Brackets to frame)

4шт.

492-11038

LOCK WASHER,3/8"

(brackets to frame) 3/8"

4шт.
