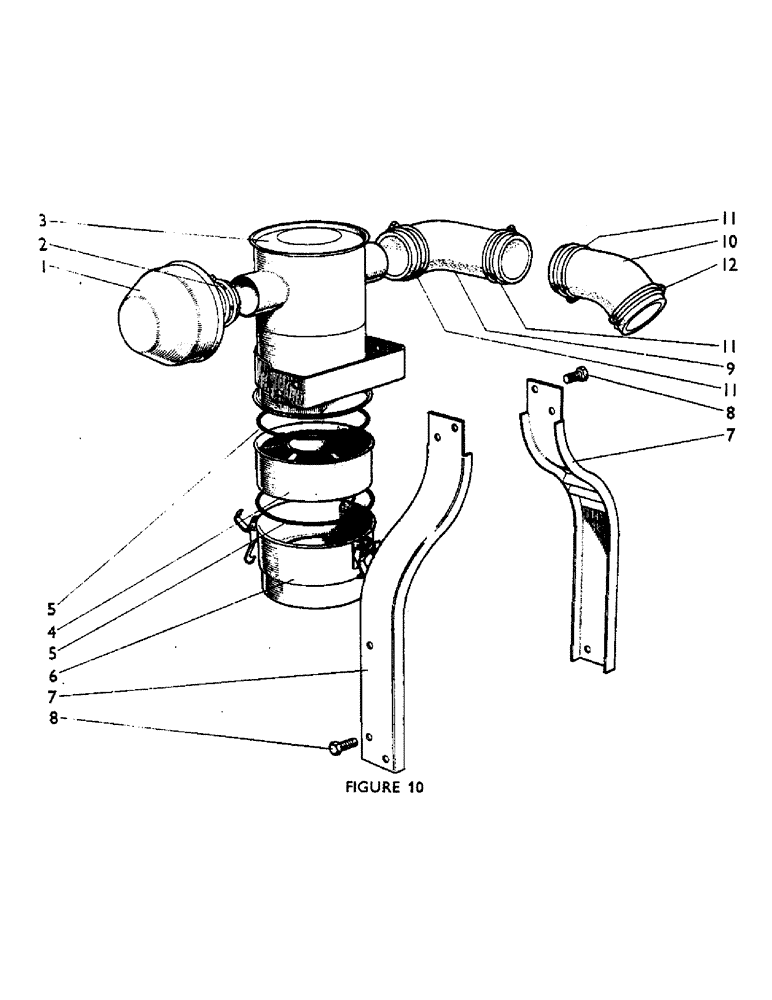

Запчасти Case IH 880UF (18) - AIR CLEANER (01) - ENGINE

1

K912683

PRE-CLEANER

1шт.

2

K13079

NO LONGER SERVICED

HOSE CLIP, 2 in. dia.

1шт.

3

K912682

CLEANER ASSY.

AIR CLEANER, Includes: Ref. 4 - 6

1шт.

4

K961738

PATCH

LOWER ELEMENT

1шт.

5

K961739

SEAL

ING RING

2шт.

6

K961740

BOWL (with toggle clips)

1шт.

7

K908976

SUPPORT BRACKET

2шт.

8

K602883

SCREW,5/16" - 18 x 3/4", Gr V

SETSCREW, 5/16 UNC x 3/4 in., Serial Range: (cleaner-brackets)

8шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (cleaner to brackets) 5/16"

8шт.

9635082

NUT,5/16" - 18, Gr 5

(Cleaner to brackets) 5/16"-18, G5

8шт.

9

K912040

PIPE - air, Serial Range: cleaner-radiator

1шт.

10

K912041

HOSE

PIPE - radiator to inlet manifold

1шт.

11

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

HOSE CLIP, 2 1/4 in. dia.

3шт.

12

K13083

NO LONGER SERVICED

HOSE CLIP, 2 1/2 in. dia.

1шт.

K917151

PRODUCT GRAPHIC

TRANSFER - air cleaner

1шт.

K917425

PRODUCT GRAPHIC

TRANSFER - "Negative Earth"

1шт.
