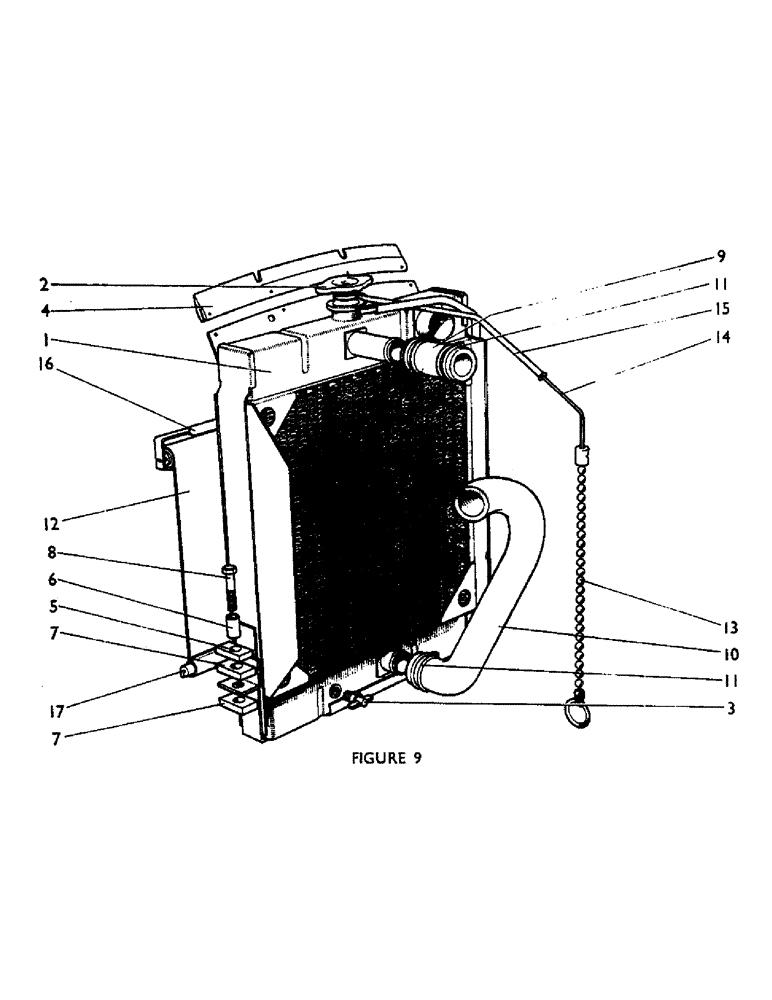

Запчасти Case IH 880UF (17) - RADIATOR AND BLIND (01) - ENGINE

1

K914319

RADIATOR

80 mm. block

1шт.

2

K906196

CAP

FILLER CAP

1шт.

3

K622060

PLUG, DRAIN

DRAIN TAP

1шт.

K19501

WASHER

FIBRE WASHER

1шт.

4

K913100

STRIP

SEALING STRIP

1шт.

K966659

RIVET

1/8 x 1/2 in.

30шт.

5

K908822

NO LONGER SERVICED

CLAMPING PLATE

2шт.

6

K908823

TUBE,0.562" OD x 0.875" L

DISTANCE TUBE

2шт.

7

K921836

WEDGE

FOOT PACKING

4шт.

8

113-2248

PREV TORQUE BOLT,Locking, 3/8"-16 x 1 1/8", G8

BOLT, 3/8 UNC x 1 5/8 in.

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

9

K908312

FLEXIBLE HOSE

HOSE - radiator inlet

1шт.

10

K912039

HOSE

- radiator outlet

1шт.

11

K13078

BRACKET

HOSE CLIP, 1 7/8 in. dia.

4шт.

12

K908846

COVER

RADIATOR BLIND - U580 (911134) (optional equipment)

1шт.

13

K913185

BALL

CHAIN - U580 (911134) (optional equipment)

1шт.

14

K67196

ROPE

CONTROL CORD - U580 (911134) (optional equipment)

1шт.

15

K912910

TUBE

- control cord - U580 (911134) (optional equipment)

1шт.

16

K64925

ROD

PULL ROD - U580 (911134) (optional equipment)

1шт.

17

K908859

ANCHOR - U580 (911134) (optional equipment)

1шт.
