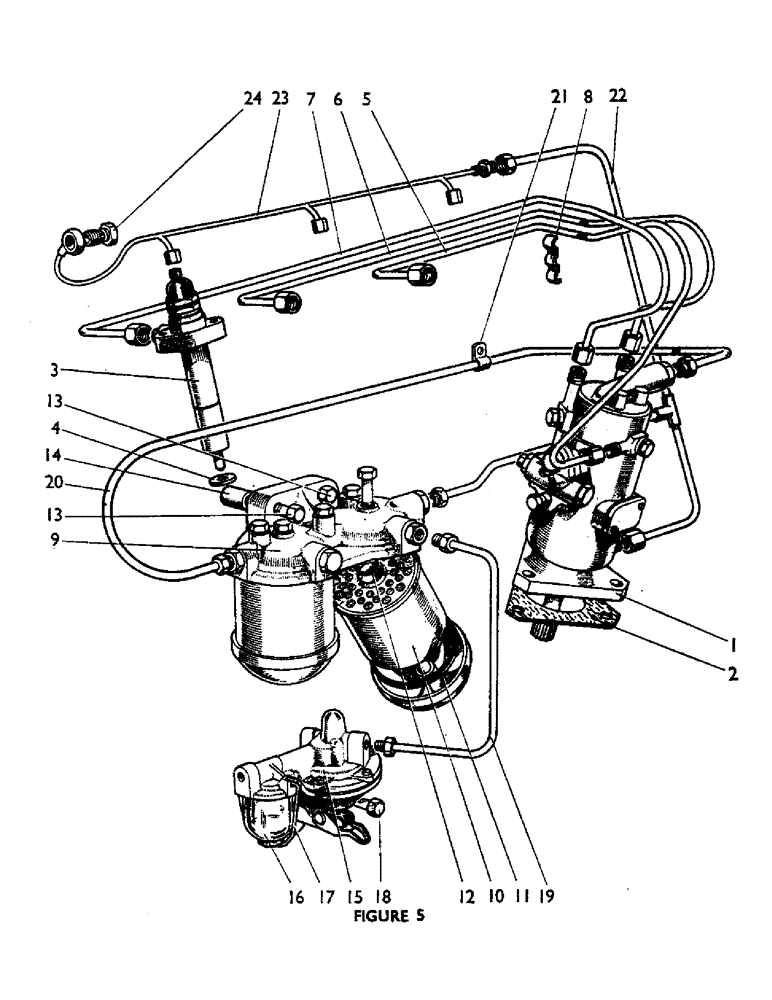

Запчасти Case IH 880UF (12) - INJECTION PUMP AND FUEL SYSTEM (01) - ENGINE

1

K907930

X

DISTRIBUTOR INJECTION PUMP (CAV 3232948)

1шт.

2

K966327

GASKET

10шт.

9635082

NUT,5/16" - 18, Gr 5

3шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

K626682

WASHER

5/16 in.

3шт.

3

K912804

NO LONGER SERVICED

INJECTOR, Includes: Ref. 3A - 4

3шт.

3a

K904261

NOZZLE CAP

HOLDER (CAV BKBL 97S5152)

1шт.

3b

K963848

NOZZLE INJECTION

NOZZLE (CAV BDLL 140S6445)

1шт.

4

F62390

WASHER,10mm ID x 21.01mm OD x 2.08mm Thk

COPPER WASHER

1шт.

5

K908162

PIPE

FUEL PIPE - injection pump to No. 1 cylinder

1шт.

6

K908164

PIPE

FUEL PIPE - injection pump to No. 2 cylinder

1шт.

7

K908166

PIPE

FUEL PIPE - injection pump to No. 3 cylinder

1шт.

K900845

NUT

UNION NUT - injector pipes

6шт.

K966961

FERRULE

OLIVE - injector pipes

60шт.

8

K908168

WASHER

CLIP (injector pipes)

2шт.

K262840

SCREW

2 BA x 5/8 in. (injector pipes)

2шт.

K966014

NUT

2 BA (injector pipes)

20шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, (3/16") (Injector pipes) #10

20шт.

9

K906708

FILTER

FUEL FILTER (complete), includes: Ref. 10 - 12

1шт.

10

W143287

CARTRIDGE

ELEMENT

2шт.

11

K960936

RING

SEALING WASHER (supplied with element)

4шт.

12

3044505R1

SEAL

O' RING - small

2шт.

13

K600409

BOLT

3/8 UNC x 2 1/8 in. (filter to cylinder block)

2шт.

492-11038

LOCK WASHER,3/8"

(filter to cylinder block) 3/8"

2шт.

14

K627041

BUSHING

DISTANCE PIECE (filter to cylinder block)

2шт.

15

K311938

FEED PUMP

FUEL FEED PUMP (AC-Delco E/FP63154/B), Includes: Ref. 15A - 17

1шт.

15a

K911917

DIAPHRAGM

1шт.

15b

K961732

FILTER

GAUZE

1шт.

16

K961733

BOWL

FILTER BOWL

1шт.

16a

K34065

SEAL

GASKET

1шт.

17

K961735

BRACKET

STIRRUP AND SCREW

1шт.

K902136

GASKET

(feed pump to cylinder block)

1шт.

18

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

SETSCREW, 5/16 UNC x 1 1/4 in. (feed pump to cylinder block)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (feed pump to cylinder block) 5/16"

2шт.

K911928

PUSH ROD,9.51mm OD x 35.99mm L

PUSH ROD - feed pump

1шт.

19

K908169

PIPE,0.25" OD x 5.594, 1.641" L

FUEL PIPE - feed pump to filter

1шт.

20

K908171

PIPE,0.25" OD

FUEL PIPE - filter to injection pump

1шт.

21

K621619

CLIP

- fuel pipes

2шт.

22

K204094

PIPE

FUEL PIPE - filter to leak-off pipe

1шт.

23

K912306

PIPE

LEAK-OFF PIPE

1шт.

24

K620342

BANJO BOLT

BANJO BOLT

1шт.

A22317

WASHER

COPPER WASHER

2шт.
